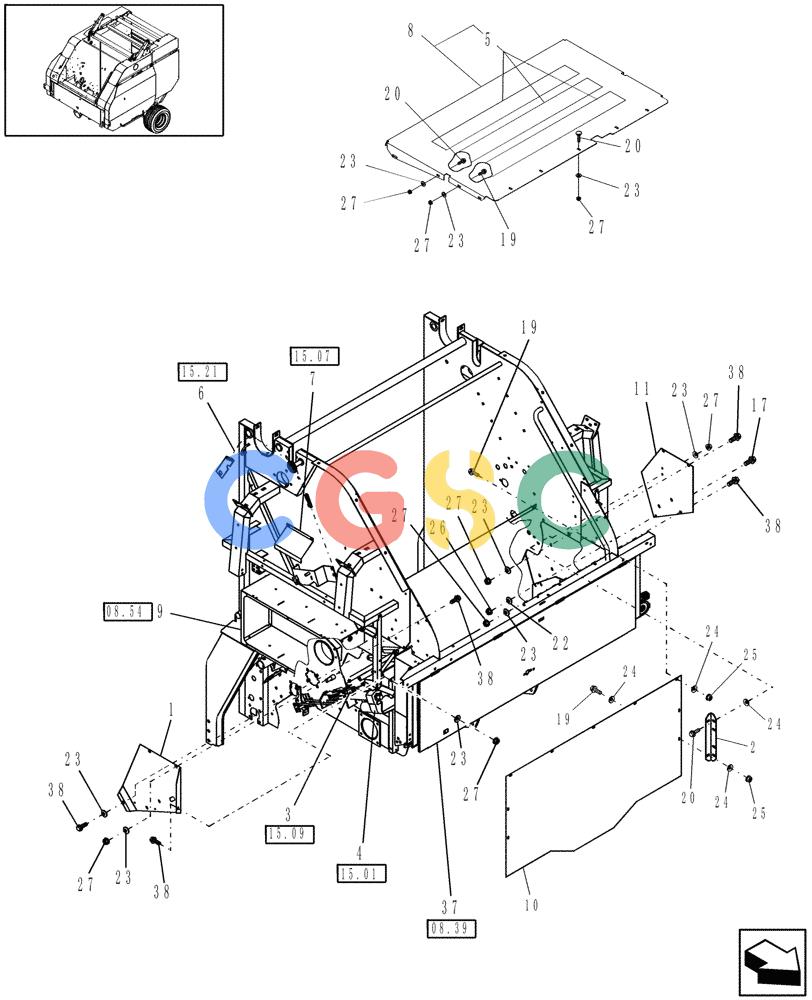

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (15.03[1]) - ELECTRIC TWINE WRAP, SHIELDS, NORTH AMERICA Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
87046080
|
[2] |
ANGLE
|
PA
RH
|
| 3. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Electric Twine Counter
|
| 5. |
86643977
|
[3] |
ANTI-SKID STRIP,4” x 40”, Black
|
NH
|
| 8. |
87017062
|
[1] |
FLOOR
|
PA
|
| 10. |
87041094
|
[1] |
SHIELD
|
PA
Rubber
|
| 19. |
844-8020
|
[12] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 20. |
811-8020
|
[13] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 23. |
322358
|
[16] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 24. |
495-21038
|
[16] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 25. |
86629542
|
[8] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 27. |
825-2408
|
[17] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 37. |
87638744
|
[1] |
DOOR
|
NH
Electric Wrap, North America, Includes: Decals.
|
