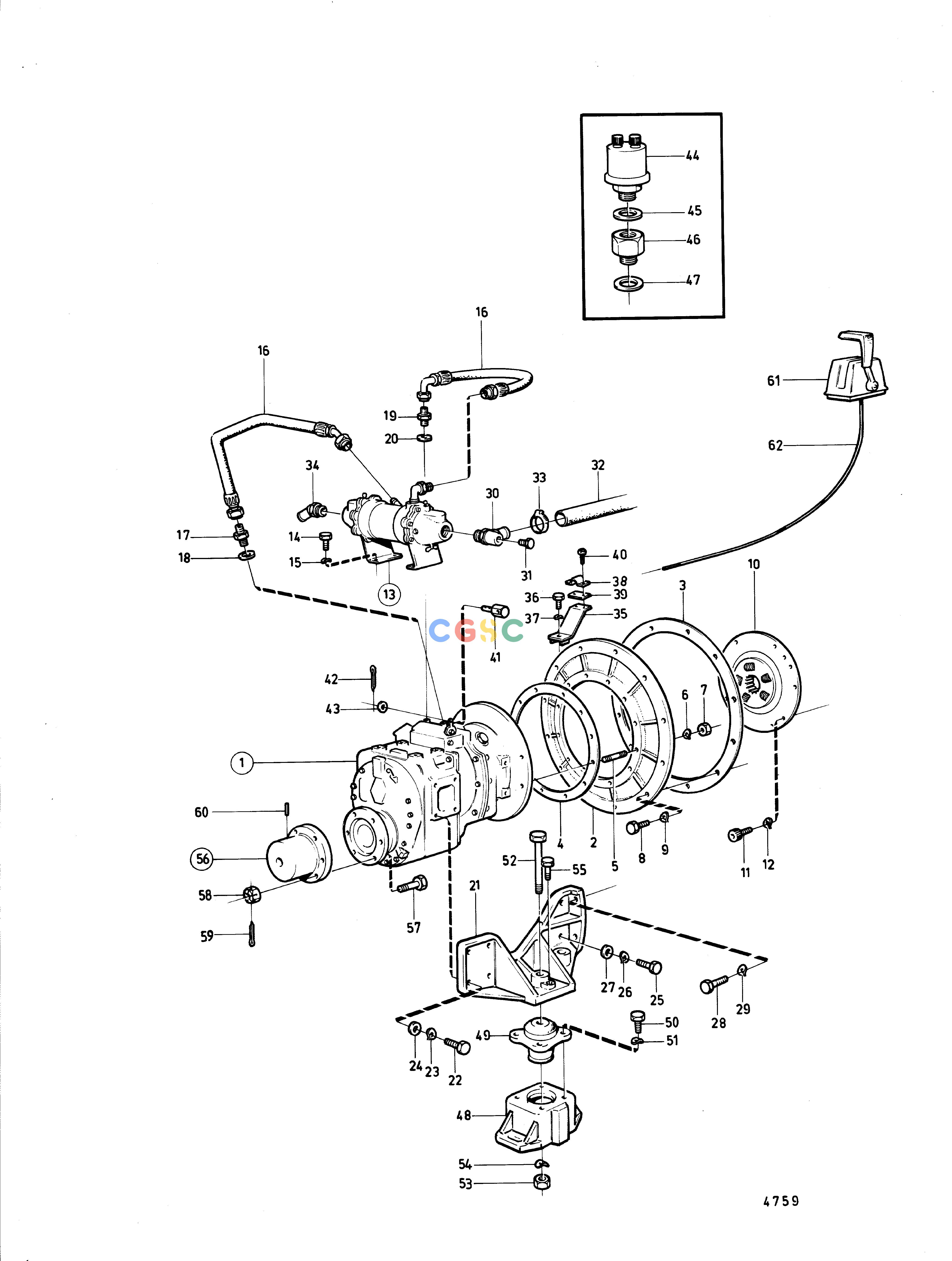

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsReverse Gear SCG MRF350 and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
671 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
896697
|
[1] |
Connector
|
|
| 3. |
862623
|
[1] |
Gasket
|
|
| 4. |
815247
|
[1] |
Gasket
|
|
| 5. |
953261
|
[12] |
Stud
|
|
| 6. |
942336
|
[12] |
Spring washer
|
|
| 7. |
955827
|
[12] |
Hexagon nut
|
|
| 8. |
955535
|
[7] |
Hexagon screw
|
L=32mm
|
| 8. |
955536
|
[1] |
Hexagon screw
|
L=45mm
|
| 9. |
942336
|
[8] |
Spring washer
|
|
| 10. |
843291
|
[1] |
Absorber
|
|
| 11. |
956582
|
[8] |
Hex. socket screw
|
|
| 12. |
942336
|
[8] |
Spring washer
|
|
| 13. |
843447
|
[1] |
Oil cooler
|
|
| 14. |
955534
|
[4] |
Hexagon screw
|
|
| 15. |
942336
|
[4] |
Spring washer
|
|
| 16. |
820968
|
[2] |
Hose
|
|
| 17. |
942418
|
[1] |
Nipple
|
|
| 18. |
957184
|
[1] |
Gasket
|
|
| 19. |
942363
|
[1] |
Fitting
|
|
| 20. |
18821
|
[1] |
Gasket
|
|
| 21. |
843437
|
[1] |
Engine bracket
|
S.B
|
| 21. |
843436
|
[1] |
Engine bracket
|
P
|
| 22. |
955562
|
[8] |
Hexagon screw
|
|
| 23. |
940280
|
[8] |
Spring washer
|
|
| 24. |
955898
|
[8] |
Washer
|
|
| 25. |
940134
|
[4] |
Hexagon screw
|
|
| 26. |
941909
|
[4] |
Spring washer
|
|
| 27. |
955896
|
[4] |
Washer
|
|
| 28. |
940162
|
[4] |
Hexagon screw
|
|
| 29. |
942336
|
[4] |
Spring washer
|
|
| 30. |
942335
|
[1] |
Hose attachment
|
|
| 31. |
192134
|
[1] |
Plug
|
|
| 32. |
13430
|
[1] |
Rubber hose
|
L=430mm
|
| 33. |
994560
|
[2] |
Hose clamp
|
|
| 34. |
836759
|
[1] |
Hose attachment
|
|
| 35. |
843508
|
[1] |
Bracket
|
|
| 36. |
940133
|
[1] |
Hexagon screw
|
|
| 37. |
942336
|
[1] |
Spring washer
|
|
| 38. |
21471054
|
[1] |
Bracket
|
|
| 39. |
819068
|
[1] |
Washer
|
|
| 40. |
950021
|
[2] |
Cross recessed screw
|
|
| 41. |
814082
|
[1] |
Cube
|
|
| 42. |
907834
|
[1] |
Split pin
|
|
| 43. |
940191
|
[1] |
Washer
|
|
| 44. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 45. |
957181
|
[1] |
Gasket
|
|
| 46. |
842714
|
[1] |
Nipple
|
|
| 47. |
957180
|
[1] |
Gasket
|
|
| 48. |
837716
|
[2] |
Anchorage
|
|
| 49. |
837826
|
[2] |
Rubber element
|
|
| 50. |
955317
|
[8] |
Hexagon screw
|
|
| 51. |
941908
|
[8] |
Spring washer
|
|
| 52. |
955378
|
[2] |
Hexagon screw
|
|
| 53. |
955785
|
[2] |
Hexagon nut
|
|
| 54. |
941912
|
[2] |
Spring washer
|
|
| 55. |
837717
|
[2] |
Screw
|
|
| 56. |
|
|
|
|
| 57. |
955696
|
[6] |
Hexagon screw
|
|
| 58. |
955883
|
[6] |
Castle nut
|
|
| 59. |
907834
|
[6] |
Split pin
|
|
| 60. |
17186
|
[1] |
Taper pin
|
|
| 61. |
|
|
|
See group 9
|
| 62. |
|
|
|
See group 9
|
