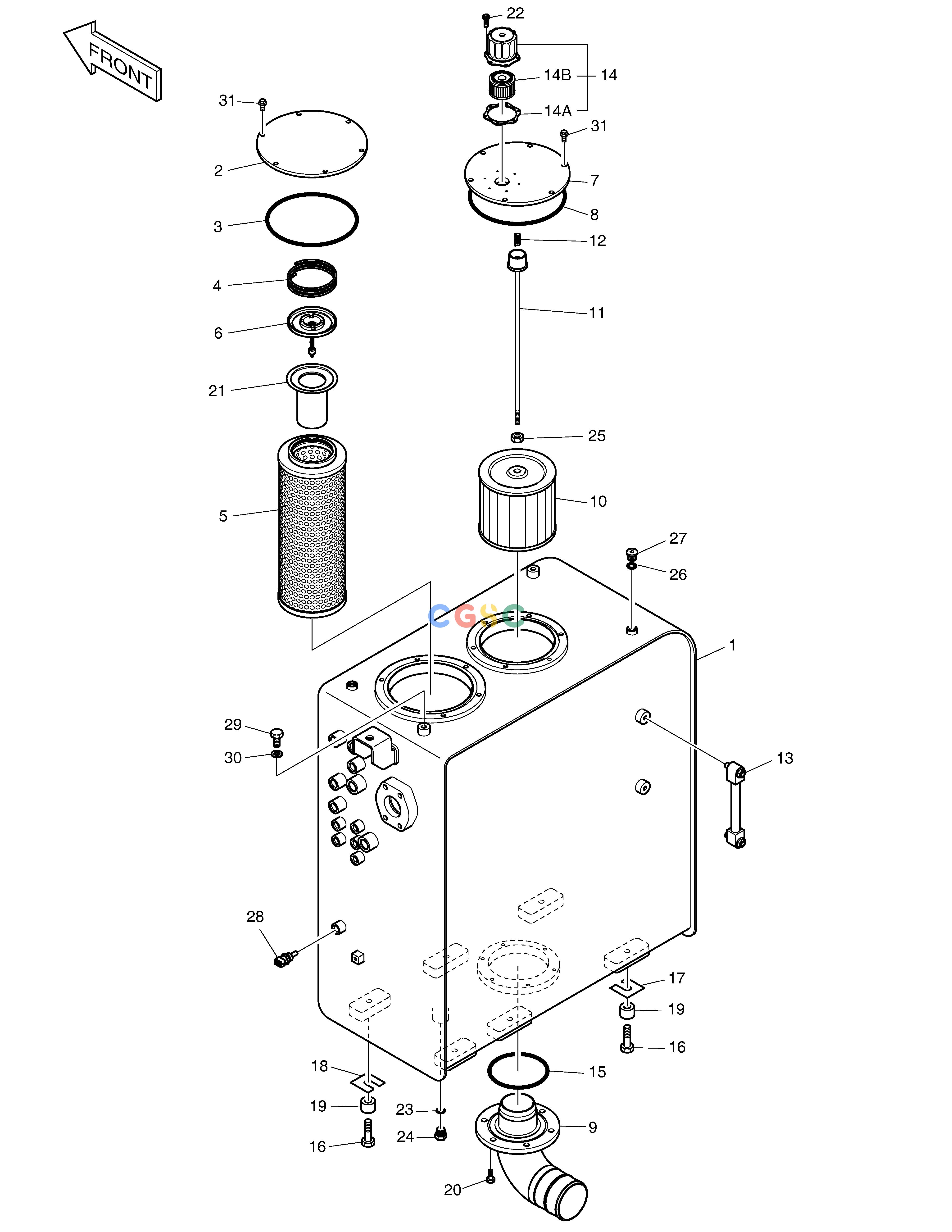

斗山零件查询OIL TANK DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
341 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045319
|
[-] |
OIL TANK ASS'Y
|
|
| -. |
450105-00412
|
[-] |
|
|
| 1. |
K1044950
|
[1] |
TANK;OIL
|
450105-00832
|
| 1. |
450105-00832
|
[1] |
|
|
| 10. |
2474-9016A
|
[1] |
FILTER,SUCTION
|
|
| 11. |
136-00002
|
[1] |
ROD
|
|
| 12. |
2129-1008
|
[1] |
SPRING,COMPRESS
|
|
| 13. |
119-00025B
|
[1] |
GAUGE,LEVEL
|
|
| 14. |
400811-00087
|
[1] |
BREATHER,AIR
|
|
| 14. |
K1012685A
|
[1] |
BREATHER;AIR
|
400811-00087
|
| 14A. |
K9005662
|
[1] |
. GASKET
|
|
| 14B. |
400504-00254
|
[1] |
. ELEMENT,AIR BREATHER
|
|
| 14B. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 15. |
S8011200
|
[1] |
O-RING
|
|
| 16. |
S0565466
|
[6] |
BOLT
|
|
| 17. |
2114-1813
|
[3] |
SHIM,0.8T
|
|
| 18. |
2114-1814
|
[3] |
SHIM,1.6T
|
|
| 19. |
114-00425
|
[6] |
SPACER
|
|
| 2. |
K1011675A
|
[1] |
COVER
|
|
| 20. |
DS0025024
|
[6] |
BOLT
|
|
| 21. |
400411-00001A
|
[1] |
STRAINER,BY-PASS
|
|
| 21. |
471-00127
|
[1] |
STRAINER;BY-PASS
|
400411-00001A
|
| 22. |
2120-2166D41
|
[6] |
BOLT
|
|
| 23. |
S8000181
|
[1] |
O-RING
|
|
| 24. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 25. |
S4012733
|
[1] |
NUT
|
|
| 26. |
S8000111
|
[2] |
O-RING
|
|
| 27. |
2181-1890D2
|
[2] |
PLUG
|
|
| 28. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 29. |
S0514666
|
[2] |
BOLT
|
|
| 3. |
S8011850
|
[1] |
O-RING
|
|
| 30. |
S5102703
|
[2] |
WASHER
|
|
| 31. |
K1007957
|
[12] |
. BOLT;SET
|
|
| 4. |
2129-1393
|
[1] |
SPRING
|
|
| 5. |
474-00055
|
[1] |
FILTER;RETURN
|
400504-00277
|
| 5. |
400504-00277
|
[1] |
|
|
| 6. |
2426-1175
|
[1] |
VALVE;BY-PASS
|
410128-00031
|
| 6. |
410128-00031
|
[1] |
VALVE,BY-PASS
|
|
| 7. |
473-00052
|
[1] |
COVER
|
|
| 8. |
S8011650
|
[1] |
O-RING
|
|
| 9. |
K1000269A
|
[1] |
PIPE;SUCTION
|
|
