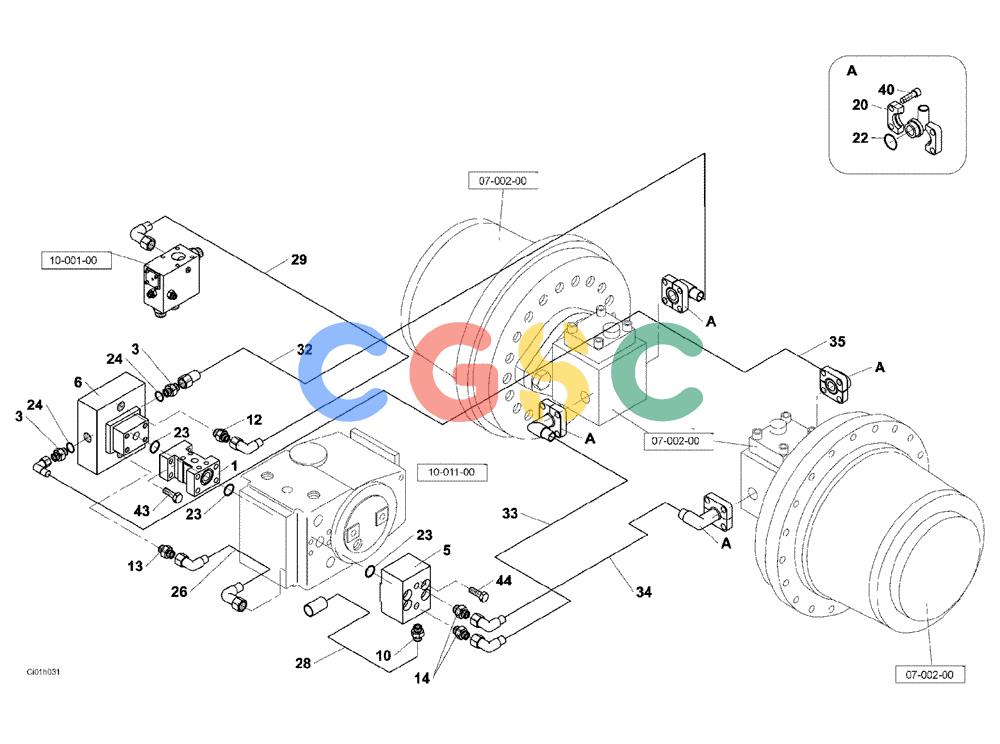

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (09-001-00[01]) - HYDRAULIC CIRCUIT,BRAKING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
114 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND031235 | [1] | BLOCK | STA |
| 3. | ND052874 | [2] | HYD CONNECTOR | STA |
| 5. | ND067793 | [1] | BLOCK | STA |
| 6. | ND090925 | [1] | VALVE | STA |
| 10. | ND062180 | [1] | HYD CONNECTOR | STA |
| 12. | ND062156 | [1] | HYD CONNECTOR | STA |
| 13. | ND062188 | [1] | HYD CONNECTOR | STA |
| 14. | ND062217 | [2] | HYD CONNECTOR | STA |
| 20. | ND062008 | [8] | HALF-COLLAR | STA |
| 22. | ND079933 | [4] | O-RING | STA |
| 23. | ND079934 | [3] | O-RING | STA |
| 24. | ND079939 | [2] | O-RING | STA |
| 26. | ND061937 | [1] | HOSE | STA |
| 28. | ND061389 | [1] | HOSE | STA |
| 29. | ND061943 | [1] | HOSE | STA |
| 32. | ND061916 | [1] | HOSE | STA |
| 33. | ND061915 | [1] | HOSE | STA |
| 34. | ND061917 | [1] | HOSE | STA |
| 35. | ND061913 | [1] | HOSE | STA |
| 40. | ND034059 | [16] | BOLT | STA |
| 43. | ND034063 | [8] | BOLT | STA |
| 44. | ND034064 | [4] | BOLT | STA |
