卡特零件查询（725） 150-8239: AXLE & FRAME AR
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 148-9965Y | [1] | AXLE AR-FRONT | |
| | 148-9959Y | [1] | CYLINDER & MTG GP-STEERING | |
| | 148-9961Y | [1] | CYLINDER & MTG GP-SUSPENSION | |
| | | | S/N AFX1-1000 |
| | 210-1886Y | [1] | CYLINDER & MTG GP-SUSPENSION | |
| | | | S/N AFX1001-UP |
| | 138-1462Y | [1] | FRAME GP-FRONT | |
| | 139-4720Y | [1] | GEAR GP-OUTPUT TRANSFER | |
| | | | S/N AFX1-427 |
| | 213-3925Y | [1] | GEAR GP-OUTPUT TRANSFER | |
| | | | S/N AFX428-UP |
| | 139-5321Y | [1] | LINES GP-COOLANT | |
| | 148-9963Y | [1] | LINES GP-GREASE(SUSPENSION) | |
| | 168-6867Y | [1] | LINES GP-SUSPENSION | |
| | 148-9962Y | [1] | MOUNTING GP-TRANSFER GEAR | |
| | | | S/N AFX1-1178 |
| | 250-1725Y | [1] | MOUNTING GP-TRANSFER GEAR | |
| | | | S/N AFX1179-UP |
| | 148-9964Y | [1] | SHAFT GP-FRONT DRIVE | |
| | 148-9960Y | [1] | WIRING GP-FRONT | |
| | | | S/N AFX1-1178 |
| | 229-9726Y | [1] | WIRING GP-MACHINE | |
| | | | S/N AFX1179-UP |

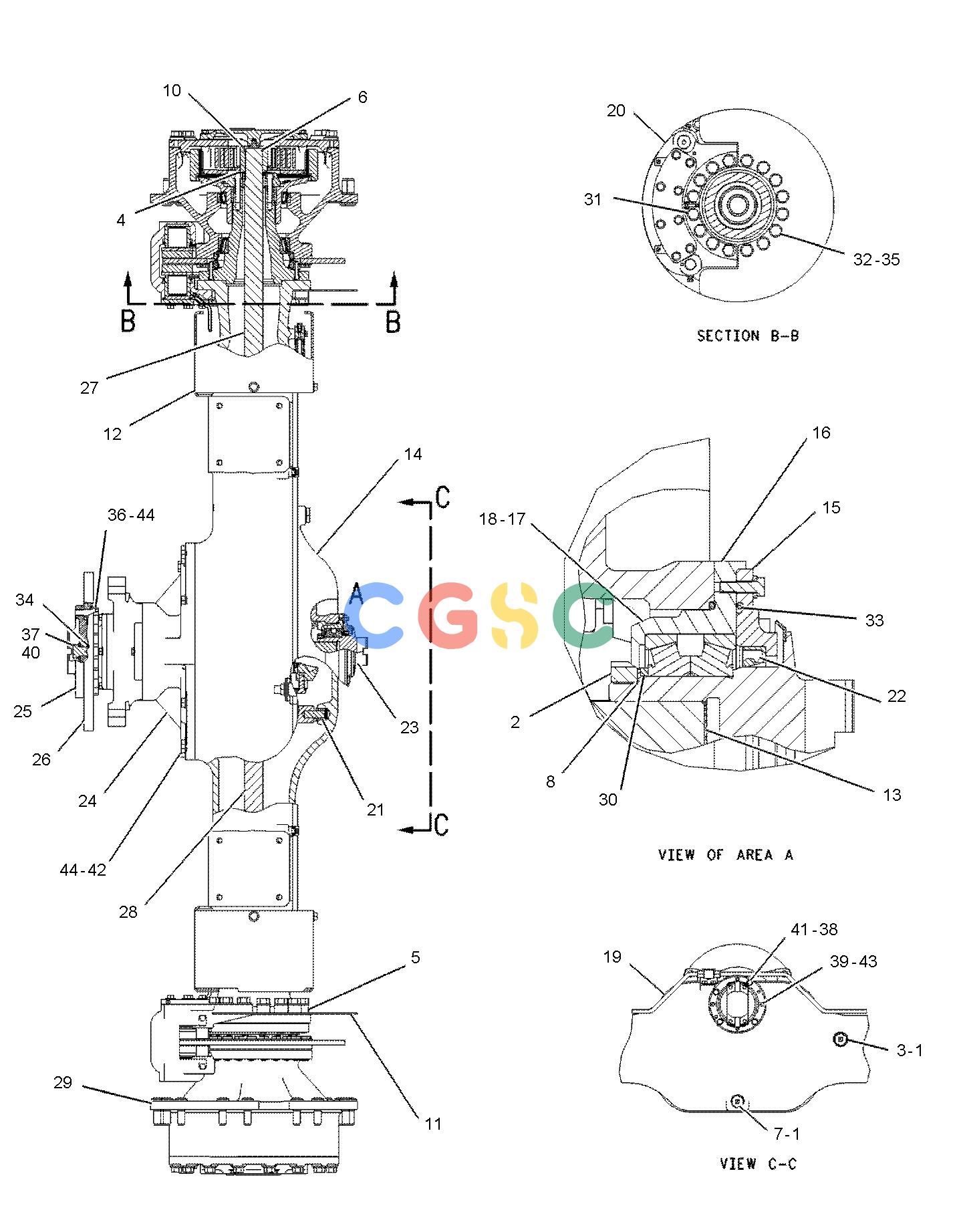

| | Y | | SEPARATE ILLUSTRATION |
