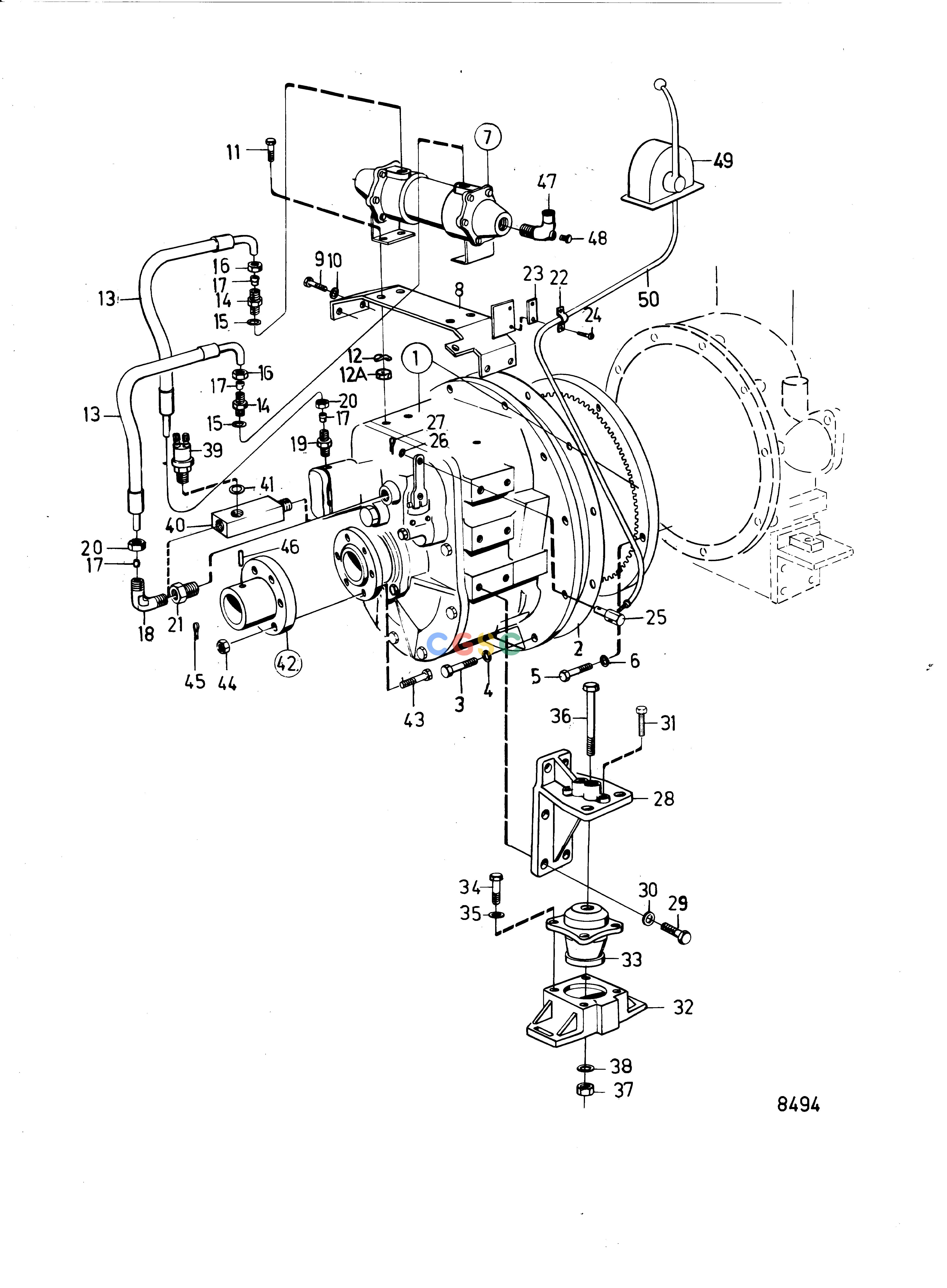

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsReverse Gear Twin Disc MG506 and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
862623
|
[1] |
Gasket
|
|
| 3. |
940115
|
[12] |
Hexagon screw
|
L=25mm
|
| 4. |
942336
|
[12] |
Spring washer
|
|
| 5. |
940162
|
[8] |
Hexagon screw
|
|
| 6. |
942336
|
[8] |
Spring washer
|
|
| 7. |
804472
|
[1] |
Oil cooler
|
|
| 8. |
837315
|
[1] |
Bracket
|
|
| 9. |
955560
|
[4] |
Hexagon screw
|
|
| 10. |
940280
|
[4] |
Spring washer
|
|
| 11. |
940113
|
[4] |
Hexagon screw
|
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 12A. |
955826
|
[4] |
Hexagon nut
|
|
| 13. |
837355
|
[2] |
Hose assembly
|
|
| 14. |
943755
|
[2] |
Fitting
|
|
| 15. |
957184
|
[2] |
Gasket
|
|
| 16. |
941331
|
[2] |
Fitting nut
|
|
| 17. |
956970
|
[4] |
Ferrule
|
|
| 18. |
941750
|
[2] |
Nipple
|
|
| 19. |
941750
|
[1] |
Nipple
|
|
| 20. |
956984
|
[2] |
Fitting nut
|
|
| 21. |
804533
|
[1] |
Nipple
|
|
| 22. |
21471054
|
[1] |
Bracket
|
|
| 23. |
819068
|
[1] |
Washer
|
|
| 24. |
950021
|
[2] |
Cross recessed screw
|
|
| 25. |
813674
|
[1] |
Cube
|
|
| 26. |
940191
|
[1] |
Washer
|
|
| 27. |
17276
|
[1] |
Split pin
|
|
| 28. |
837715
|
[2] |
Bracket
|
|
| 29. |
955561
|
[12] |
Hexagon screw
|
|
| 30. |
940280
|
[12] |
Spring washer
|
|
| 31. |
837717
|
[2] |
Screw
|
|
| 32. |
837716
|
[2] |
Anchorage
|
|
| 33. |
837826
|
[2] |
Rubber element
|
|
| 34. |
955317
|
[8] |
Hexagon screw
|
|
| 35. |
941908
|
[8] |
Spring washer
|
|
| 36. |
955378
|
[2] |
Hexagon screw
|
|
| 37. |
955785
|
[2] |
Hexagon nut
|
|
| 38. |
941912
|
[2] |
Spring washer
|
|
| 39. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 40. |
842425
|
[1] |
Nipple
|
|
| 41. |
957181
|
[1] |
Gasket
|
|
| 42. |
830737
|
[1] |
Clutch flange
|
|
| 42. |
837054
|
[1] |
Clutch flange
|
For ratio:3,8-4,5
|
| 43. |
955737
|
[6] |
Hexagon screw
|
|
| 43. |
955750
|
[6] |
Hexagon screw
|
For ratio:3,8-4,5
|
| 44. |
955886
|
[6] |
Castle nut
|
|
| 44. |
955887
|
[6] |
Castle nut
|
For ratio:3,8-4,5
|
| 45. |
907861
|
[6] |
Split pin
|
|
| 45. |
17178
|
[2] |
Taper pin
|
For ratio:3,8-4,5
|
| 46. |
907619
|
[1] |
Taper pin
|
|
| 47. |
942334
|
[1] |
Hose attachment
|
See group 2B
|
| 48. |
192134
|
[1] |
Plug
|
See group 2B
|
| 49. |
|
|
|
See group 9
|
| 50. |
|
|
|
See group 9
|
