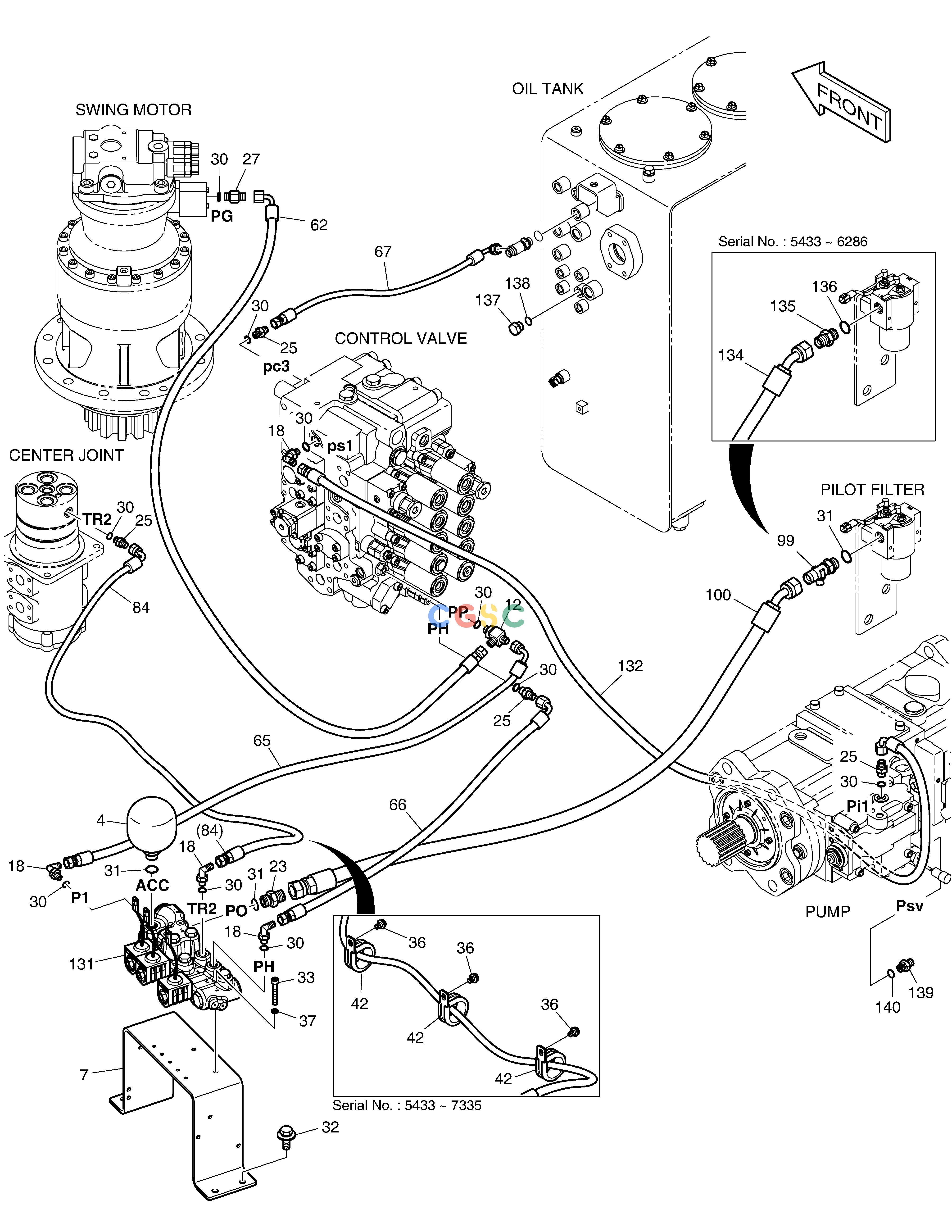

斗山零件查询PILOT PIPING(2) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044664A
|
[-] |
PILOT PIPING
|
|
| -. |
420212-10191
|
[-] |
|
|
| 100. |
2184-1060D70
|
[1] |
HOSE
|
|
| 100. |
DS2054342
|
[1] |
HOSE
|
|
| 12. |
K1038032
|
[1] |
TEE
|
|
| 131. |
K1047557
|
[1] |
VALVE;SOLENOID
|
|
| 132. |
DS2093181
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 132. |
2184-1046D187
|
[1] |
HOSE PF1/4-2600L
|
|
| 134. |
DS2054336
|
[1] |
HOSE
|
|
| 135. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 136. |
S8000181
|
[1] |
O-RING
|
|
| 137. |
2181-1950D1
|
[1] |
PLUG
|
|
| 138. |
S8000111
|
[1] |
O-RING
|
|
| 139. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 140. |
S8000111
|
[1] |
O-RING
|
|
| 18. |
2181-1702D4
|
[4] |
ELBOW
|
|
| 23. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 25. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 27. |
2181-1126D38
|
[1] |
ADAPTER
|
|
| 30. |
S8000111
|
[10] |
O-RING
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
|
| 31. |
S8000181
|
[3] |
O-RING
|
|
| 32. |
DS0025017
|
[4] |
BOLT
|
|
| 33. |
S2209666
|
[2] |
BOLT
|
|
| 36. |
K1001029
|
[3] |
BOLT
|
|
| 37. |
S5110503
|
[2] |
WASHER
|
|
| 4. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 42. |
124-00208D7
|
[3] |
CLIP
|
|
| 62. |
DS2093193
|
[1] |
HOSE
|
|
| 65. |
DS2093080
|
[1] |
HOSE
|
|
| 66. |
DS2093212
|
[1] |
HOSE
|
|
| 67. |
DS2093017
|
[1] |
HOSE
|
|
| 67. |
DS2154034
|
[1] |
|
|
| 7. |
K1039014A
|
[1] |
BRACKET
|
|
| 7. |
110406-02868
|
[1] |
|
110406-02868A
|
| 7. |
110406-02868A
|
[1] |
|
|
| 84. |
DS2093034
|
[1] |
HOSE
|
|
| 99. |
2181-1951D19
|
[1] |
TEE
|
|
