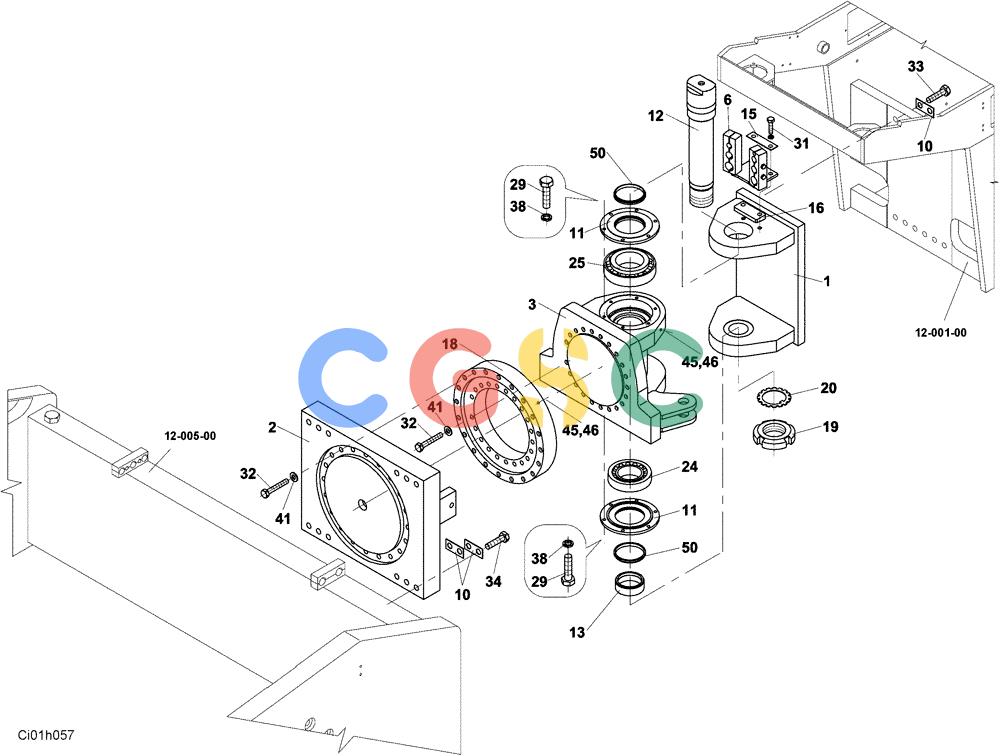

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (12-002-00[01]) - LINKAGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
495 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104653 | [1] | SUPPORT | STA |
| 2. | ND104655 | [1] | SUPPORT | STA |
| 3. | ND104654 | [1] | HUB | STA |
| 6. | ND104720 | [1] | HOLDER | STA |
| 10. | ND048878 | [14] | WASHER | STA |
| 11. | ND017515 | [2] | COVER | STA |
| 12. | ND017535 | [1] | PIN | STA |
| 13. | ND048794 | [1] | SPACER | STA |
| 15. | ND104769 | [1] | PLATE | STA |
| 16. | ND104762 | [1] | PLATE | STA |
| 18. | ND068766 | [1] | BEARING | STA |
| 19. | ND069121 | [1] | NUT | STA |
| 20. | ND029918 | [1] | WASHER | STA |
| 24. | ND069046 | [1] | BEARING | STA Superseded by part number: 87746863 |
| 25. | ND069047 | [1] | BEARING | STA Superseded by part number: 84160921 |
| 29. | ND021310 | [12] | BOLT | STA |
| 31. | ND021228 | [2] | BOLT | STA |
| 32. | ND021247 | [41] | BOLT | STA |
| 33. | ND021263 | [12] | BOLT | STA |
| 34. | ND021268 | [12] | BOLT | STA |
| 38. | ND029311 | [12] | WASHER | STA |
| 41. | ND029270 | [41] | WASHER | STA |
| 45. | ND070133 | [5] | LUBE NIPPLE,M10 x 1 | STA |
| 46. | ND064758 | [5] | PLUG | STA |
| 50. | ND079353 | [2] | SCRAPER | STA |
