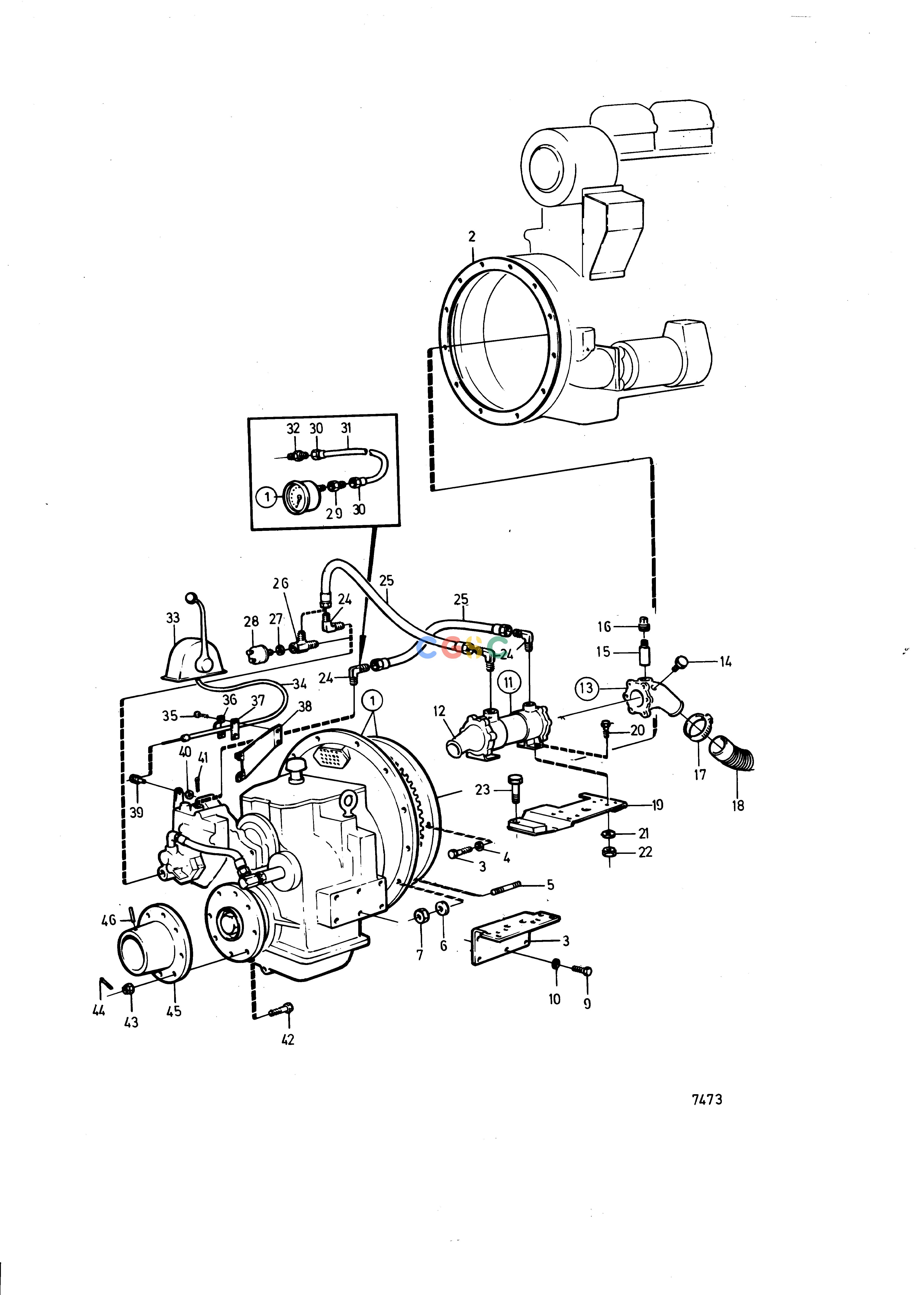

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsReverse Gear Twin Disc MG509 KC and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1018 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
862623
|
[1] |
Gasket
|
|
| 3. |
940162
|
[6] |
Hexagon screw
|
|
| 4. |
942336
|
[6] |
Spring washer
|
|
| 5. |
953486
|
[11] |
Stud
|
|
| 5. |
955536
|
[1] |
Hexagon screw
|
|
| 6. |
942336
|
[12] |
Spring washer
|
|
| 7. |
955827
|
[11] |
Hexagon nut
|
|
| 8. |
837098
|
[2] |
Bracket
|
|
| 9. |
955589
|
[10] |
Hexagon screw
|
|
| 10. |
941912
|
[10] |
Spring washer
|
|
| 11. |
837083
|
[1] |
Oil cooler
|
|
| 12. |
806580
|
[1] |
End plate
|
|
| 13. |
837129
|
[1] |
End cover
|
|
| 14. |
180759
|
[3] |
Plug
|
|
| 15. |
838929
|
[1] |
Anode
|
|
| 16. |
838928
|
[1] |
Plug
|
|
| 17. |
943479
|
[1] |
Hose clamp
|
|
| 18. |
343849
|
[1] |
Radiator hose
|
|
| 19. |
847020
|
[1] |
Bracket
|
|
| 20. |
940135
|
[4] |
Hexagon screw
|
|
| 21. |
941907
|
[4] |
Spring washer
|
|
| 22. |
955826
|
[4] |
Hexagon nut
|
|
| 23. |
955592
|
[2] |
Hexagon screw
|
|
| 24. |
837063
|
[4] |
Elbow union
|
|
| 25. |
848351
|
[2] |
Hose
|
L=770mm
|
| 26. |
842717
|
[1] |
Elbow union
|
|
| 27. |
947624
|
[1] |
Gasket
|
|
| 28. |
837781
|
[1] |
Oil pressure sensor
|
|
| 29. |
836064
|
[1] |
Nipple
|
|
| 30. |
954320
|
[2] |
Fitting nut
|
|
| 31. |
954303
|
[1] |
Tube
|
L=5000mm
|
| 32. |
954334
|
[1] |
Nipple
|
|
| 33. |
|
|
|
See group 9
|
| 34. |
|
|
|
See group 9
|
| 35. |
950021
|
[2] |
Cross recessed screw
|
|
| 36. |
21471054
|
[1] |
Bracket
|
|
| 37. |
819068
|
[1] |
Washer
|
|
| 38. |
836117
|
[1] |
Bracket
|
|
| 39. |
813674
|
[1] |
Cube
|
|
| 40. |
940191
|
[1] |
Washer
|
|
| 41. |
907824
|
[1] |
Split pin
|
|
| 42. |
955750
|
[6] |
Hexagon screw
|
For 837055
|
| 42. |
955772
|
[8] |
Screw
|
For 837093
|
| 43. |
955887
|
[6] |
Castle nut
|
For 837055
|
| 43. |
955889
|
[8] |
Castle nut
|
For 837093
|
| 44. |
907861
|
[6] |
Split pin
|
For 837055
|
| 44. |
907881
|
[8] |
Split pin
|
For 837093
|
| 45. |
837055
|
[1] |
Clutch flange
|
Opposite revolution in relation to engine., ,167) D1=30mm
|
| 45. |
837093
|
[1] |
Clutch flange
|
Opposite revolution in relation to engine., ,163) D1=60mm
|
| 46. |
17178
|
[2] |
Taper pin
|
For 837055
|
| 46. |
907661
|
[2] |
Taper pin
|
For 837093
|
| 46. |
|
|
|
See group 2A
|
