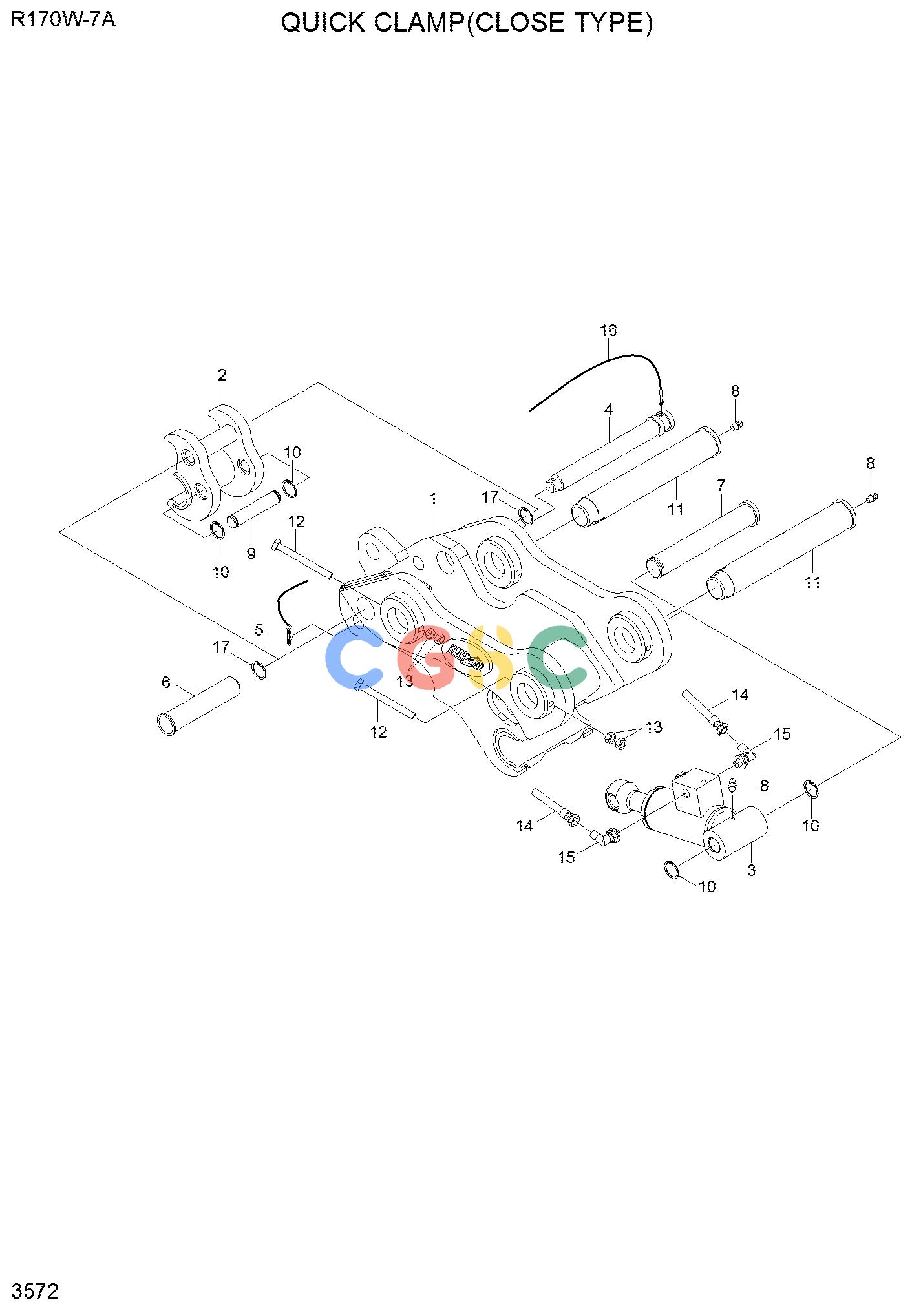

现代零件查询R170W-7 QUICK CLAMP(CLOSE TYPE, #0728-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
492 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N5-95820
|
[1] |
QUICK CLAMP ASSY
|
|
| 1. |
XKBN-00317
|
[1] |
BODY
|
|
| 2. |
XKBN-00102
|
[1] |
HITCH
|
|
| 4. |
XKBN-00104
|
[1] |
PIN-SAFETY
|
|
| 5. |
XKBN-00163
|
[1] |
PIN-SNAP
|
|
| 6. |
XKBN-00314
|
[1] |
PIN-HITCH
|
|
| 7. |
XKBN-00315
|
[2] |
PIN-FRAME
|
|
| 8. |
XKBN-00009
|
[3] |
NIPPLE-GREASE
|
|
| 9. |
XKBN-00108
|
[1] |
PIN-CYLINDER
|
|
| 10. |
XKBN-00109
|
[4] |
RING-SNAP
|
|
| 11. |
XKBN-00110
|
[2] |
PIN-BRACKET
|
|
| 12. |
XKBN-00205
|
[2] |
BOLT-HEX
|
|
| 13. |
XKBN-00196
|
[4] |
NUT-HEX
|
|
| 14. |
XKBN-00112
|
[2] |
HOSE-PROTECTOR
|
|
| 15. |
XKBN-00016
|
[2] |
ELBOW-90
|
|
| 16. |
XKBN-00083
|
[1] |
WIRE ASSY
|
|
| 17. |
XKBN-00206
|
[2] |
RING-SNAP
|
|
