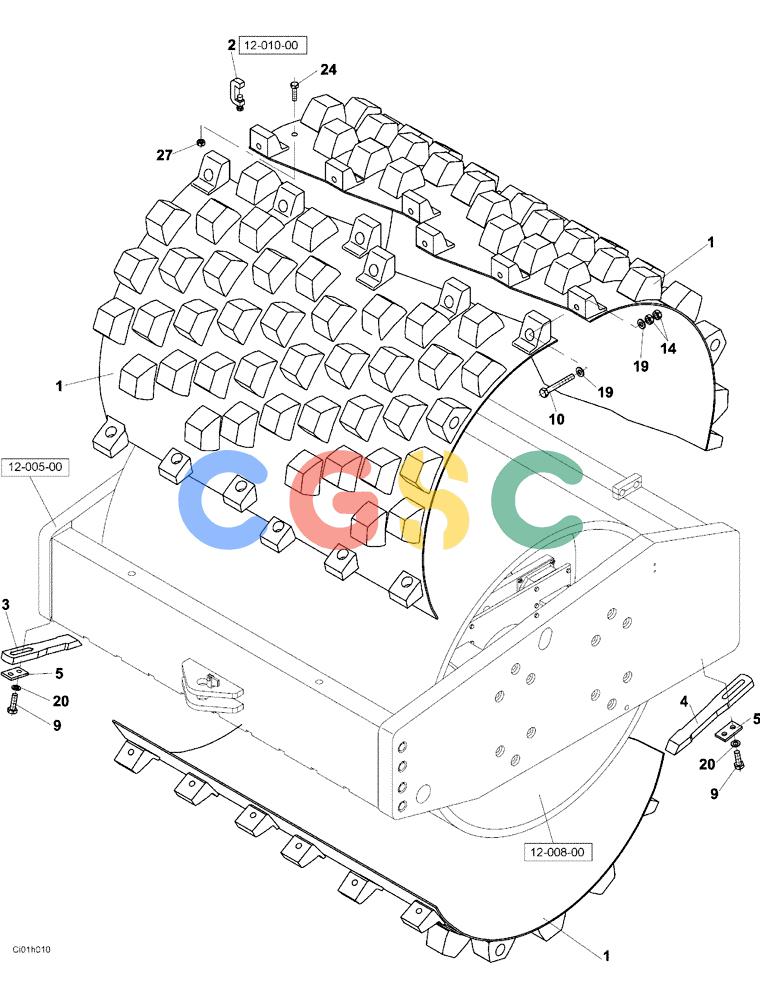

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (12-009-00[01]) - ADAPTING THE DRUM FOR TAMPING COMPACTION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
283 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND011115 | [3] | SHELL | STA |
| 2. | ND049350 | [8] | CLAMP | STA |
| 3. | ND104743 | [9] | SKID/SHOE | STA |
| 4. | ND104744 | [9] | SKID/SHOE | STA |
| 5. | ND048922 | [8] | WASHER | STA |
| 9. | ND021263 | [16] | BOLT | STA |
| 10. | ND021270 | [18] | BOLT | STA |
| 14. | ND021854 | [36] | NUT | STA |
| 19. | ND029257 | [36] | WASHER | STA |
| 20. | ND090753 | [16] | WASHER | STA Superseded by part number: ND035946 |
| 24. | ND021245 | [2] | BOLT | STA |
| 27. | ND027305 | [2] | NUT | STA |
