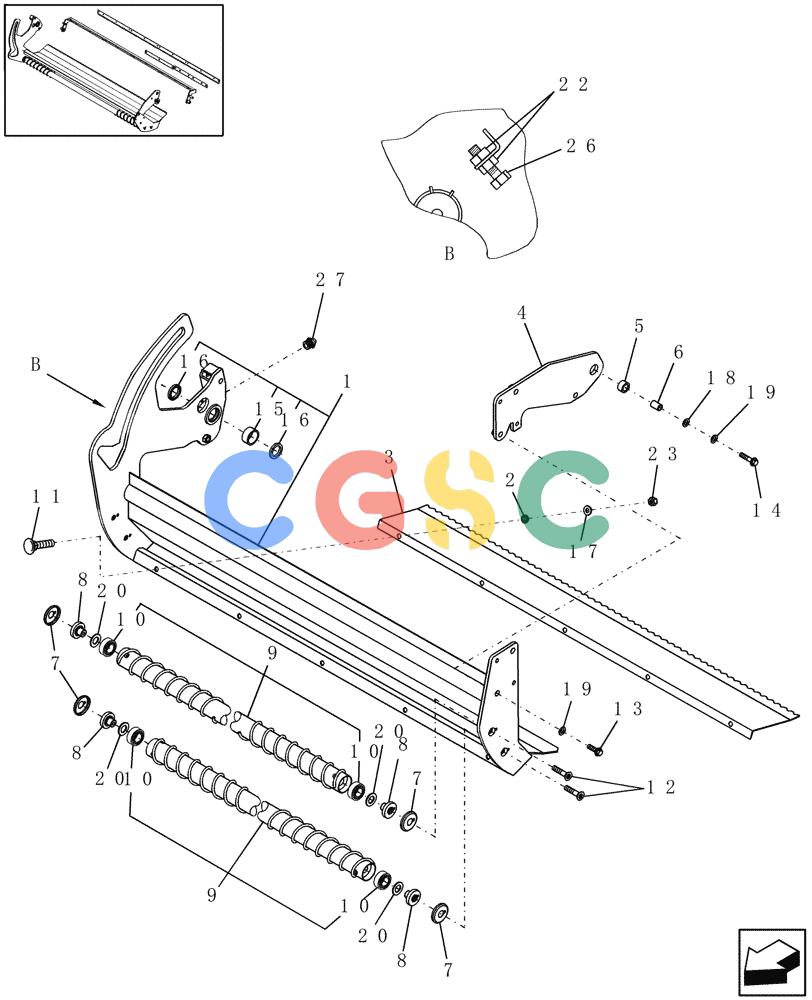

| 1. |
86628023
|
[1] |
GUIDE
|
NH
Duckbill Superseded by part number: 84156216
|
| 2. |
87577038
|
[5] |
RUBBER WASHER,10.5mm ID x 20mm OD x 6.35mm Thk
|
NH
Rubber
|
| 3. |
87643037
|
[1] |
BAFFLE
|
NH
Standard
|
| 3. |
87033198
|
[1] |
BAFFLE ASSY.
|
PA
Optional Superseded by part number: 87054009
|
| 3. |
87620707
|
[1] |
BAFFLE
|
NH
Optional
|
| 4. |
86622388
|
[1] |
ARM
|
NH
|
| 5. |
65957
|
[1] |
BUSHING,18.23mm ID x 28.61mm OD x 15.75mm W
|
NH
Superseded by part number: 87642987
|
| 6. |
255189
|
[1] |
SPACER
|
NH
Superseded by part number: 87643020
|
| 7. |
86622552
|
[4] |
SHIELD
|
PA
|
| 8. |
86517336
|
[4] |
SUPPORT
|
NH
Superseded by part number: 87643130
|
| 9. |
86614003
|
[2] |
ROLLER
|
NH
Spreader, Standard Superseded by part number: 87397766
|
| 9. |
87033154
|
[2] |
ROLL
|
PA
Spreader, Optional
|
| 10. |
27291
|
[2] |
BALL BEARING,20mm ID x 47mm OD x 14mm W
|
NH
Superseded by part number: 84330054
|
| 11. |
814-12050
|
[5] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 12. |
280760
|
[4] |
HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"
|
NH
|
| 13. |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 14. |
844-12050
|
[2] |
BOLT,Hex, M12 x 50mm, Cl 8.8
|
BRR
Superseded by part number: 9671487
|
| 15. |
86629037
|
[1] |
NEEDLE BEARING,25.58mm ID x 34.92mm OD x 19.05mm W
|
NH
Superseded by part number: A63065
|
| 16. |
86629038
|
[2] |
SEAL
|
NH
|
| 17. |
285072
|
[5] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
| 18. |
86511324
|
[1] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 19. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 20. |
794034
|
[1] |
WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk
|
NH
1-1/8" OD x .060" Thk
|
| 22. |
825-1412
|
[2] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 23. |
832-10410
|
[5] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 190003888452
|
| 26. |
309086
|
[1] |
BOLT,Hex, M12 x 60, 8.8, Full Thd
|
NH
|
| 27. |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
