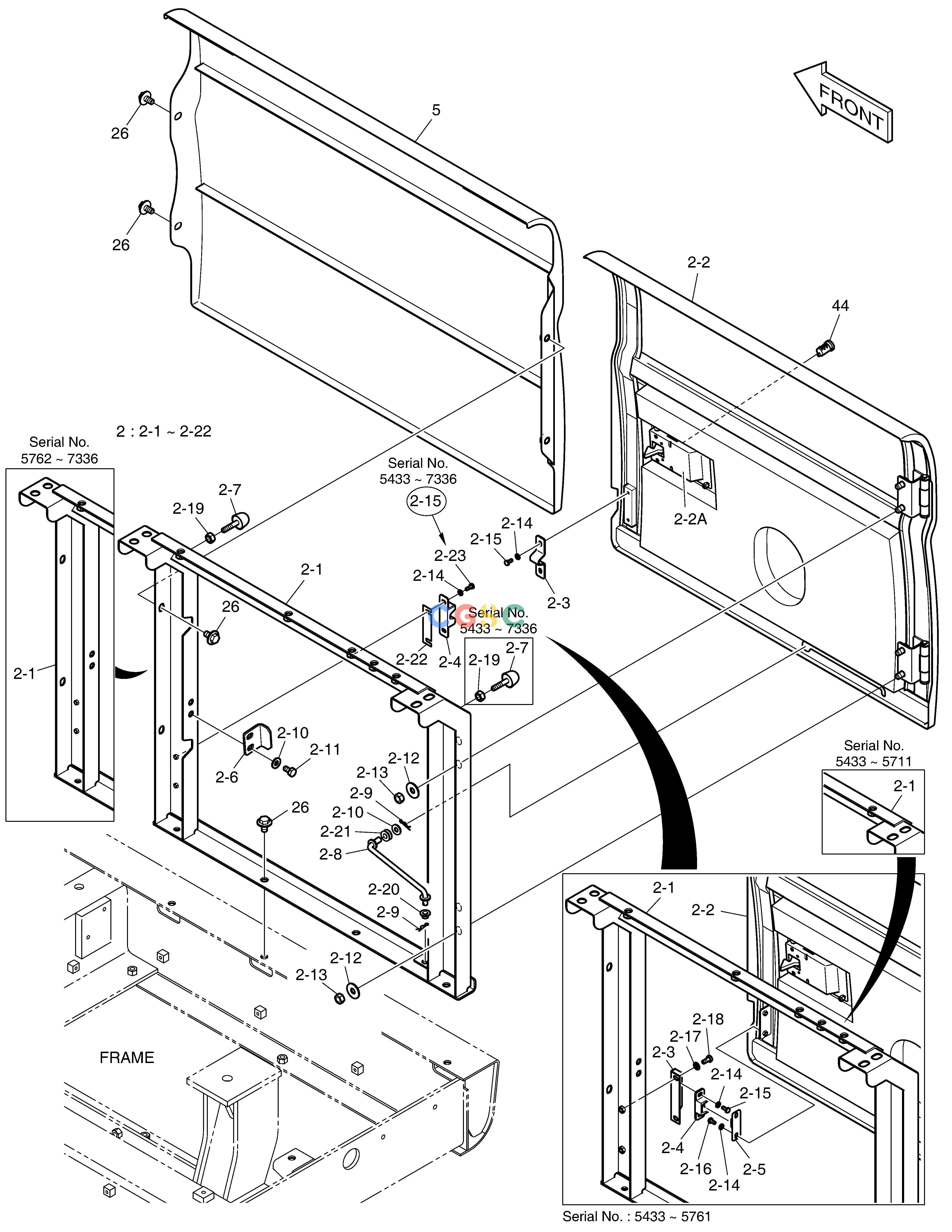

斗山零件查询SIDE DOOR - R.H DX225LC (S/N 5433~) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 134 次

Pos.	Part No	Qty	Parts name	Comments
-.	110508-00250	[-]
-.	K1039448G	[-]	COVER ASS'Y
2.	K1043854A	[1]	SIDE DOOR ASS'Y (R.H)	110982-00103
2.	110982-00103	[1]		110982-00103A
2.	110982-00103A	[1]		110982-00103B
2.	110982-00103B	[1]		110982-00103C
2.	110982-00103C	[1]		110982-00103E
2.	110982-00103E	[1]		110982-00103G
2.	110982-00103G	[1]
2-1.	K1043855A	[1]	SUPPORT(R.H)	110958-00181
2-1.	110958-00181	[1]
2-1.	110958-00181A	[1]
2-1.	110958-00181B	[1]
2-10.	2114-1058D45	[3]	. WASHER
2-10.	120804-00078	[3]	WASHER
2-11.	S0511853	[2]	BOLT
2-11.	S0512053	[2]	BOLT
2-12.	2114-1058D30	[4]	. WASHER
2-12.	120804-00079	[4]	WASHER
2-13.	S4012733	[4]	NUT
2-14.	S5010313	[4]	WASHER
2-15.	S0504553	[2]	BOLT
2-15.	S0504553	[4]	BOLT
2-15.	S0504553	[2]	BOLT
2-16.	S0504453	[2]	BOLT
2-17.	S5010513	[2]	WASHER
2-18.	S0508753	[2]	BOLT M8X1.25X18
2-19.	S4012633	[2]	NUT
2-19.	S4012633	[1]	NUT
2-2.	621-03449E	[1]	SIDE DOOR
2-2.	110982-00128	[1]		110982-00128A
2-2.	110982-00128A	[1]
2-2.	110982-00128B	[1]
2-2.	110982-00128C	[1]
2-20.	K1000602	[1]	. BUSHING
2-21.	K1008335	[1]	. BUSHING
2-22.	110947-00027	[1]	. SHIM
2-23.	S0504653	[2]	. BOLT
2-2A.	125-00035A	[1]	LOCK
2-3.	2116-1522	[1]	PLATE
2-3.	250201-00028	[1]	. PLATE
2-4.	2161-9052	[1]	STOPPER;PLATE
2-4.	110956-00002	[1]		110956-00002A
2-4.	110956-00002A	[1]	. STOPPER
2-5.	2161-9053	[1]	STOPPER;RUBBER
2-6.	621-02726A	[1]	. PLATE,LOCK
2-7.	K1001260A	[2]	STOPPER
2-7.	K1001260A	[1]	STOPPER
2-8.	623-00075B	[1]	. STAY ASSY(L.H)
2-8.	101582-00618A	[1]
2-9.	2705-9002	[2]	PIN
26.	DS0025015	[8]	BOLT
44.	K1004630	[1]	CYLINDER;KEY
5.	621-03642C	[1]	TANK COVER
