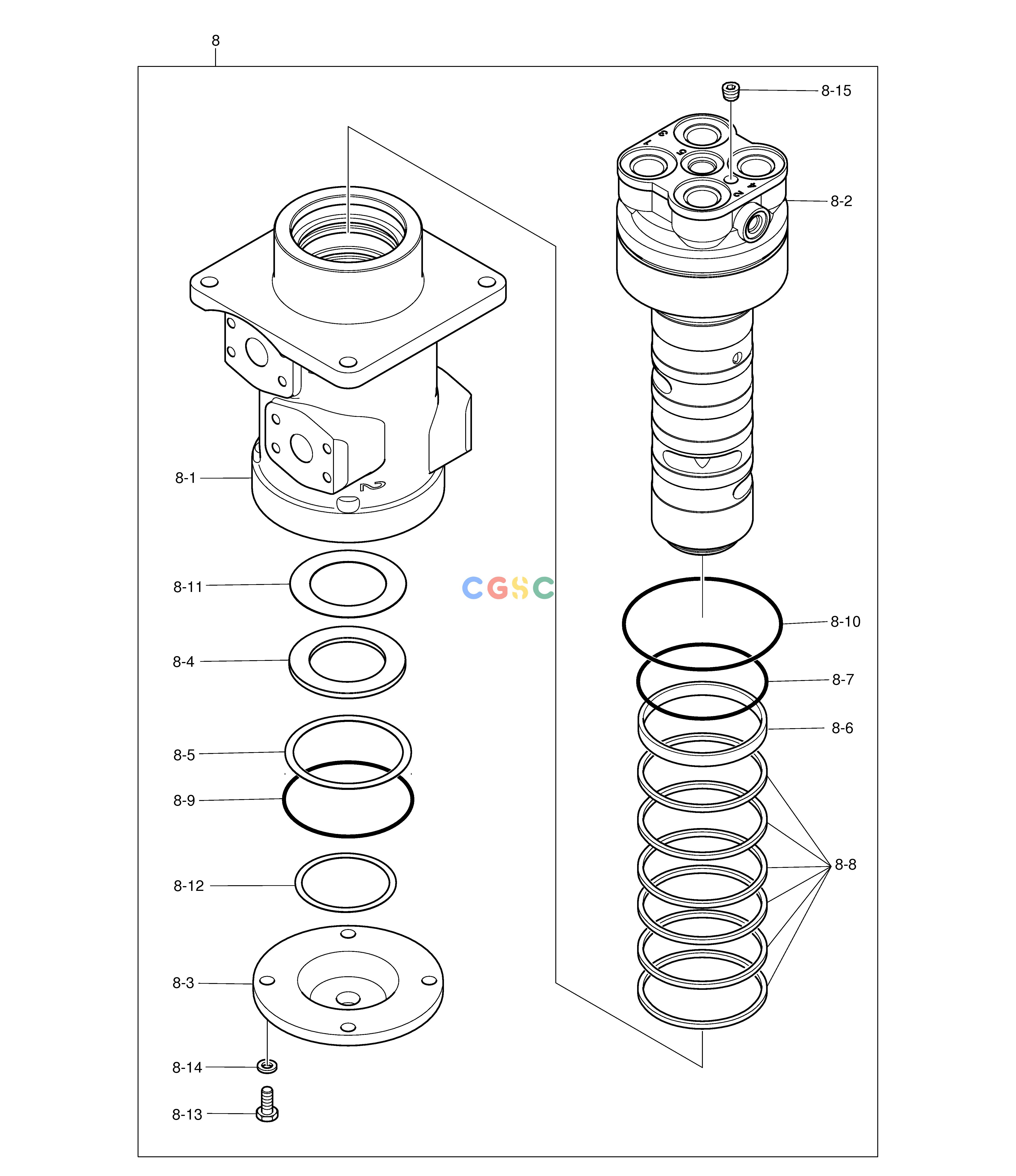

斗山零件查询CENTER JOINT DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
536 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K1038790KT
|
[1] |
SEAL KIT;CENTER JOINT
|
|
| -. |
K1039703B
|
[-] |
TRACK ASS'Y
|
|
| 8. |
K1038790
|
[1] |
JOINT;CENTER
|
|
| 8-1. |
K1038791
|
[1] |
HUB
|
|
| 8-10. |
S8001050
|
[1] |
. O-RING
|
|
| 8-11. |
K9006884
|
[1] |
. SHIM
|
|
| 8-12. |
K9006883
|
[1] |
. SHIM
|
|
| 8-13. |
S0515253
|
[4] |
. BOLT
|
|
| 8-14. |
S5102703
|
[4] |
WASHER
|
|
| 8-15. |
2181-1116D2
|
[1] |
PLUG
|
|
| 8-2. |
K1038792
|
[1] |
SPINDLE
|
|
| 8-3. |
K1038793
|
[1] |
. COVER
|
|
| 8-4. |
K1038794
|
[1] |
. SPACER
|
|
| 8-5. |
S6500600
|
[1] |
. RING,RETAINER
|
|
| 8-6. |
NA00993
|
[1] |
RING;WEAR
|
|
| 8-7. |
S8000901
|
[1] |
O-RING
|
|
| 8-8. |
NA01100
|
[6] |
. SEAL,SLIPPER
|
|
| 8-9. |
S8011000
|
[1] |
. O-RING
|
|
