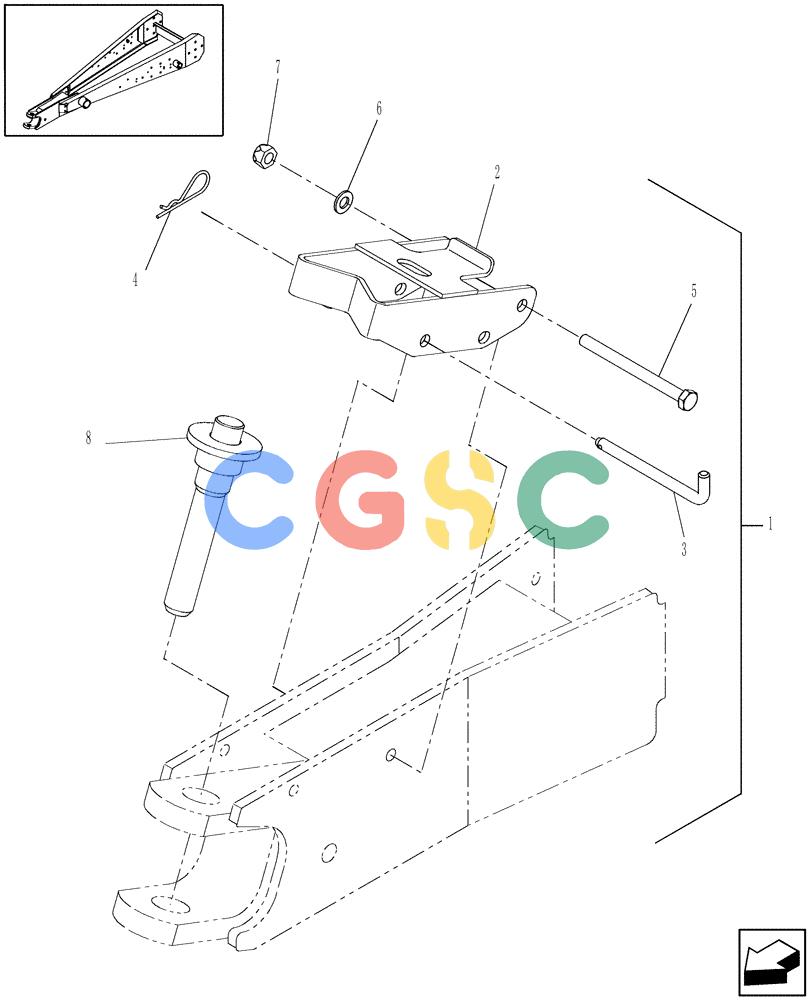

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (18.08) - DIA KIT, LOCKING HITCH PIN Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84131631
|
[1] |
KIT
|
NH
Locking Hitch Pin, Includes: Installation instructions
|
| 2. |
87715252
|
[1] |
SUPPORT
|
NH
|
| 3. |
87706664
|
[1] |
PIN,9.5mm OD
|
NH
|
| 4. |
129365
|
[1] |
COTTER PIN
|
NH
|
| 5. |
86508574
|
[1] |
BOLT,Hex, M10 x 120mm, Cl 8.8
|
NH
|
| 6. |
86511323
|
[1] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 7. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
87666884
|
[1] |
PIN
|
NH
|
