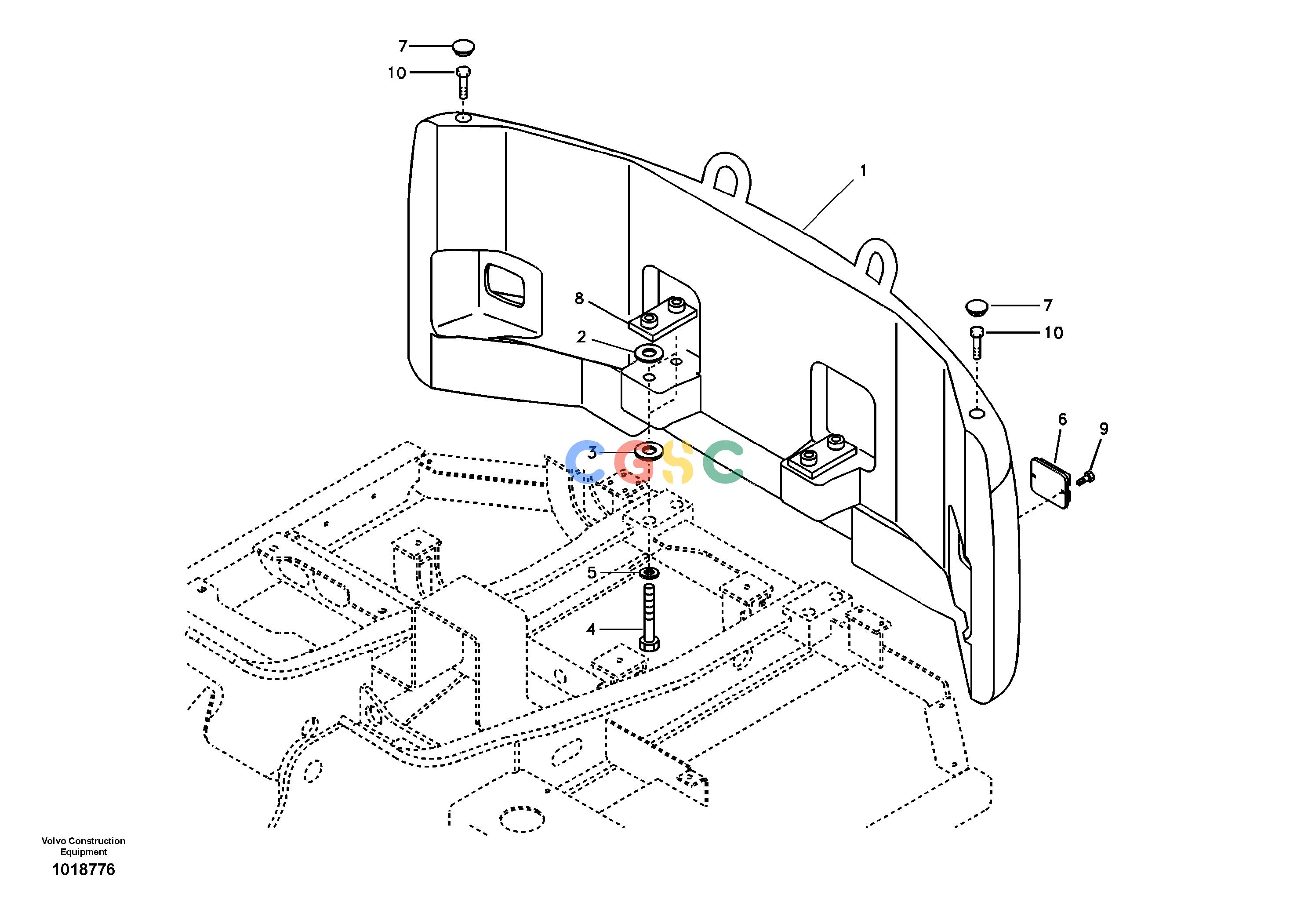

沃尔沃零件查询EC135B CounterweightsSER NO 20001-200798278012-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
781 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14506664
|
[1] |
Counterweight
|
2100KG
|
| 2. |
VOE14542811
|
[4] |
Shim
|
|
| 3. |
VOE14542812
|
[4] |
Shim
|
|
| 4. |
SA9199-00080
|
[4] |
Bolt
|
|
| 5. |
SA9211-30000
|
[4] |
Plain washer
|
|
| 6. |
VOE14523953
|
[2] |
Reflector
|
|
| |
VOE14526946
|
[1] |
Reflector
|
|
| 7. |
VOE14509666
|
[2] |
Plug
|
SER NO 20001-20033
|
| 8. |
VOE14512280
|
[2] |
Plate
|
|
| 9. |
SA9021-10405
|
[4] |
Cross recessed screw
|
|
| 10. |
VOE993424
|
[2] |
Hexagon screw
|
SER NO 20034-
|
