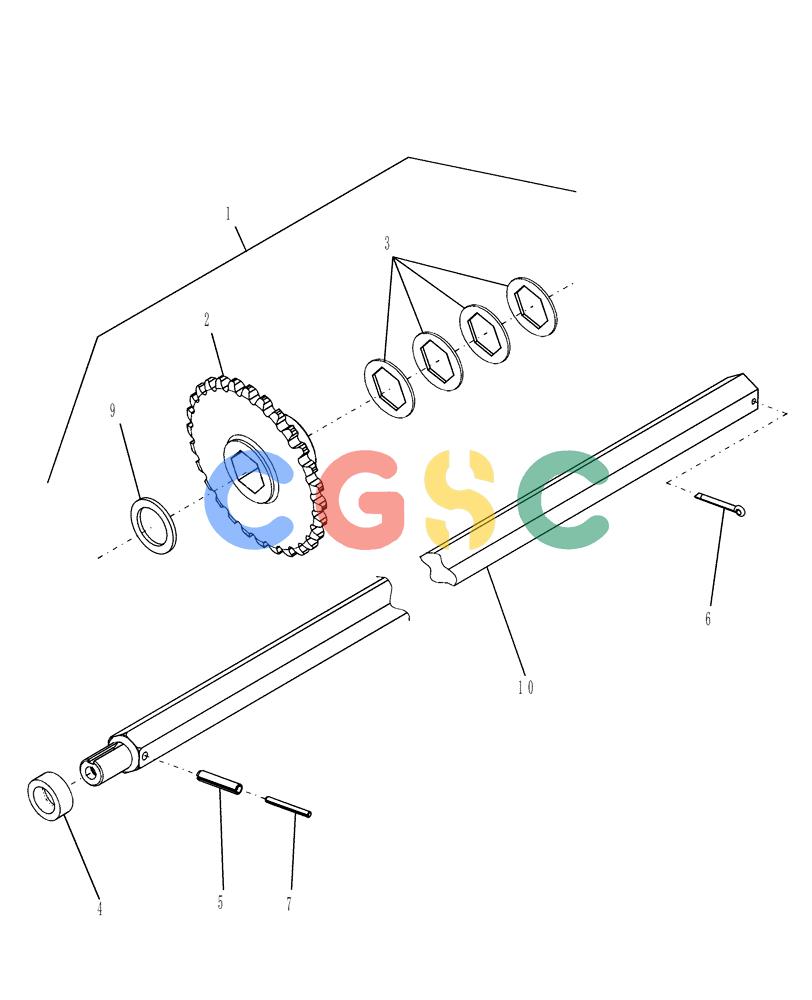

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (18.38) - DIA KIT, SLEDGE DIRECT DRIVE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
934 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87377647
|
[1] |
DIA KIT, HARVESTER
|
PA
Sledge Direct Drive, Includes: Installation Instructions
|
| 2. |
87056511
|
[1] |
SPROCKET
|
PA
28T
|
| 3. |
87056525
|
[4] |
WASHER
|
PA
Hex ID
|
| 4. |
87056526
|
[1] |
SPACER
|
PA
29.5 ID x 45 OD x 18 Tk.
|
| 5. |
412689
|
[1] |
LOCK PIN,8mm OD x 50mm L, Slotted
|
NH
|
| 6. |
87400
|
[1] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 7. |
84024216
|
[1] |
LOCK PIN,5mm OD x 50mm L, Slotted
|
PLO
|
| 9. |
86619043
|
[2] |
WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk
|
NH
Plated
|
| 10. |
87056540
|
[1] |
SHAFT
|
PA
|
