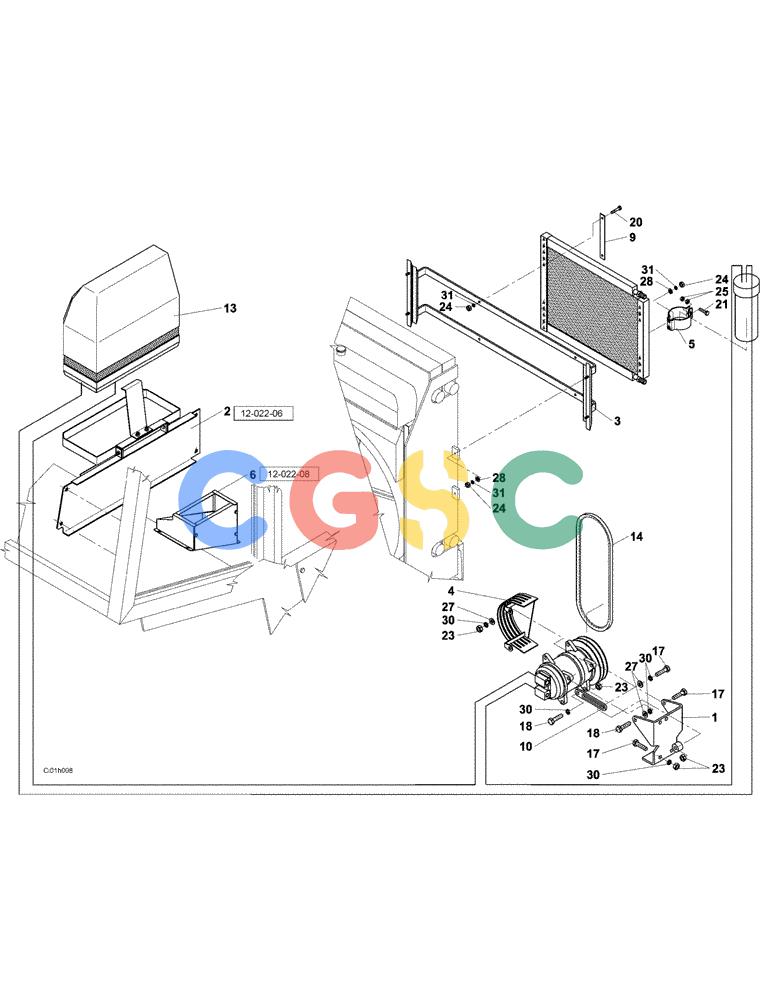

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (12-022-05[01]) - AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND031779 | [1] | SUPPORT | STA |
| 2. | ND018060 | [1] | SUPPORT | STA |
| 3. | ND104754 | [1] | BELT | STA |
| 4. | ND018641 | [1] | SHIELD | STA |
| 5. | ND104006 | [1] | DASHBOARD | STA |
| 6. | ND106204 | [1] | COVER | STA |
| 9. | ND104007 | [1] | GASKET | STA |
| 10. | ND053478 | [1] | BRACKET | STA |
| 13. | ND064865 | [1] | AIR CONDITIONER | STA |
| 14. | ND079617 | [1] | BELT | STA |
| 17. | ND021203 | [6] | BOLT,Hex, M10 x 80mm | STA |
| 18. | ND021195 | [3] | BOLT | STA |
| 20. | ND021176 | [4] | SCREW | STA |
| 21. | ND023702 | [1] | SCREW | STAM5 x 25 Superseded by part number: ND110228 |
| 23. | ND021849 | [8] | NUT | STAM10 Superseded by part number: ND034088 |
| 24. | ND021847 | [10] | NUT | STAM6 |
| 25. | ND021846 | [2] | NUT | STAM5 |
| 27. | ND029266 | [3] | WASHER | STA |
| 28. | ND029248 | [6] | WASHER | STA |
| 30. | ND029311 | [9] | WASHER | STA |
| 31. | ND029309 | [10] | SPRING WASHER | STAID 6,1 |
