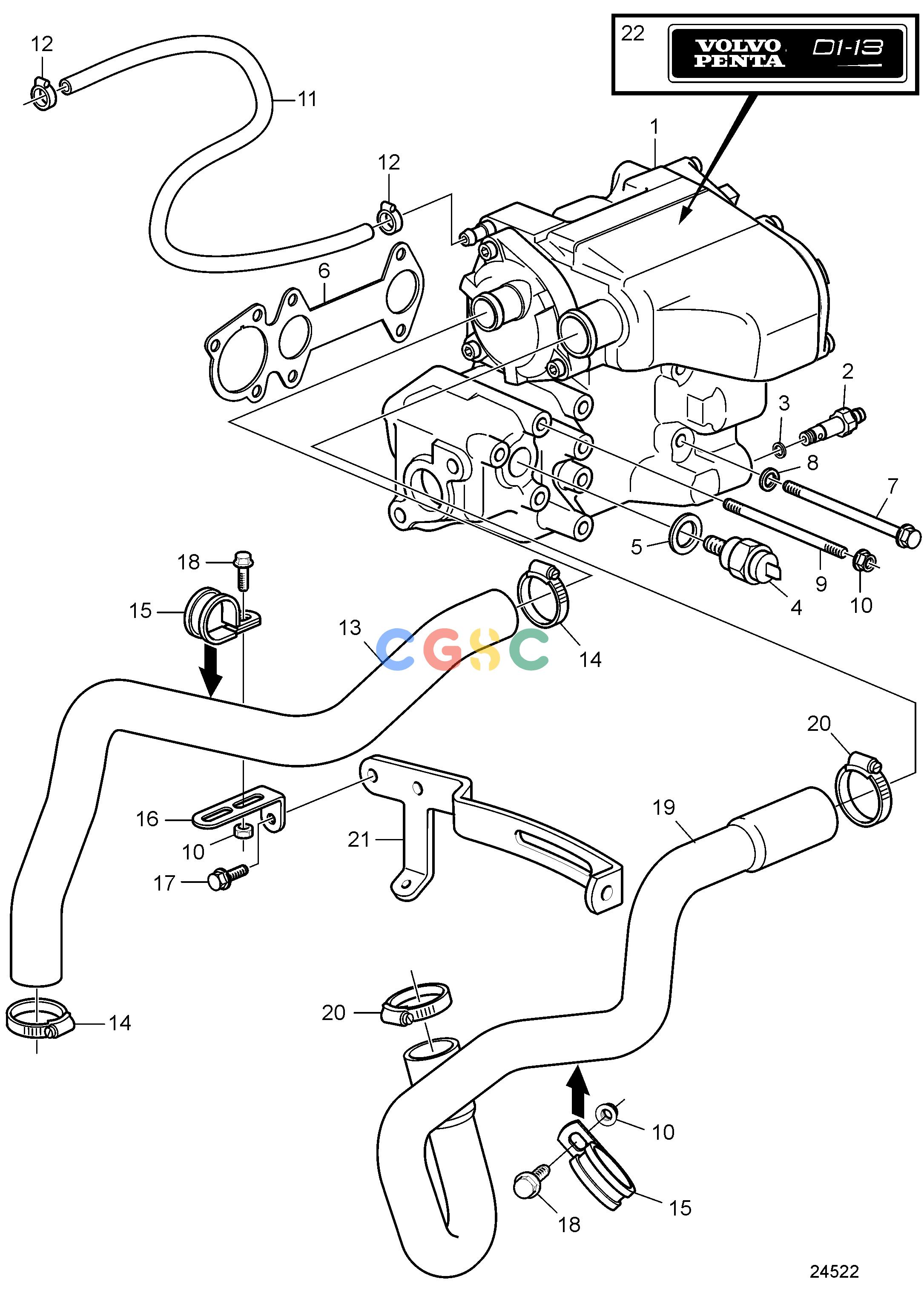

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FCooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3840127
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
7746500_071
|
|
Draining nipple
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
See Elecrical system/EVC Electrical system D1-D2
|
| 5. |
11998
|
[1] |
Gasket
|
|
| 6. |
3809917
|
[1] |
Gasket
|
|
| 7. |
955285
|
[5] |
Hexagon screw
|
|
| 8. |
861913
|
[5] |
Spring washer
|
|
| 9. |
3884546
|
[2] |
Stud
|
|
| 10. |
945407
|
[3] |
Flange nut
|
|
| 11. |
993304
|
[1] |
Hose
|
Heat exchanger-expansion tank.
|
| 12. |
945652
|
[2] |
Hose clamp
|
|
| 13. |
7746500_084
|
|
Hose
|
|
| 14. |
7746500_084
|
|
Hose clamp
|
|
| 15. |
952636
|
[2] |
Clamp
|
|
| 16. |
965555
|
[1] |
Bracket
|
|
| 17. |
947107
|
[1] |
Flange screw
|
|
| 18. |
946544
|
[1] |
Flange screw
|
|
| 19. |
7746500_082
|
|
Hose
|
|
| 20. |
7746500_082
|
|
Hose clamp
|
|
| 21. |
7746500_114
|
|
Tensioner
|
|
| 22. |
3809963
|
[1] |
Label
|
|
