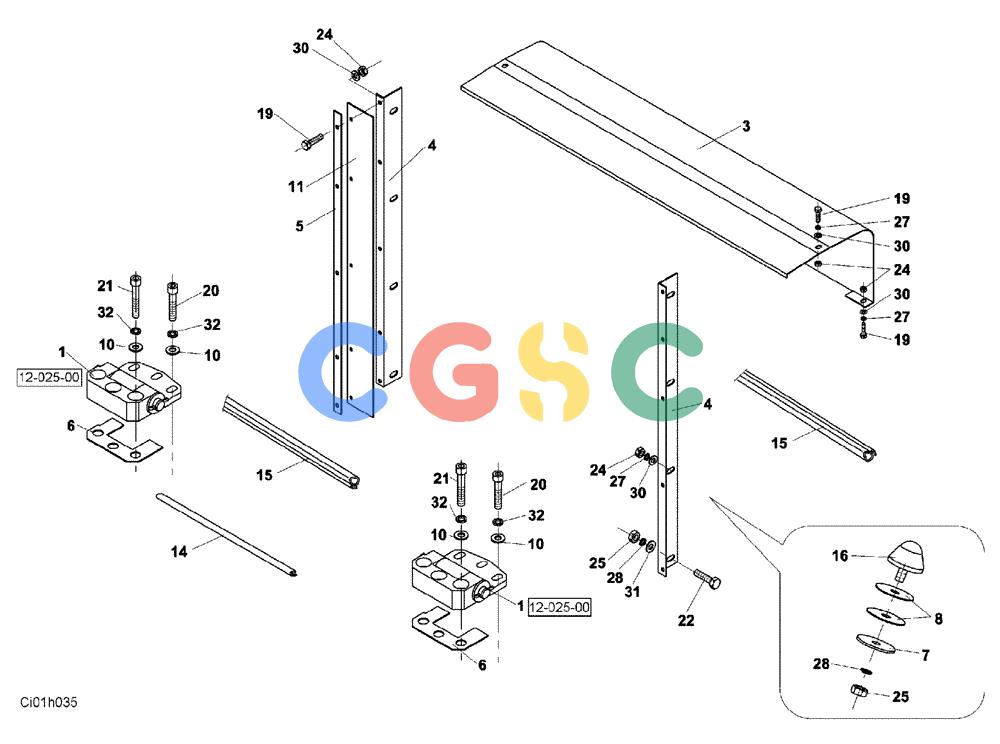

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (12-024-00[01]) - ENGINE COVER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
619 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104765 | [2] | HINGE | STA |
| 3. | ND104711 | [1] | COVER | STA |
| 4. | ND104712 | [2] | BAR | STA |
| 5. | ND104767 | [2] | PLATE | STA |
| 6. | ND052341 | [6] | WASHER | STA |
| 7. | ND103516 | [2] | WASHER | STA |
| 8. | ND104572 | [4] | WASHER | STA |
| 10. | ND042815 | [12] | WASHER | STAID 12 Superseded by part number: ND029267 |
| 11. | ND104713 | [2] | PORT | STA |
| 14. | ND104809 | [1] | PROFILE | STA |
| 15. | ND104810 | [1] | PACKING | STA |
| 16. | ND079088 | [2] | BUMPER | STA |
| 19. | ND023801 | [14] | SCREW | STA Superseded by part number: ND021289 |
| 20. | ND024272 | [6] | BOLT | STA |
| 21. | ND024274 | [6] | BOLT | STA |
| 22. | ND033870 | [2] | BOLT | STA |
| 24. | ND026415 | [20] | NUT | STAM 6 Superseded by part number: ND027300 |
| 25. | ND026416 | [4] | NUT | STAM 8 Superseded by part number: ND034087 |
| 27. | ND029309 | [10] | SPRING WASHER | STAID 6,1 |
| 28. | ND029310 | [4] | WASHER | STAID 8,2 |
| 30. | ND029248 | [20] | WASHER | STAID 6,4 |
| 31. | ND029249 | [2] | WASHER | STA |
| 32. | ND035942 | [12] | WASHER | STAID 12 |
