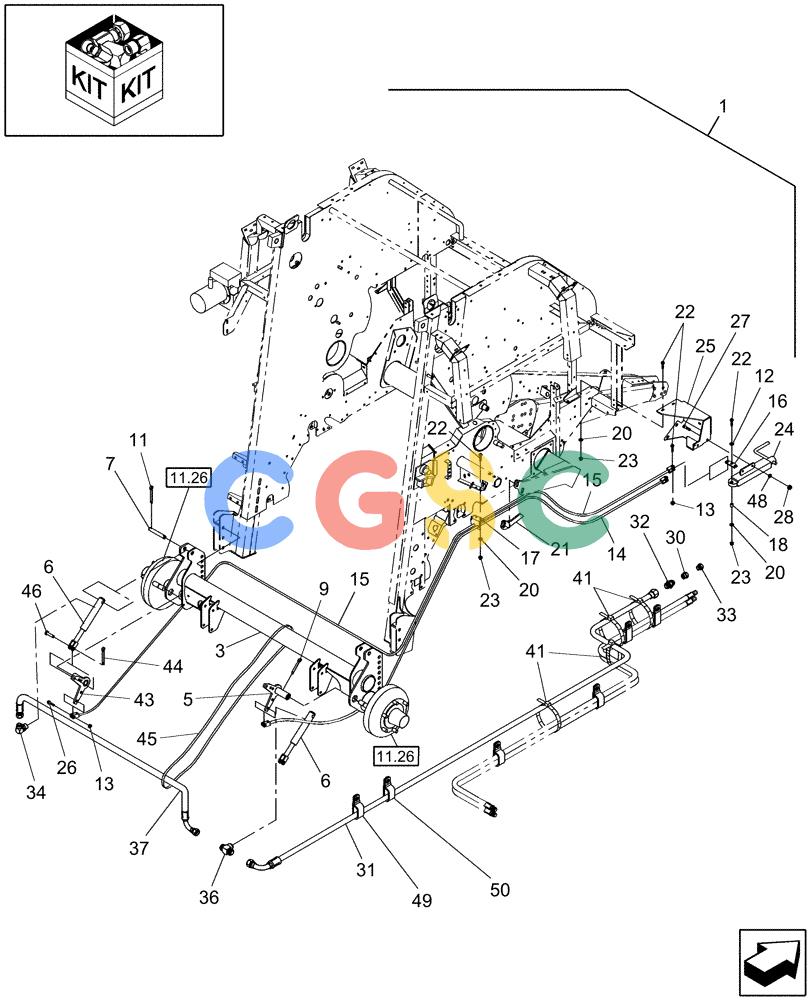

| 1. |
87347903
|
[1] |
DIA KIT, HARVESTER
|
PA
Hydraulic Brake
|
| 3. |
87054565
|
[1] |
AXLE
|
PA
Includes: Brake Hubs
|
| 5. |
87055651
|
[1] |
ARM ASSY.
|
PA
|
| 6. |
87663731
|
[1] |
ACTUATOR
|
PLO
|
| 7. |
87498333
|
[2] |
PIN,19mm OD x 94mm L
|
NH
|
| 9. |
130012
|
[2] |
COTTER PIN,M5 x 50
|
PA
Superseded by part number: 87400
|
| 11. |
130011
|
[4] |
COTTER PIN,M5 x 40
|
ZED
|
| 12. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 13. |
86629542
|
[5] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 14. |
87020056
|
[1] |
CABLE
|
PA
|
| 15. |
87020057
|
[1] |
CABLE,3720mm L
|
PA
|
| 16. |
87023508
|
[1] |
PLATE
|
PA
|
| 17. |
87023507
|
[1] |
SPACER
|
PA
|
| 18. |
141979
|
[1] |
SPACER
|
PA
1/2" OD
|
| 20. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 21. |
87032944
|
[1] |
PLATE
|
PA
|
| 22. |
9671714
|
[11] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 23. |
9804277
|
[8] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 24. |
84274758
|
[1] |
HAND BRAKE
|
ZED
|
| 25. |
87023506
|
[1] |
SUPPORT
|
PA
|
| 26. |
9804260
|
[2] |
BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8
|
NH
|
| 27. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 28. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 30. |
9839028
|
[1] |
HYD CONNECTOR,M18 x 1.5
|
PA
|
| 31. |
86974525
|
[1] |
HOSE,7.92mm ID x 5207mm L, SAE 100R1
|
PA
|
| 32. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 33. |
84078124
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 34. |
9837647
|
[1] |
ELBOW,90 Degree - 9/16" - 18 JIC 37 Degree x 3/8" BSPP
|
PA
90° Superseded by part number: 89837647
|
| 35. |
9837622
|
[1] |
HYD CONNECTOR,9/16" JIC x 3/8" BSPP
|
PA
|
| 36. |
86513014
|
[1] |
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
|
BHB
|
| 37. |
87019827
|
[1] |
HOSE,0.38" ID x 79.00", SAE 100R1
|
PA
|
| 41. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
CABLE STRAP
|
| 43. |
87055646
|
[1] |
ARM ASSY.
|
PA
|
| 44. |
130014
|
[2] |
LOCK PIN
|
ZED
Superseded by part number: 788364, 788364, 9515820
|
| 45. |
84137881
|
[4] |
STRAP,7.6mm W x 760mm L - Black
|
PLO
5/16" x 21-1/2"
|
| 46. |
12192
|
[2] |
PIN
|
PA
Superseded by part number: 76877
|
| 48. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 49. |
620019
|
[1] |
CLAMP
|
NH
Hose, 11/16" x 1-3/8"
|
| 50. |
86594406
|
[3] |
CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type
|
PA
|
