凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (18.65) - DIA KIT, STARTER ROLL RAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
486 次

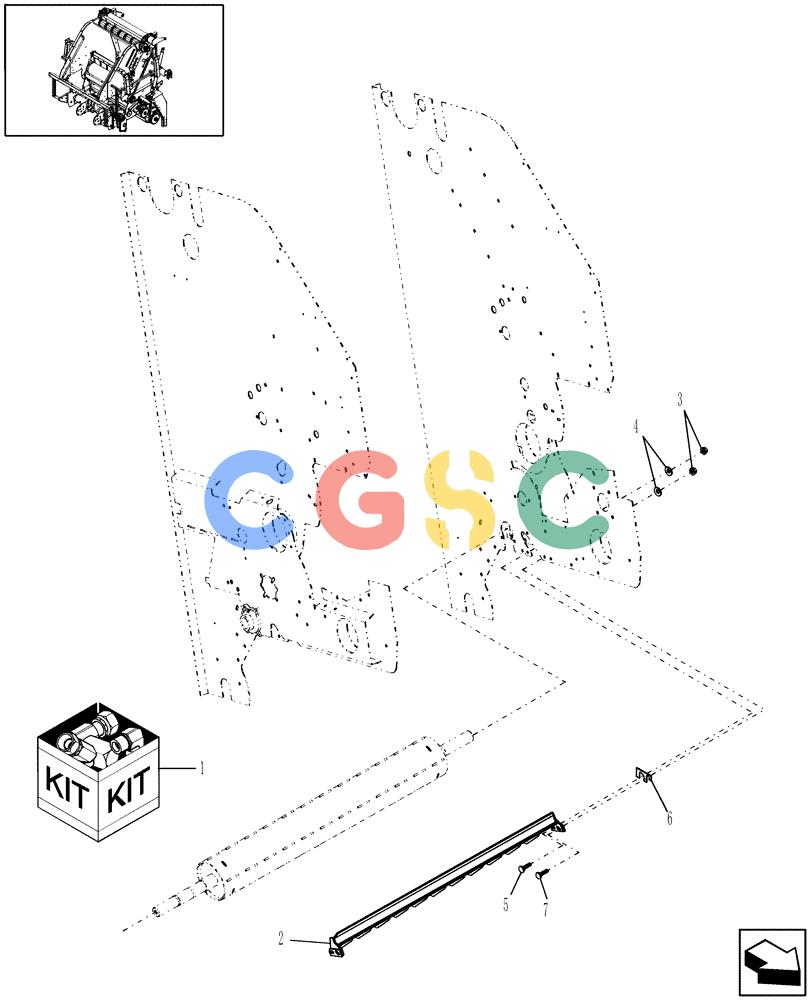

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87665289
|
[1] |
DIA KIT, HARVESTER
|
NH
Starter Roll Rake, Includes: Ref. 2 - 7 & Installations Instructions
|
| 2. |
87042113
|
[1] |
RAKE
|
NH
|
| 3. |
825-1410
|
[4] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 4. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 5. |
811-10040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 6. |
87020987
|
[4] |
SHIM
|
PA
|
| 7. |
338949
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
