斗山零件查询ARM CYL - ARM 2.4m (ARTI BOOM)(LOCK V/V) DX225LC (S/N 5433~) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 807 次

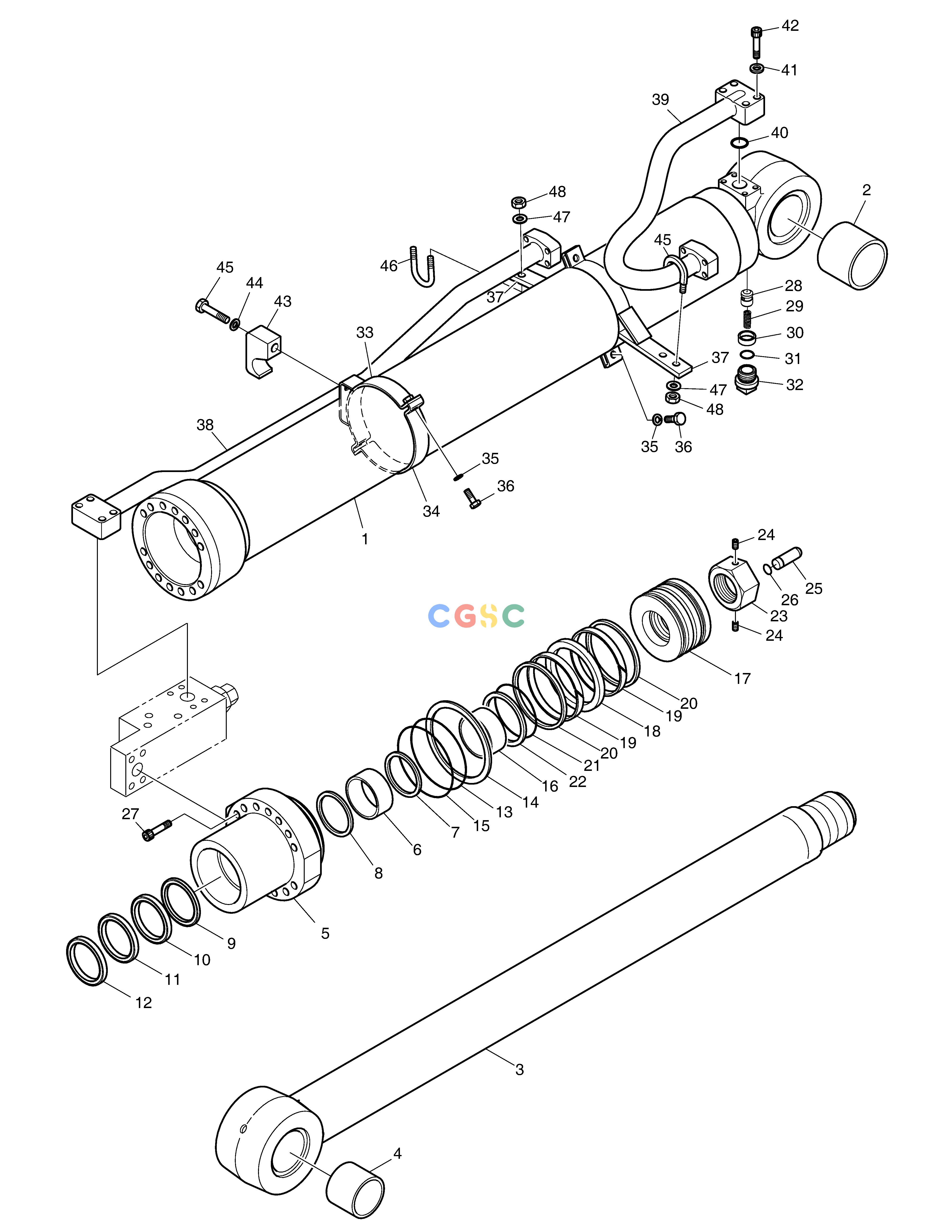

Pos.	Part No	Qty	Parts name
.	K9001901	[1]	SEAL KIT;ARM CYLINDER
-.	400305-00440B	[1]
1.	420406-01463A-DG	[1]
10.	111102-00135	[1]
11.	115-00077	[1]	WIPER;DUST
12.	115-00078	[1]	RING;RETAINING
13.	S8011351	[1]	O-RING
14.	1.180-00662	[1]	RING;BACK UP
15.	2180-1217D96	[1]	O-RING
16.	K9001893	[1]	RING;CUSHION
17.	K9001894	[1]	PISTON
18.	K9001148	[1]	SEAL;SLIPPER
19.	115-00079	[2]	RING;WEAR
2.	K1000737	[1]	BUSH
20.	K9001149	[2]	RING;DUST
21.	S8010801	[1]	O-RING
22.	K9001895	[2]	RING;BACK UP
23.	120312-00478	[1]
24.	120706-00007	[2]	SCREW,SET
25.	K9001897	[1]	PLUNGER;CUSHION
26.	115-00081	[1]	RING;STOP
27.	S2222272	[14]	BOLT;SOCKET
28.	420-00131	[1]	VALVE;CHECK
29.	129-00071	[1]	SPRING
3.	400337-00618A-DG	[1]
30.	1.195-00022	[1]	SUPPORT;SPRING
31.	S8000141	[1]	O-RING
32.	430221-01153	[1]
33.	K9001899-DG	[1]
34.	124-00052-DG	[1]
35.	S5100703	[4]	WASHER;SPRING
36.	S0560563	[4]	BOLT
37.	K9003684-DG	[2]
38.	420210-02223-DG	[1]
39.	420210-02689-DG	[1]
4.	K1000737	[1]	BUSH
40.	S8000341	[1]	O-RING
41.	S5100603	[4]	WASHER
42.	S2212971	[4]	BOLT
43.	K9001159-DG	[1]
44.	S5102903	[1]	WASHER
45.	S0521853	[1]	BOLT
46.	K9001158	[2]	U-BOLT
47.	S5100603	[4]	WASHER
48.	S4012633	[4]	NUT
5.	110508-18483B-DG	[1]
6.	110-00081	[1]	DD-BUSH
7.	115-00073	[1]	RING;RETAINING
8.	K9001882	[1]	SEAL;BUFFER
9.	K9001883	[1]	U-PACKING
