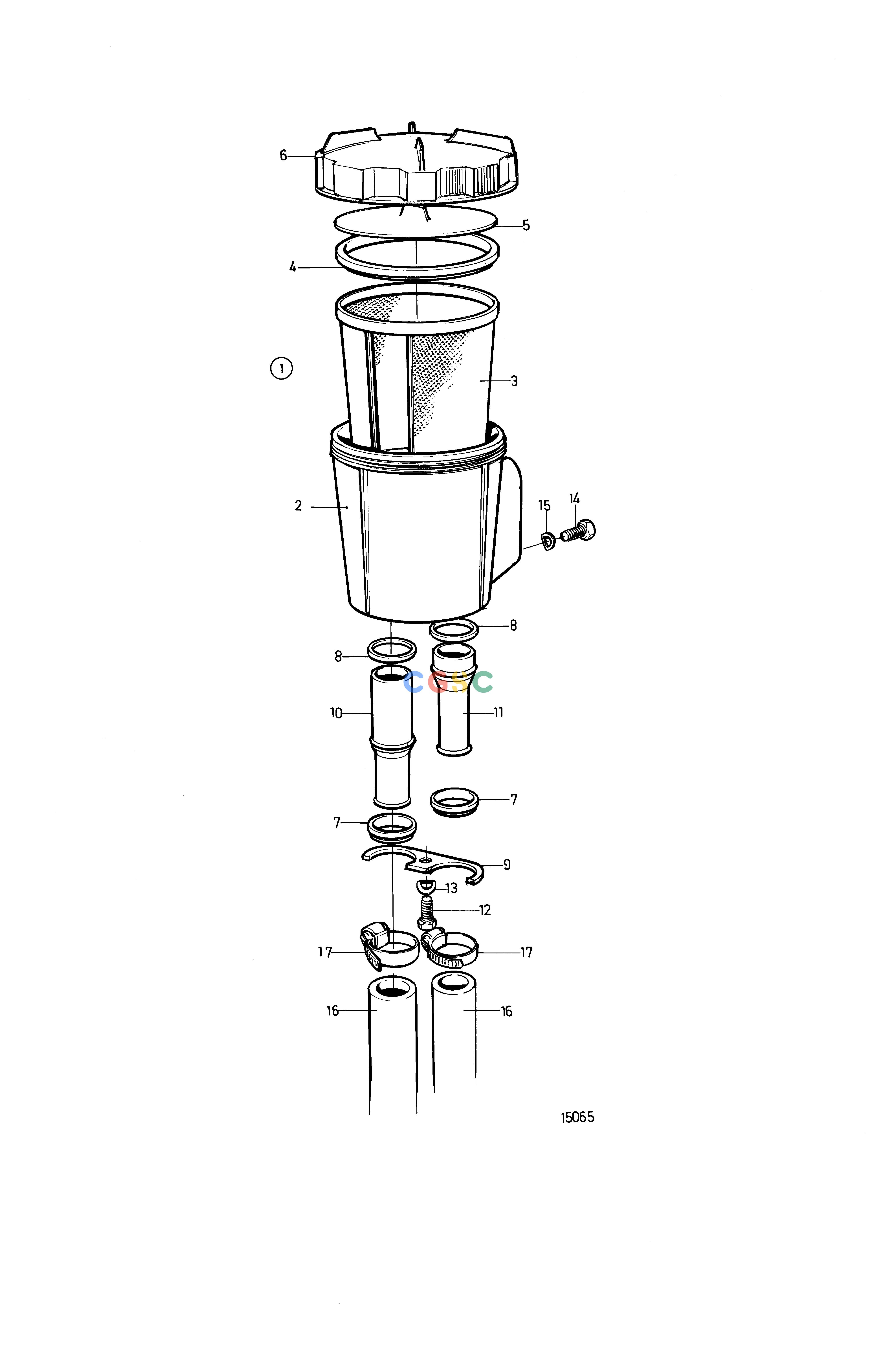

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FCooling SystemSea Water FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21219693
|
[1] |
Sea water filter
|
|
| 2. |
842924
|
[1] |
Strainer
|
|
| 3. |
842723
|
[1] |
Strainer
|
|
| 4. |
842724
|
[1] |
Seal
|
|
| 5. |
842982
|
[1] |
Pressure plate
|
|
| 6. |
842722
|
[1] |
Cover
|
|
| 7. |
847108
|
[2] |
Pipe retainer
|
|
| 8. |
858986
|
[2] |
Sealing ring
|
|
| 9. |
21211745
|
[1] |
Retainer
|
|
| 10. |
3888859
|
[1] |
Connecting pipe
|
Inlet
|
| 11. |
3888862
|
[1] |
Connecting pipe
|
Outlet
|
| 12. |
955270
|
[1] |
Hexagon screw
|
|
| 13. |
941906
|
[1] |
Spring washer
|
|
| 14. |
965215
|
[4] |
Flange screw
|
(955296)
|
| 15. |
941907
|
[4] |
Spring washer
|
|
| 16. |
952970
|
[1] |
Hose
|
|
| 17. |
961666
|
[1] |
Hose clamp
|
|
