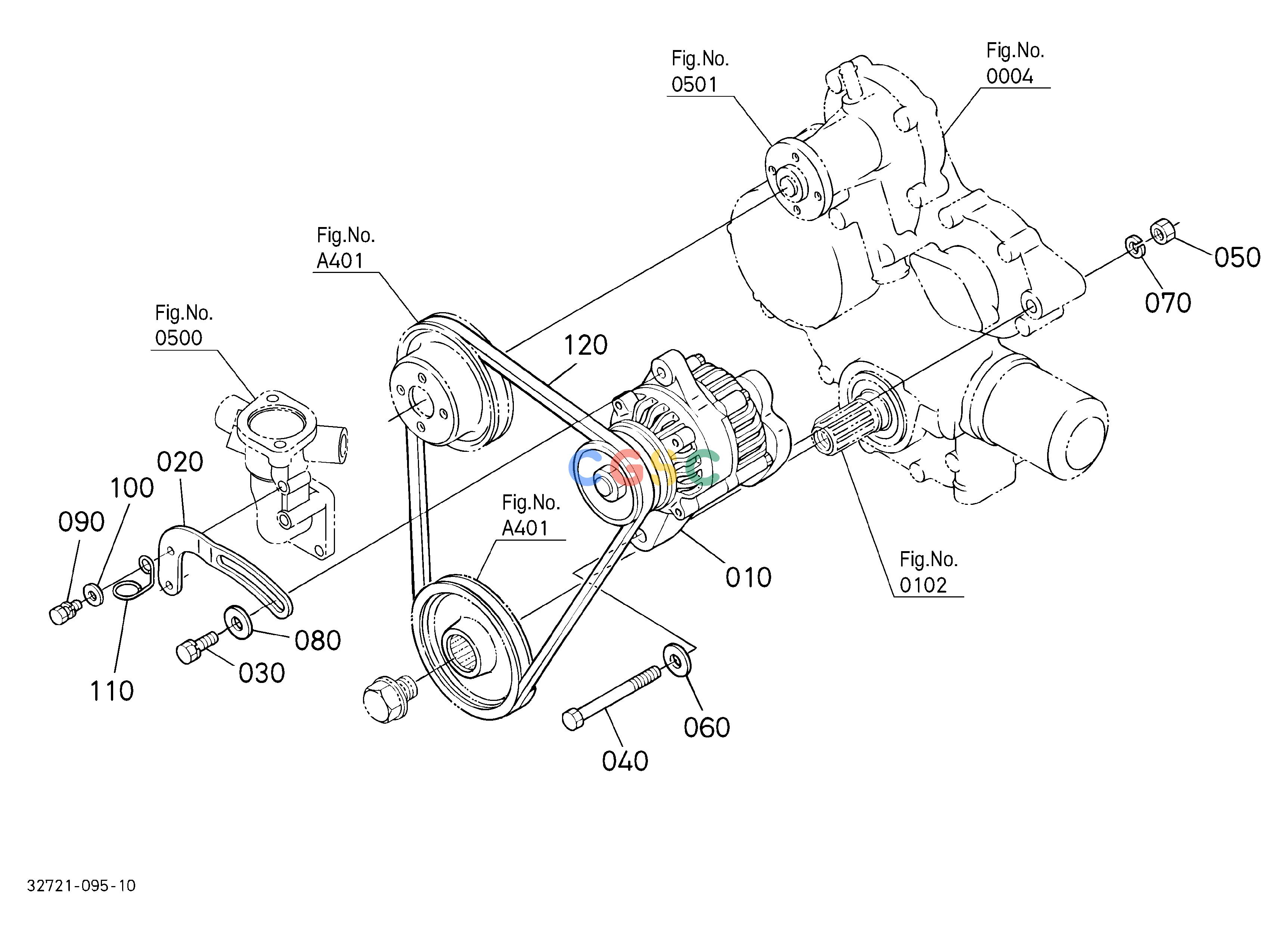

久保田零件查询A51500 ALTERNATOR ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1624164010
|
[1] |
ASSY ALTERNATOR
|
6.6000(lbs); 3.000
|
| 010. |
1624164012
|
[1] |
ASSY ALTERNATOR
|
6.6000(lbs); 3.000
|
| 020. |
1624164420
|
[1] |
STAY DYNAMO
|
0.2090(lbs); 0.095
|
| 020. |
1624164422
|
[1] |
STAY DYNAMO
|
0.2090(lbs); 0.095
|
| 030. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 040. |
0117351085
|
[1] |
BOLT
|
0.1122(lbs); 0.051
|
| 050. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 070. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 080. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 090. |
0102350618
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 100. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
1627183370
|
[1] |
CLAMP CORD
|
0.0110(lbs); 0.005
|
| 120. |
1491197010
|
[1] |
V BELT
|
0.1848(lbs); 0.084
|
