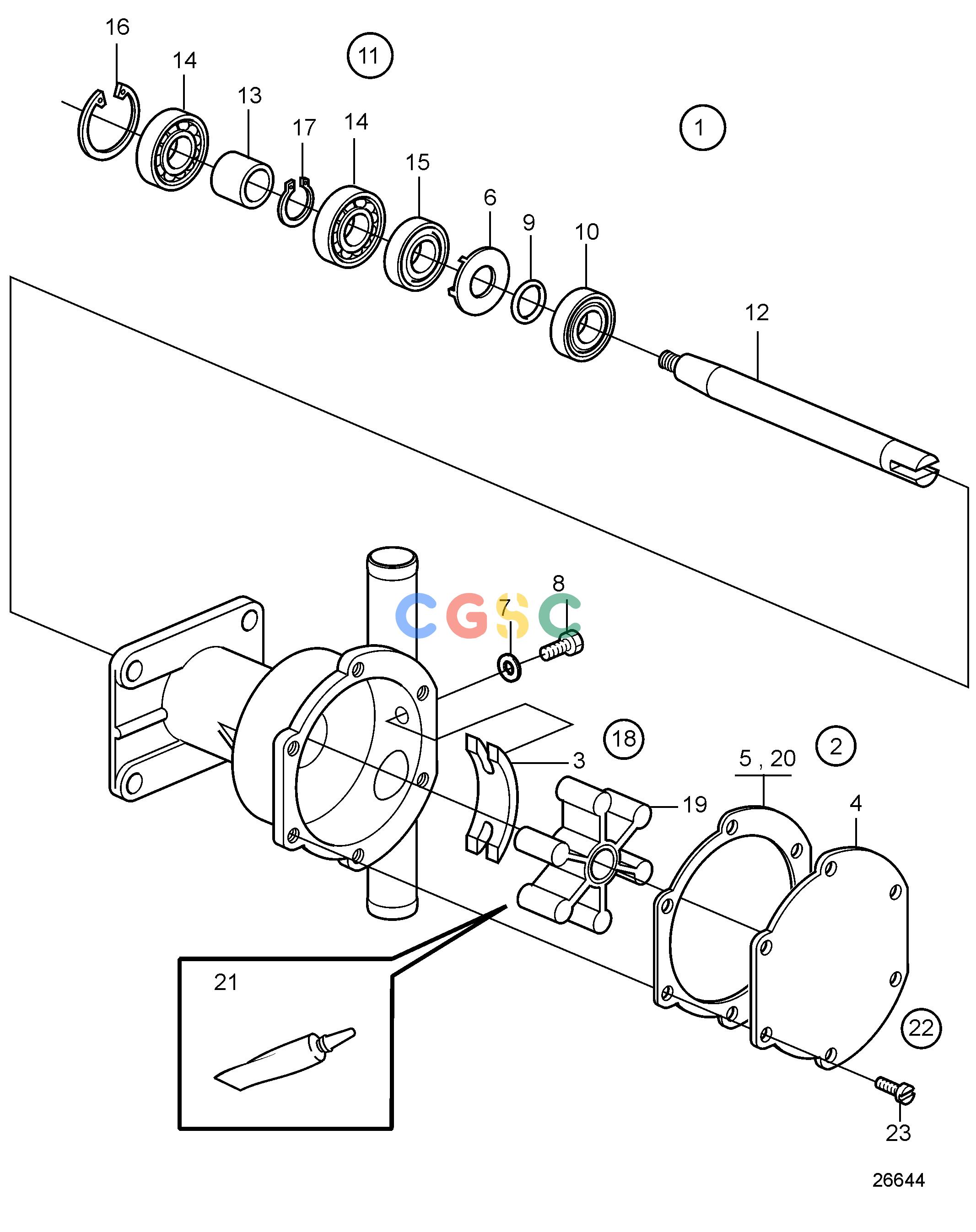

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FCooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3593654
|
[1] |
Sea water pump
|
|
| 2. |
21951370
|
[1] |
Wear kit
|
|
| 3. |
827009
|
[1] |
Cam
|
|
| 4. |
840386
|
[1] |
Cap
|
|
| 5. |
840385
|
[1] |
Gasket
|
|
| 6. |
859101
|
[1] |
Spacer washer
|
|
| 7. |
18669
|
[1] |
Gasket
|
|
| 8. |
804693
|
[1] |
Screw
|
|
| 9. |
925055
|
[1] |
O-ring
|
|
| 10. |
833996
|
[1] |
Sealing ring
|
|
| 11. |
21951416
|
[1] |
Shaft kit
|
|
| 12. |
|
|
|
|
| 13. |
3581367
|
[1] |
Spacer sleeve
|
|
| 14. |
181717
|
[2] |
Ball bearing
|
|
| 15. |
833996
|
[1] |
Sealing ring
|
|
| 16. |
914515
|
[1] |
Snap ring
|
|
| 17. |
914446
|
[1] |
Snap ring
|
|
| 18. |
3593659
|
[1] |
Impeller kit
|
Replaced by 22222936
|
| 18. |
22222936
|
[1] |
Impeller kit
|
|
| 19. |
|
|
|
|
| 20. |
840385
|
[1] |
Gasket
|
|
| 20. |
819959
|
[1] |
Gasket
|
|
| 21. |
3862178
|
[1] |
Grease
|
|
| 22. |
21951302
|
[1] |
Screw kit
|
|
| 23. |
21643469
|
[6] |
Hexagon screw
|
|
