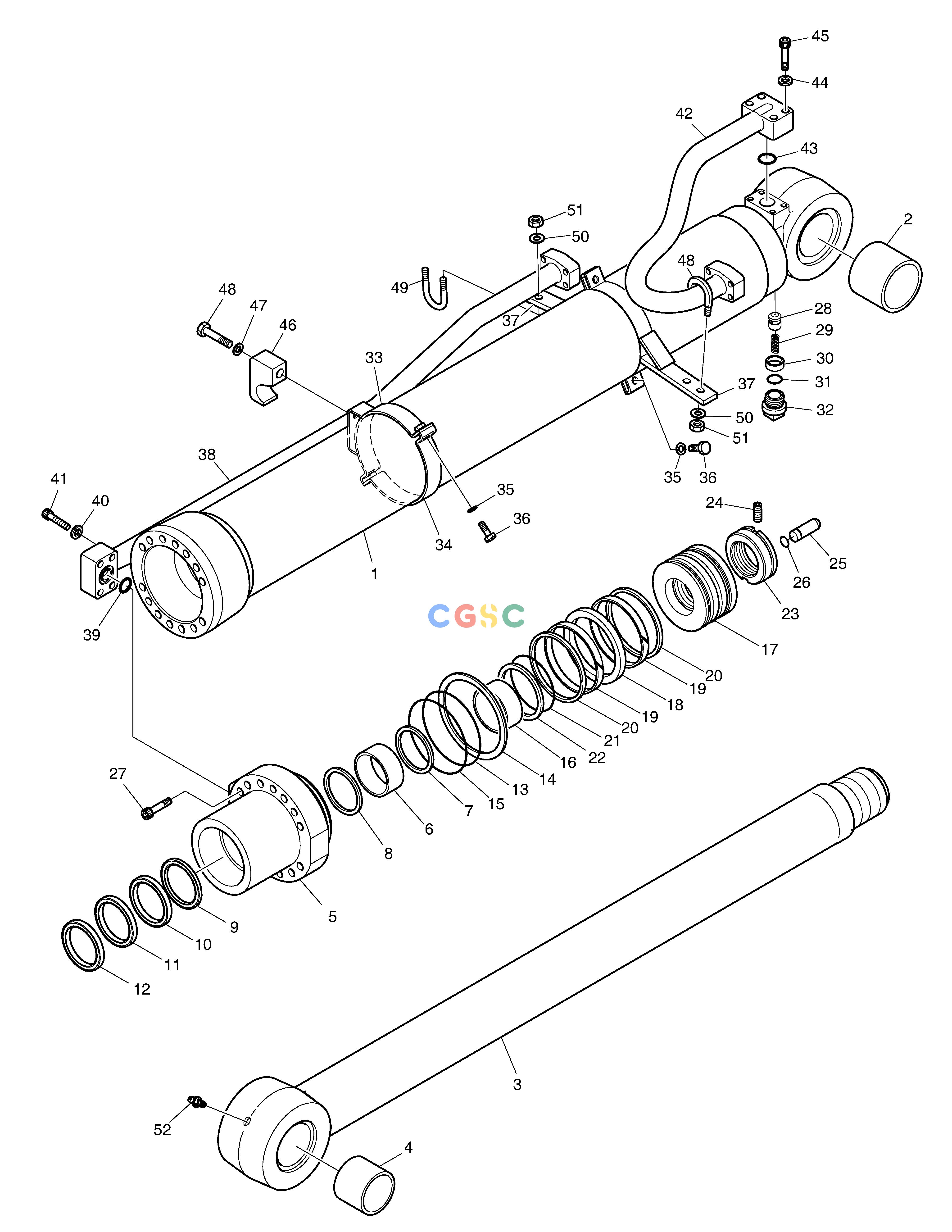

斗山零件查询ARM CYLINDER - ARTI. BOOM(ARM 2.4m) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001901
|
[1] |
SEAL KIT;ARM CYLINDER
|
|
| -. |
400305-00735
|
[1] |
|
|
| 1. |
420406-02122-DG
|
[1] |
|
|
| 10. |
K9001884
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00077
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00078
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011351
|
[1] |
O-RING
|
|
| 14. |
1.180-00662
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1217D96
|
[1] |
O-RING
|
|
| 16. |
K9001893
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001894
|
[1] |
PISTON
|
|
| 18. |
K9001148
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00079
|
[2] |
RING;WEAR
|
|
| 2. |
K1000737
|
[1] |
BUSH
|
|
| 20. |
K9001149
|
[2] |
RING;DUST
|
|
| 21. |
S8010801
|
[1] |
O-RING
|
|
| 22. |
K9001895
|
[2] |
RING;BACK UP
|
|
| 23. |
121-00044
|
[1] |
NUT;PISTON
|
|
| 24. |
S3523836
|
[1] |
SCREW;SET
|
|
| 25. |
K9001897
|
[1] |
PLUNGER;CUSHION
|
|
| 26. |
115-00081
|
[1] |
RING;STOP
|
|
| 27. |
S2222272
|
[14] |
BOLT;SOCKET
|
|
| 28. |
1.420-00050
|
[1] |
VALVE;CHECK
|
|
| 29. |
129-00071
|
[1] |
SPRING
|
|
| 3. |
400337-00819-DG
|
[1] |
|
|
| 30. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 31. |
S8000141
|
[1] |
O-RING
|
|
| 32. |
430221-00136
|
[1] |
PLUG
|
|
| 33. |
K9001899-DG
|
[1] |
|
|
| 34. |
124-00052-DG
|
[1] |
|
|
| 35. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 36. |
S0560563
|
[4] |
BOLT
|
|
| 37. |
K9003684-DG
|
[2] |
|
|
| 38. |
K9003688-DG
|
[1] |
|
|
| 39. |
S8000341
|
[1] |
O-RING
|
|
| 4. |
K1000737
|
[1] |
BUSH
|
|
| 40. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 41. |
S2215961
|
[4] |
BOLT;SOCKET
|
|
| 42. |
420210-02689-DG
|
[1] |
|
|
| 43. |
S8000341
|
[1] |
O-RING
|
|
| 44. |
S5100603
|
[4] |
WASHER
|
|
| 45. |
S2212861
|
[4] |
BOLT;SOCKET
|
|
| 46. |
K9001159-DG
|
[1] |
|
|
| 47. |
S5102903
|
[1] |
WASHER
|
|
| 48. |
S0521853
|
[1] |
BOLT
|
|
| 49. |
K9001158
|
[2] |
U-BOLT
|
|
| 5. |
110508-18483B-DG
|
[1] |
|
|
| 50. |
S5100603
|
[4] |
WASHER
|
|
| 51. |
S4012633
|
[4] |
NUT
|
|
| 52. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 6. |
110-00081
|
[1] |
DD-BUSH
|
|
| 7. |
115-00073
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001882
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001883
|
[1] |
U-PACKING
|
|
