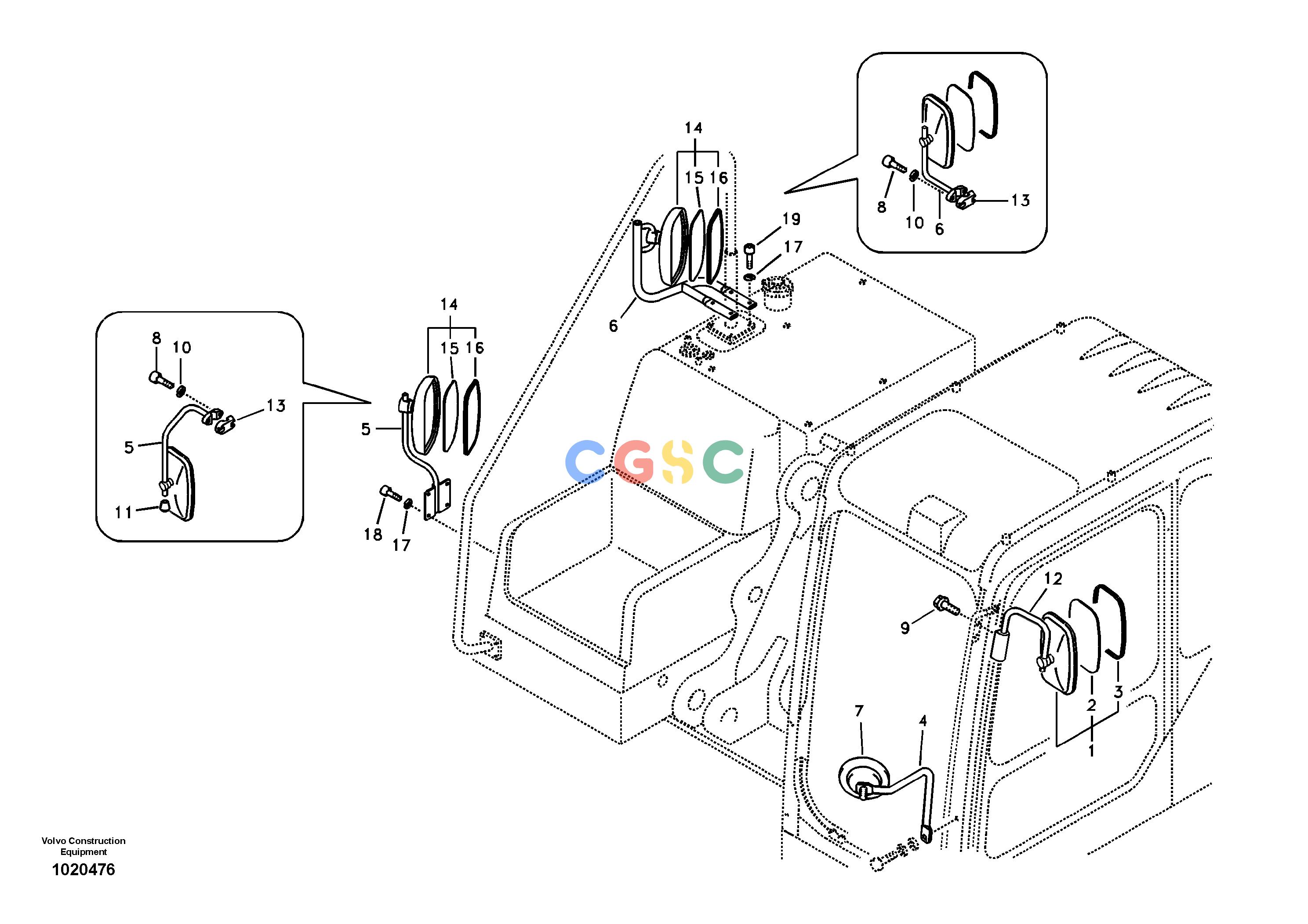

沃尔沃零件查询EC135B Rear view mirrorSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14564772
|
[1] |
Mirror
|
|
| 2. |
VOE14517743
|
[1] |
Mirror
|
SER NO 20001-20018
|
| |
VOE14559368
|
[1] |
Mirror Glass
|
SER NO 20019-
|
| 3. |
VOE14560766
|
[1] |
Spare parts kit
|
|
| |
|
[1] |
Rubber
|
|
| |
|
[4] |
Sleeve
|
|
| |
|
[4] |
Screw
|
|
| 4. |
SA1166-30540
|
[1] |
Support
|
SER NO 20001-20279
|
| 5. |
VOE14514952
|
[1] |
Stay
|
SER NO 20001-20034
|
| |
VOE14539754
|
[1] |
Stay
|
SER NO 20035-
|
| 6. |
VOE14524679
|
[1] |
Stay
|
SER NO 20001-20034
|
| |
VOE14539753
|
[1] |
Stay
|
SER NO 20035-
|
| 7. |
VOE11204584
|
[1] |
Rear view mirror
|
SER NO 20001-20279
|
| 8. |
VOE984080
|
[4] |
Hex. socket screw
|
SER NO 20001-20034
|
| 9. |
VOE946440
|
[2] |
Flange screw
|
|
| 10. |
VOE955922
|
[4] |
Spring washer
|
SER NO 20001-20034
|
| 11. |
VOE14515348
|
[1] |
Cap
|
SER NO 20001-20034
|
| 12. |
VOE14529997
|
[1] |
Support
|
|
| 13. |
VOE14527573
|
[2] |
Block
|
SER NO 20001-20034
|
| 14. |
VOE14564772
|
[2] |
Mirror
|
|
| 15. |
VOE14517743
|
[1] |
Mirror
|
SER NO 20001-20018
|
| |
VOE14559368
|
[1] |
Mirror Glass
|
SER NO 20019-
|
| 16. |
VOE14560766
|
[1] |
Spare parts kit
|
|
| |
|
[1] |
Rubber
|
|
| |
|
[4] |
Sleeve
|
|
| |
|
[4] |
Screw
|
|
| 17. |
VOE992040
|
[8] |
Plain washer
|
SER NO 20035-
|
| 18. |
VOE983251
|
[4] |
Hexagon screw
|
SER NO 20035-
|
| 19. |
VOE997437
|
[4] |
Hexagon screw
|
SER NO 20035-
|
