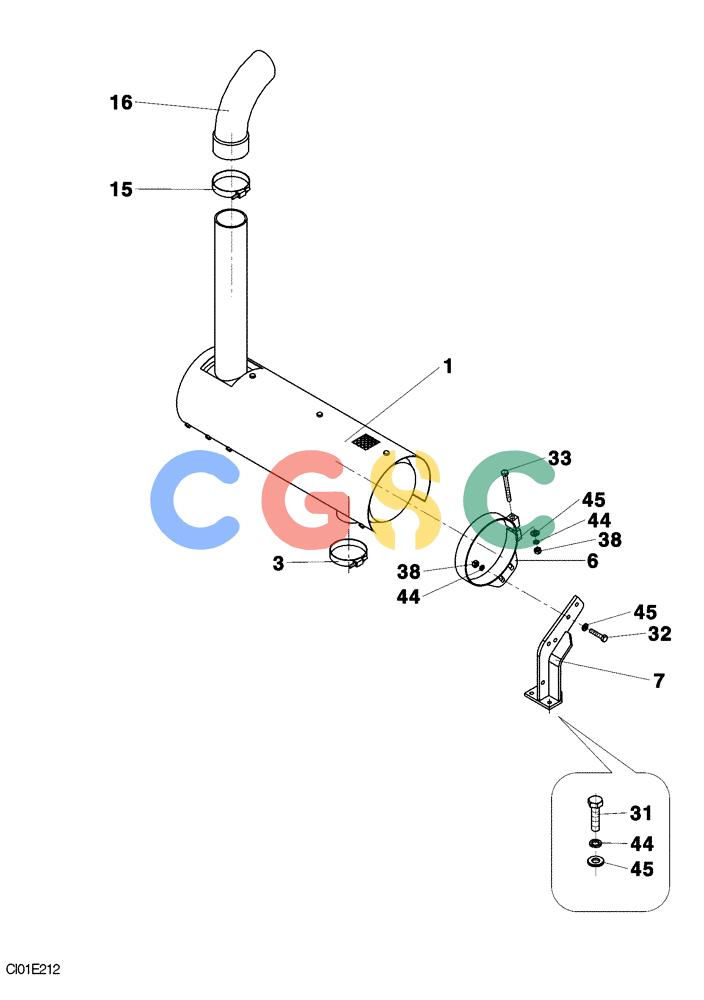

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (02-005-00[01]) - EXHAUST - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104251 | [1] | MUFFLER | STA |
| 3. | ND028148 | [1] | CLAMP | STA |
| 6. | ND103369 | [1] | CLAMP | STA |
| 7. | ND104353 | [2] | SUPPORT | STA |
| 15. | ND098745 | [2] | CLAMP | STA |
| 16. | ND106299 | [1] | EXTENSION | STA |
| 31. | ND021302 | [3] | BOLT | STAM10 x 25 |
| 32. | ND021195 | [2] | BOLT | STAM10 x 35 |
| 33. | ND021206 | [1] | BOLT | STAM10 x 100 |
| 38. | ND021849 | [3] | NUT | STAM8 Superseded by part number: ND034088 |
| 44. | ND035941 | [6] | WASHER | STAID 10 |
| 45. | ND029266 | [6] | WASHER | STAID10 |
