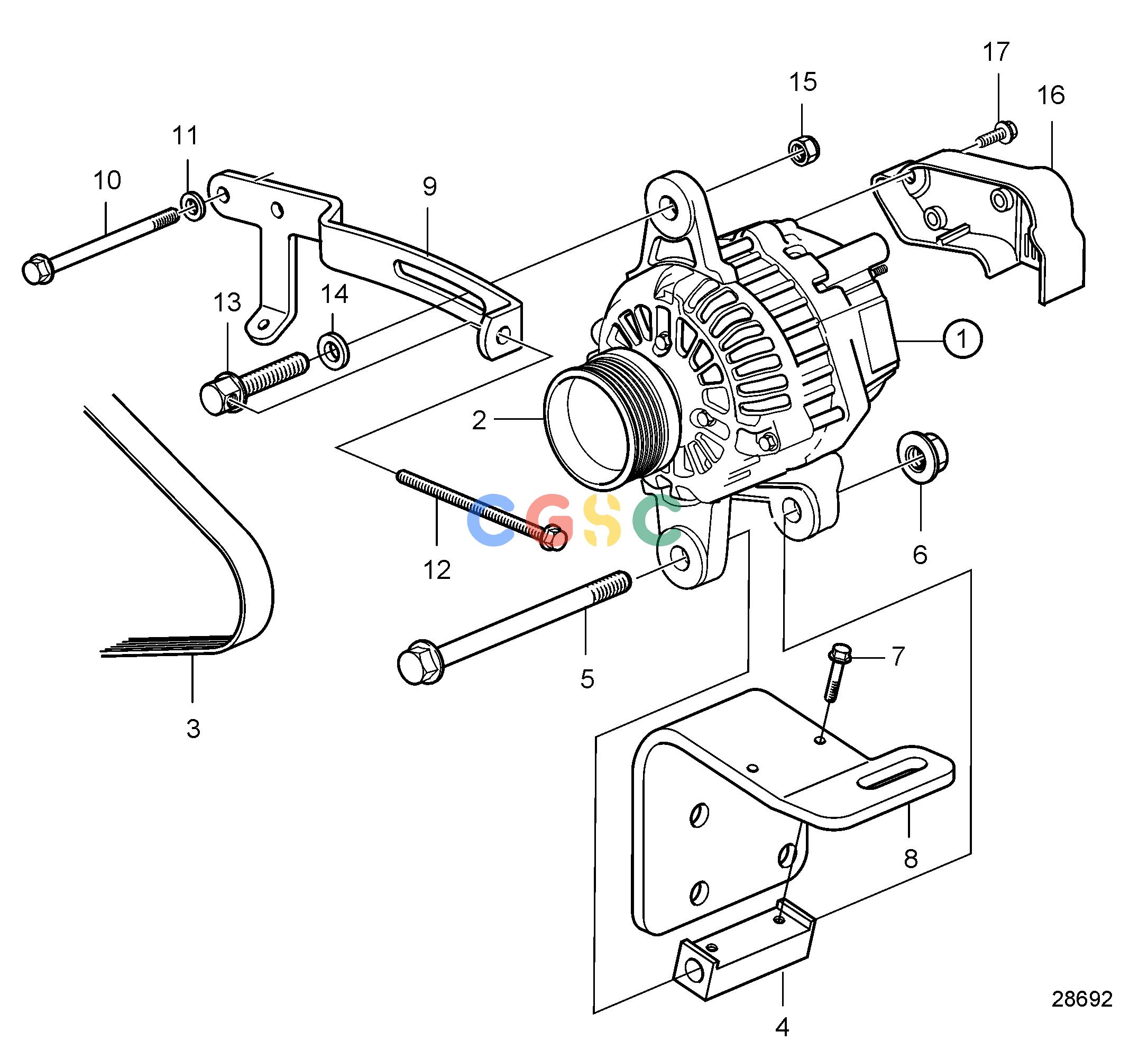

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
126 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3819662
|
[1] |
Alternator
|
14V 115A
|
| 1. |
3803903
|
[1] |
Alternator, exch
|
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
3809625
|
[1] |
Belt
|
|
| 4. |
3812711
|
[1] |
Alternator bracket
|
|
| 5. |
978447
|
[1] |
Flange screw
|
|
| 6. |
971096
|
[1] |
Flange nut
|
|
| 7. |
946470
|
[2] |
Flange screw
|
|
| 8. |
7746500_030
|
|
Engine anchorage, front
|
|
| 8. |
7746500_033
|
|
Engine anchorage, front
|
|
| 9. |
3809628
|
[1] |
Tensioning arm
|
|
| 10. |
1346183
|
[3] |
Screw
|
D1-13
|
| 10. |
3887173
|
[3] |
Screw
|
D1-20
|
| 11. |
861913
|
[3] |
Spring washer
|
D1-13
|
| 12. |
21246605
|
[1] |
Hexagon screw
|
|
| 13. |
861663
|
[1] |
Flange screw
|
|
| 14. |
3580019
|
[1] |
Washer
|
|
| 15. |
21246409
|
[1] |
Flange nut
|
|
| 16. |
21217571
|
[1] |
Housing
|
|
| 17. |
996063
|
[1] |
Flange screw
|
|
