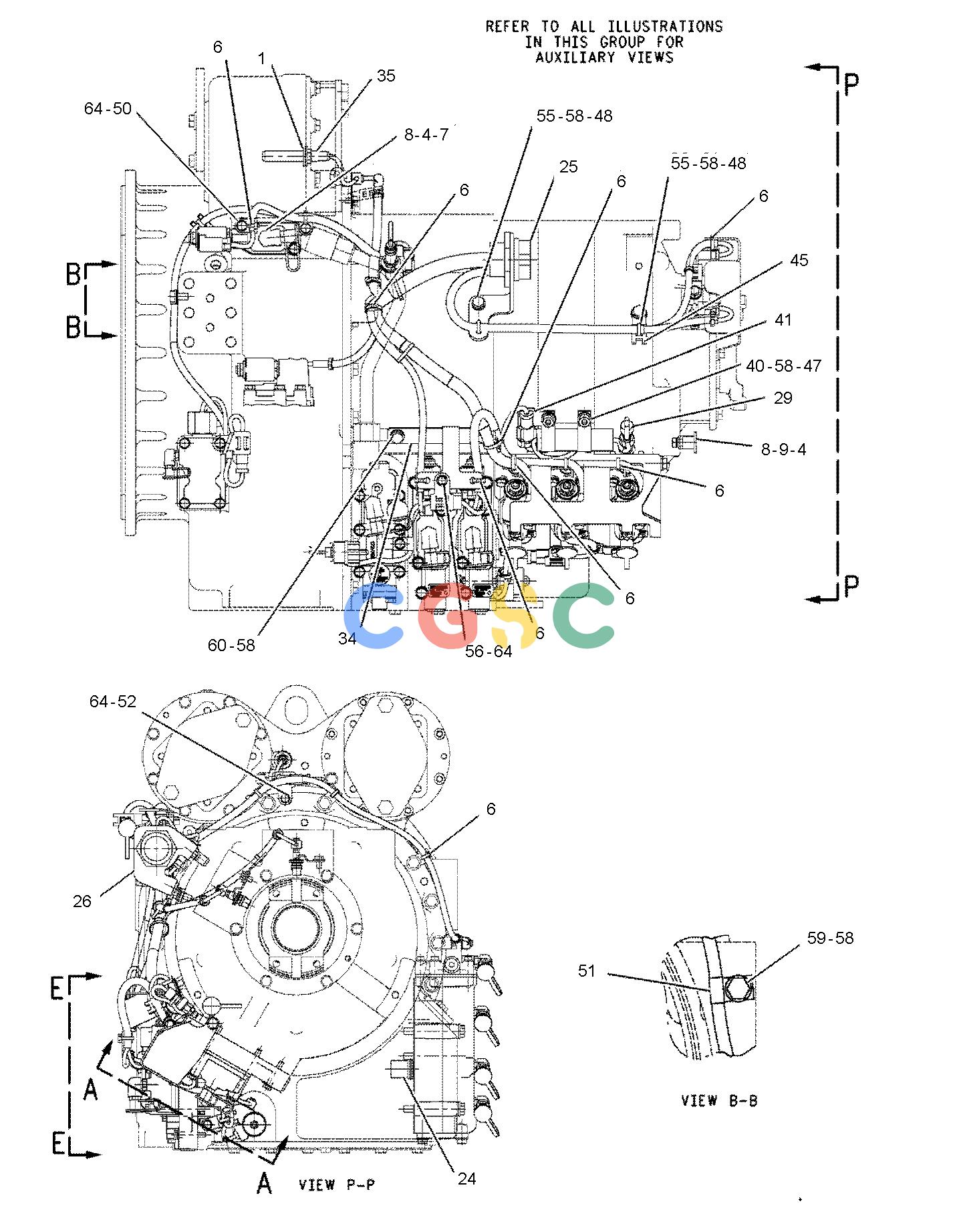

| 1. | 1V-6341 | [2] | SEAL | |
| 2. | 2H-6184 | [1] | SEAL-O-RING | |
| 3. | 2P-1692 | [1] | SEAL-O-RING | |
| 4. | 3J-1907 | [5] | SEAL-O-RING | |
| 5. | 3J-7354 | [2] | SEAL-O-RING | |
| 6. | 3S-2093 | [32] | STRAP-CABLE | |
| 7. | 6V-0484 | [3] | ELBOW | |
| 8. | 6V-0852 | [7] | CAP-DUST | |
| 9. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 10. | 7J-6285 | [5] | SEAL-O-RING | |
| 11. | 7R-8872 | [5] | SEAL-O-RING | |
| 12. | 8S-0768 | [6] | SEAL-O-RING | |
| 13. | 8T-7000 | [1] | SEAL | |
| 14. | 9L-9068 | [10] | DOWEL | |
| 15. | 9M-9545 | [1] | SEAL-O-RING | |
| 16. | 9X-0262 | [1] | ADAPTER | |
| 17. | 9X-4609 | [1] | SEAL-O-RING | |
| 18. | 117-1385 | [2] | SEAL-O-RING | |
| 19. | 118-7226Y | [1] | SENSOR GP-TEMPERATURE(TORQUE CONVERTER) | |
| 20. | 124-9401 | [1] | CLIP(TAB) | |
| 21. | 132-5789 | [3] | CLIP(LADDER) | |
| 22. | 149-0978Y | [1] | VALVE GP-RETARDER HYD CONTROL | |
| 23. | 166-8899 | [5] | PLATE | |
| 24. | 230-3166 | [1] | VALVE GP-RELIEF(TORQUE CONVERTER OUTLET) | |
| 25. | 170-8693 | [1] | HARNESS AS-TRANSMISSION | |
| | 8T-8729 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8N-1521 | [1] | BELL AS-END | |
| | 8N-1523 | [1] | LOCKWASHER | |
| | 9X-6856 | [28] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 7G-7917 | [9] | PLUG-SEAL | |
| | 8N-1513 | [1] | RECEPTACLE AS-CONNECTOR(37-PIN) | |
| | 8N-1522 | [1] | NUT(2-1/4-16-THD) | |
| | 114-8843E | | SLEEVE-PLASTIC(300-CM) | |
| | 8T-8730 | [23] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9X-6772 | [1] | STRAP-CABLE | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(20-CM) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [12] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| 26. | 170-8696 | [1] | BRACKET | |
| 27. | 170-8701 | [1] | GUARD AS | |
| 28. | 172-7970Y | [1] | VALVE GP-RELIEF(TRANSMISSION HYDRAULIC CONTROL)(TRANSMISSION HYDRAULIC CONTROL) | |
| 29. | 178-3082Y | [1] | SENSOR GP-PRESSURE(TRANSMISSION CLUTCH LATCHING) | |
| 30. | 180-3178 | [1] | VALVE GP-RELIEF(TRANSMISSION HYDRAULIC CONTROL) | |
| 31. | 183-9358 | [1] | PLATE | |
| 32. | 189-5746Y | [1] | SENSOR GP-SPEED(TRANSMISSION INPUT) | |
| 33. | 191-8305 | [2] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| 34. | 192-9957 | [1] | GUARD AS | |
| 35. | 193-0421Y | [1] | SENSOR GP-SPEED(ENGINE) | |
| 36. | 196-5865 | [5] | VALVE GP-CONTROL(TRANSMISSION CLUTCH LATCHING) | |
| 37. | 200-8215Y | [1] | VALVE GP-SOLENOID(TRANSMISSION CLUTCH LATCHING) | |
| 38. | 209-6632Y | [1] | VALVE GP-BYPASS(TRANSMISSION OIL FILTER) | |
| 39. | 216-5338Y | [1] | VALVE GP-MODULATING(24-VOLT)(TORQUE CONVERTER LOCKUP CLUTCH) | |
| 39A. | 216-5338Y | [5] | VALVE GP-MODULATING(24-VOLT)(TRANSMISSION CLUTCH) | |
| 40. | 096-4835M | [2] | BOLT-SOCKET HEAD(M10X1.5X16-MM) | |
| 41. | 130-5300 | [4] | CLIP | |
| 42. | 3E-4352 | [2] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 43. | 4B-1226 | [1] | SCREW-MACHINE(10-24X6.35-MM) | |
| 44. | 4N-9170 | [1] | CLIP(LOOP) | |
| 45. | 4P-7428 | [1] | CLIP(LADDER) | |
| 46. | 4P-7581 | [4] | CLIP(LADDER) | |
| 47. | 4S-4455 | [2] | CLIP | |
| 48. | 4S-9191 | [2] | WASHER(12X22.5X5-MM THK) | |
| 49. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 50. | 5P-8347M | [8] | BOLT(M8X1.25X70-MM) | |
| 51. | 5P-9085 | [1] | CLIP(LOOP) | |
| 52. | 6V-2316M | [1] | BOLT(M8X1.25X12-MM) | |
| 53. | 6V-3918M | [15] | BOLT(M8X1.25X50-MM) | |
| 54. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 55. | 6V-4248M | [2] | BOLT(M10X1.5X25-MM) | |
| 56. | 6V-5215M | [8] | BOLT(M8X1.25X16-MM) | |
| 57. | 6V-5223M | [10] | BOLT(M8X1.25X100-MM) | |
| 58. | 6V-5839 | [8] | WASHER(11X21X2.5-MM THK) | |
| 59. | 6V-6317M | [2] | BOLT(M10X1.5X20-MM) | |
| 60. | 6V-8455M | [3] | BOLT(M10X1.5X16-MM) | |
| 61. | 8M-1112 | [1] | SEAL-O-RING | |
| 62. | 8T-0100M | [4] | BOLT(M8X1.25X60-MM) | |
| 63. | 8T-0106M | [4] | BOLT(M12X1.75X100-MM) | |
| 64. | 9M-1974 | [46] | WASHER-HARD(8.8X16X2-MM THK) | |
| 65. | 9X-8268 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
