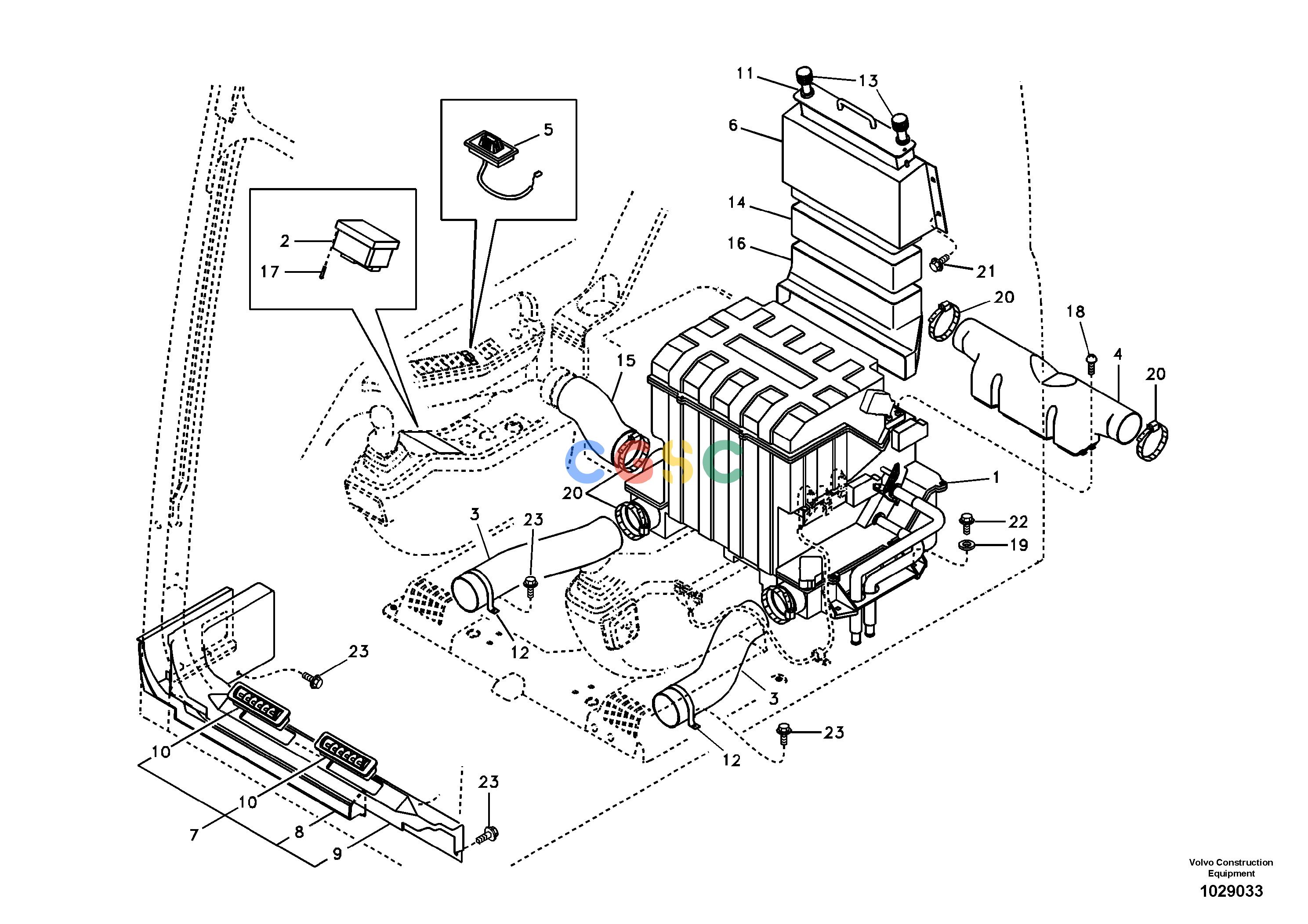

沃尔沃零件查询EC135B Air duct in cabin and cabin floorSER NO 20001-200798277919-8280344NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14532728
|
[1] |
Air Cond
|
|
| |
VOE14376049
|
|
Heater unit
|
|
| 2. |
VOE14530573
|
[1] |
Switch
|
SER NO 20001-20034
|
| |
VOE14590052
|
[1] |
Switch
|
SER NO 20035-
|
| |
VOE14382287
|
|
Switch panel
|
|
| 3. |
VOE14502537
|
[2] |
Hose
|
|
| 4. |
VOE14502539
|
[1] |
Duct
|
|
| 5. |
VOE14514330
|
[1] |
Sensor
|
|
| 6. |
VOE14503262
|
[1] |
Case
|
|
| 7. |
VOE14517758
|
[1] |
Cover
|
|
| 8. |
VOE14503049
|
[1] |
Defroster duct
|
|
| 9. |
VOE14517757
|
[1] |
Duct
|
|
| 10. |
VOE14517615
|
[2] |
Grating
|
|
| 11. |
VOE14503269
|
[1] |
Filter
|
|
| 12. |
VOE14504237
|
[2] |
Bracket
|
|
| 13. |
VOE14504267
|
[2] |
Knob
|
|
| 14. |
VOE14505500
|
[1] |
Grommet
|
|
| 15. |
VOE14505516
|
[1] |
Hose
|
|
| 16. |
VOE14503265
|
[1] |
Duct
|
|
| 17. |
SA9025-04003
|
[4] |
Cross recessed screw
|
|
| 18. |
SA9025-05002
|
[4] |
Cross recessed screw
|
|
| 19. |
SA9285-16000
|
[4] |
Plain washer
|
|
| 20. |
SA9312-10350
|
[5] |
Hose clamp
|
|
| 21. |
VOE946471
|
[4] |
Flange screw
|
|
| 22. |
VOE965185
|
[4] |
Flange screw
|
|
| 23. |
VOE965175
|
[8] |
Flange screw
|
|
