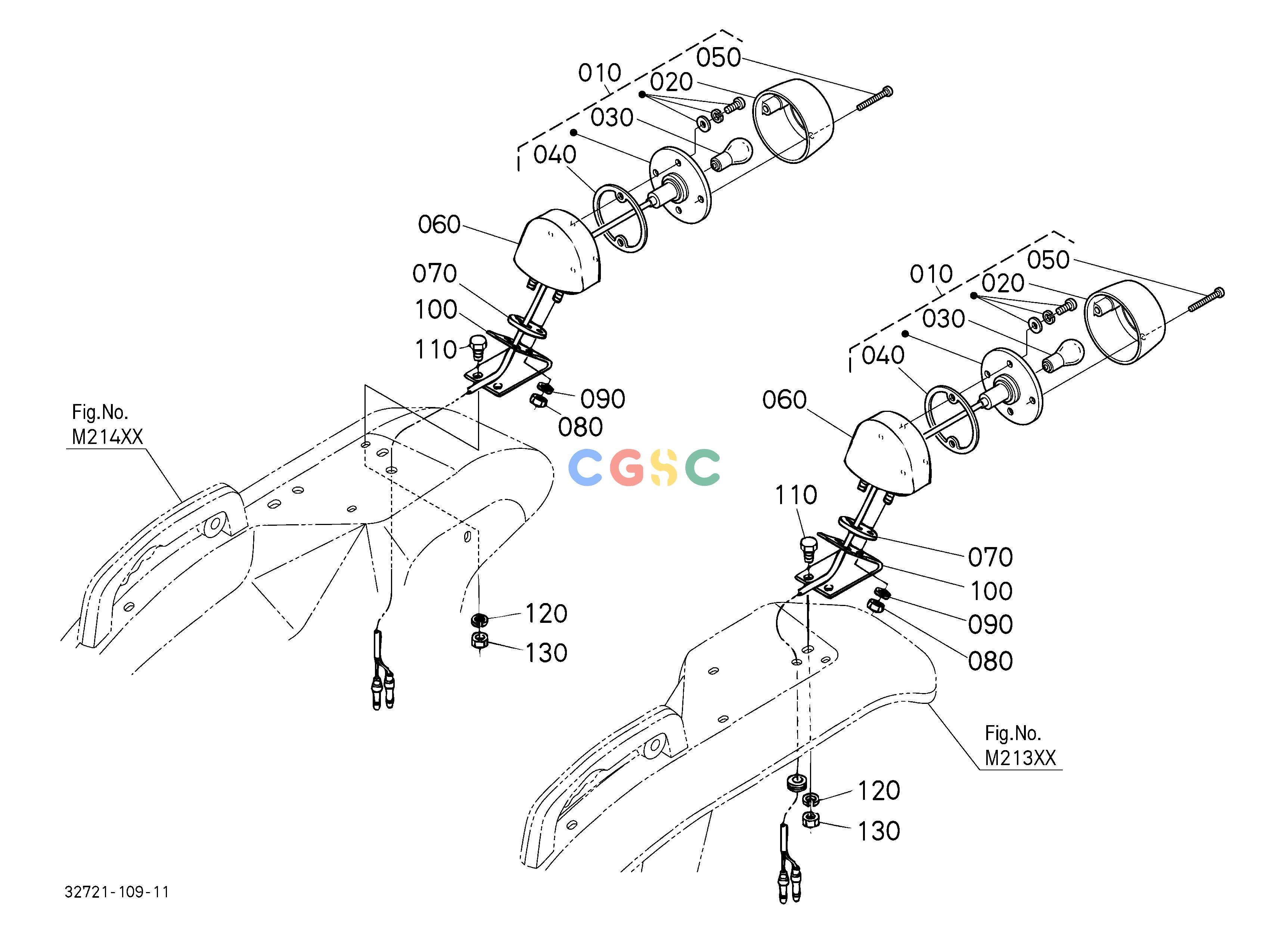

久保田零件查询B30402 TAIL LIGHT ## S.No.>=63269 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC03034100
|
[2] |
ASSY LIGHT TAIL
|
0.2640(lbs); 0.120
|
| 010. |
HTC0034100
|
[2] |
ASSY LIGHT TAIL
|
0.2640(lbs); 0.120
|
| 020. |
TC03099210
|
[2] |
LENS TAIL LIGHT
|
0.0770(lbs); 0.035
|
| 030. |
3435034140
|
[2] |
BULB TAIL LIGHT
|
0.0176(lbs); 0.008
|
| 040. |
TC03099220
|
[2] |
GASKET LENS
|
0.0264(lbs); 0.012
|
| 050. |
0305650335
|
[4] |
SCREW
|
0.0022(lbs); 0.001
|
| 060. |
6641655542
|
[2] |
BRACKET TAIL LIGHT
|
0.2332(lbs); 0.106
|
| 070. |
3272155310
|
[2] |
CUSHION
|
0.0308(lbs); 0.014
|
| 080. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
0451260060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 100. |
3272152750
|
[2] |
STAY
|
0.2860(lbs); 0.130
|
| 110. |
0105350616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 120. |
0451260060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 130. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
