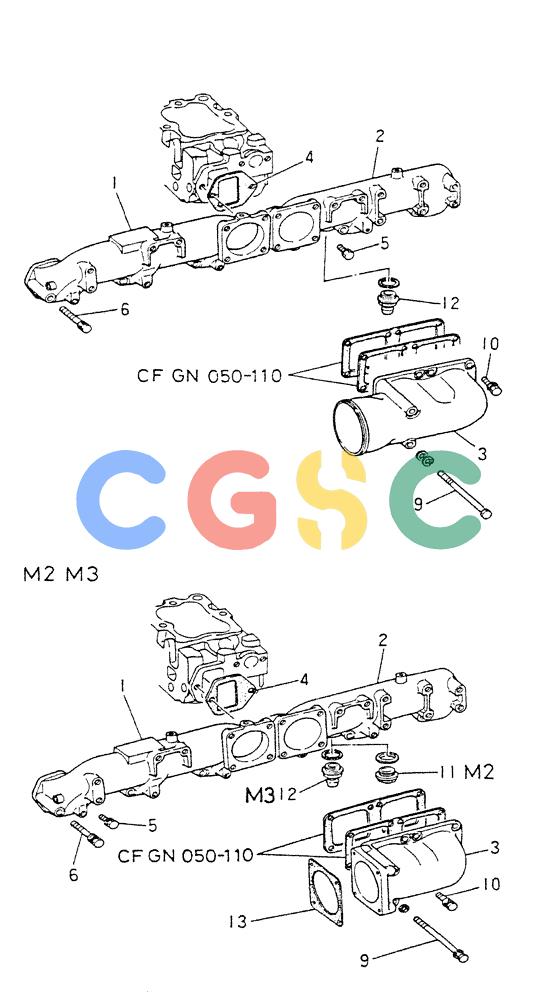

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-014) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS09 | [1] | INLET MANIFOLD(M3) | |
| . . | 6D221CZ-KS04 | [1] | INLET MANIFOLD(M1) | |
| 1. | VAME053030 | [1] | MANIFOLD MANIFOLD,INLET FR | MANIFOLD MANIFOLD,INLET FR |
| 2. | VA3093004400 | [1] | MANIFOLD,INLET RE | |
| 3. | VAME058533 | [1] | INLET MANIFOLD MANIFOLD,INLET (FOR M1) | INLET MANIFOLD MANIFOLD,INLET (FOR M1) |
| . . | VA3093091700 | [1] | INLET MANIFOLD | KOBNSS (FOR M2 & M3) |
| 4. | VA3093000501 | [6] | GASKET | KOBINLET MANIF Superseded by part number: 134855A1 |
| 5. | VAMF303365 | [6] | WASHER | KOBB0LT,W/W5R 10X30 Superseded by part number: 133169A1 |
| 6. | VAMF303380 | [6] | SCREW | KOBBOLT,W/WSR 10X100 |
| 9. | VAMH000213 | [2] | BOLT BOLT 10X195 (FOR M1) | BOLT BOLT 10X195 (FOR M1) |
| . . | VAMH000664 | [2] | BOLT, W/WSR 10X163 (FOR M2 & M3) | |
| . . | VAMF450406 | [2] | WASHER | KOBWASHER,SPG 10 (FOR M1) |
| . . | VAMF450006 | [2] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 10. | VAMH000245 | [5] | BOLT | KOBBOLT,W/WSR 10X58 |
| . . | VAMF303374 | [1] | BOLT,W/WSR 10X65 | |
| 11. | VAMH037723 | [1] | PLUG | KOBPLUG (FOR M2) |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 (FOR M2) |
| 12. | VAMH037397 | [1] | HYD CONNECTOR | KOBCONNECTOR (FOR M1 & M3) Superseded by part number: 240084A1 |
| 13. | VA3113303800 | [1] | O-RING | KOBGASKET (FOR M2 & M3) |
