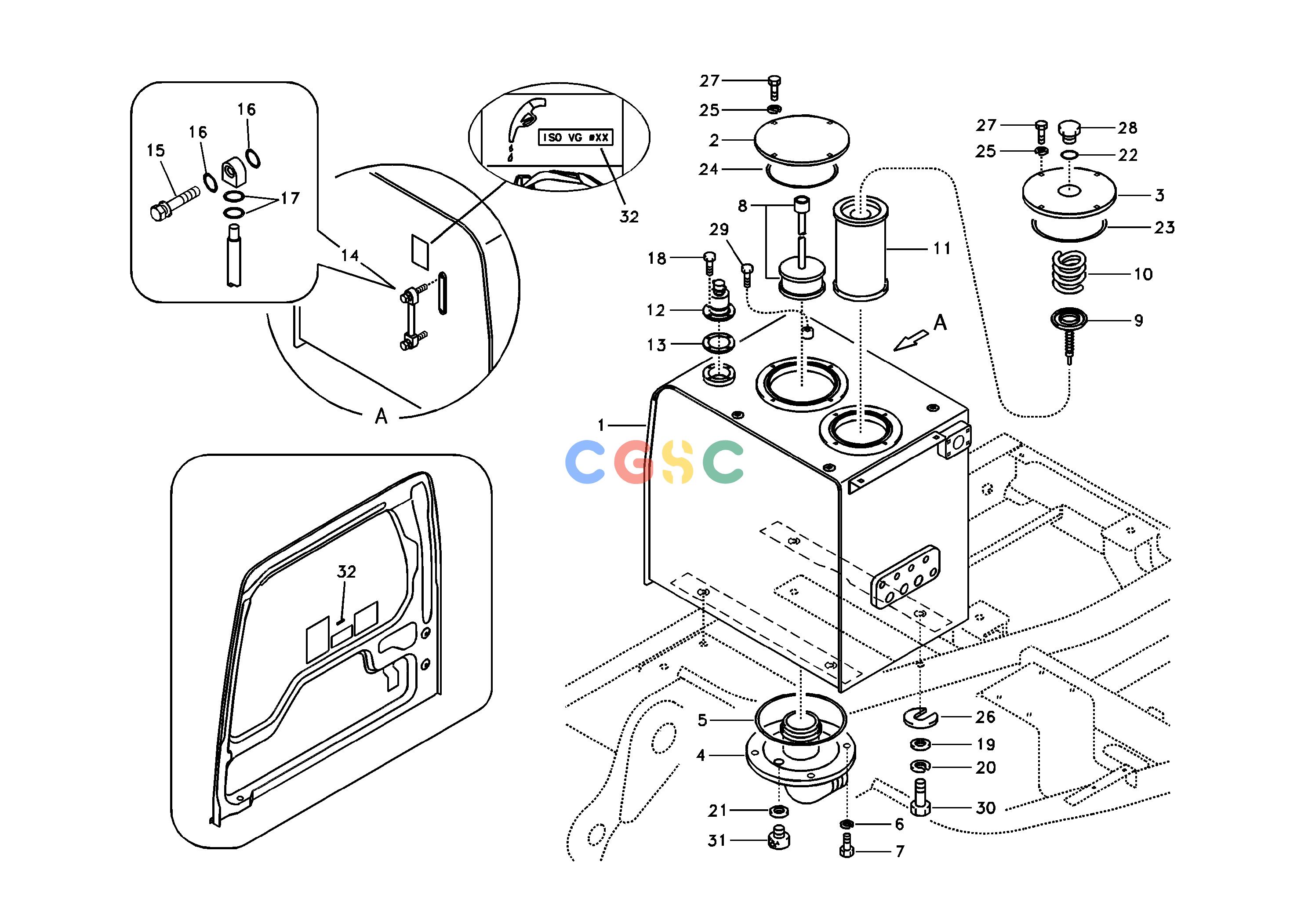

沃尔沃零件查询EC135B Hydraulic oil tankSER NO 20001-200798277787-8277969NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14505863
|
[1] |
Hydraulic fluid tank
|
|
| 2. |
VOE14507925
|
[1] |
Cover
|
|
| 3. |
VOE14532369
|
[1] |
Cover
|
|
| 4. |
VOE14513746
|
[1] |
Cover
|
|
| 5. |
VOE960259
|
[1] |
O-ring
|
|
| 6. |
VOE992040
|
[4] |
Plain washer
|
|
| 7. |
VOE983251
|
[4] |
Hexagon screw
|
|
| 8. |
VOE14531866
|
[1] |
Strainer
|
|
| |
SA1141-00010
|
[1] |
Strainer
|
|
| 9. |
VOE14530987
|
[1] |
Valve
|
|
| 10. |
VOE14530988
|
[1] |
Spring
|
|
| 11. |
VOE14509379
|
[1] |
Filter element
|
|
| 12. |
VOE14561585
|
[1] |
Venting
|
|
| |
VOE14500233
|
[1] |
Filter element
|
|
| 13. |
VOE14525449
|
[1] |
Seal
|
|
| 14. |
VOE14532362
|
[1] |
Gauge
|
|
| 15. |
VOE14517557
|
[2] |
Bolt
|
|
| 16. |
VOE983497
|
[4] |
O-ring
|
|
| 17. |
VOE990557
|
[4] |
O-ring
|
|
| 18. |
VOE969422
|
[4] |
Six point socket screw
|
|
| 19. |
VOE60110287
|
[4] |
Washer
|
|
| 20. |
SA9213-20000
|
[4] |
Spring washer
|
|
| 21. |
VOE949329
|
[1] |
Gasket
|
|
| 22. |
VOE990610
|
[1] |
O-ring
|
|
| 23. |
VOE960254
|
[1] |
O-ring
|
|
| 24. |
VOE960259
|
[1] |
O-ring
|
|
| 25. |
VOE992040
|
[8] |
Plain washer
|
|
| 26. |
VOE14881065
|
[5] |
Shim
|
|
| 27. |
VOE983251
|
[8] |
Hexagon screw
|
|
| 28. |
VOE14529324
|
[1] |
Plug
|
|
| 29. |
VOE991636
|
[1] |
Hexagon screw
|
|
| 30. |
VOE991647
|
[4] |
Hexagon screw
|
|
| 31. |
VOE14722461
|
[1] |
Draining valve
|
|
| 32. |
SA1192-04700
|
|
Decal
|
ISO VG No.32
|
| |
SA1192-04880
|
|
Decal
|
ISO VG No.46
|
| |
SA1192-04710
|
|
Decal
|
ISO VG No.68
|
