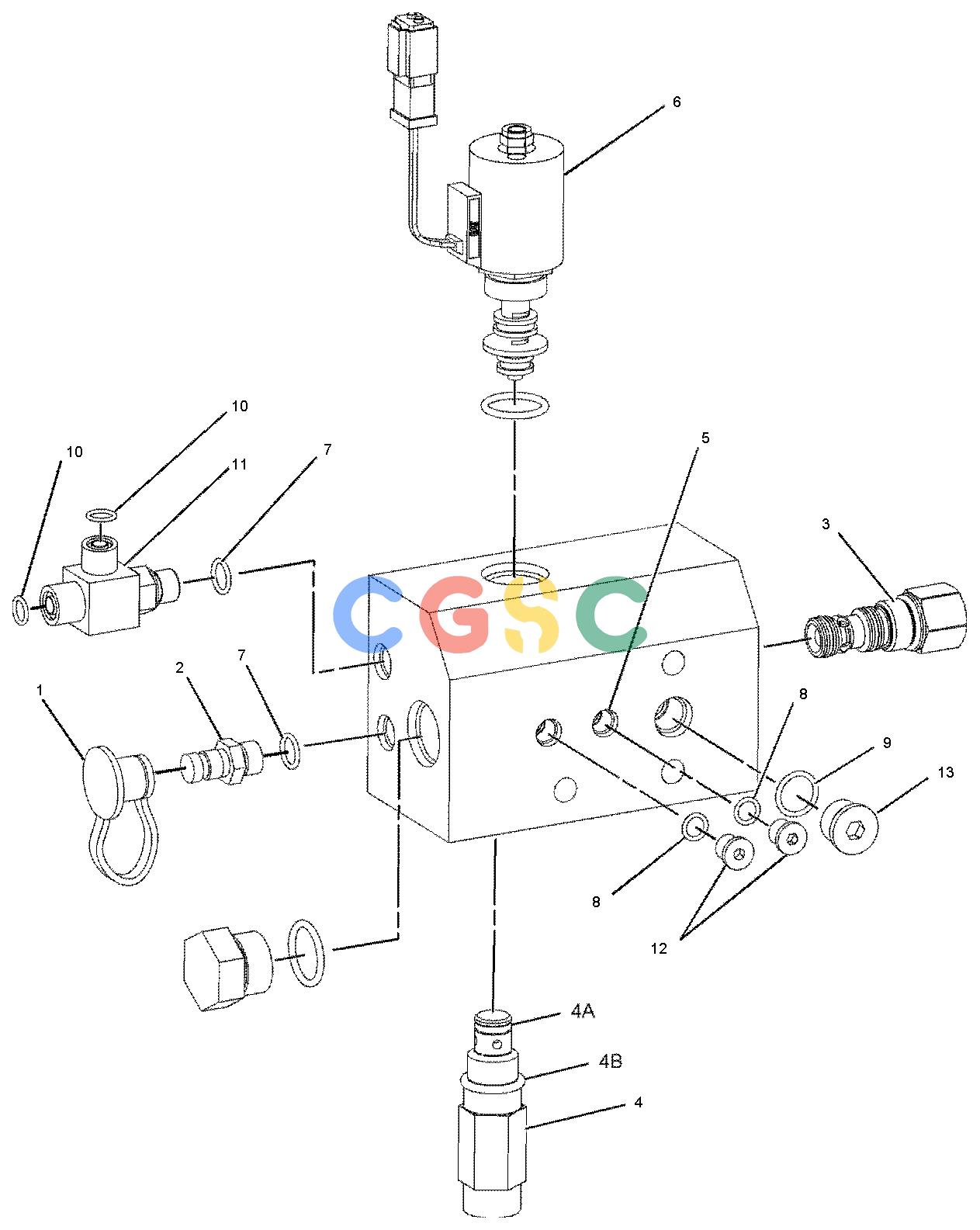

卡特零件查询（725） 148-9368: VALVE GP-SOLENOID & RELIEF
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 3. | 148-9361L | [1] | VALVE GP-DIVERTER | |
| 4. | 277-6436J | [1] | VALVE GP-RELIEF(OUTPUT TRANSFER GEAR) | |
| 4A. | 2M-9780 | [1] | SEAL-O-RING | |
| 4B. | 6V-8398 | [1] | SEAL-O-RING | |
| 5. | 148-9365 | [1] | ORIFICE | |
| 6. | 152-8385Y | [1] | VALVE GP-SOLENOID(24-VOLT) | |
| 7. | 3J-1907 | [2] | SEAL-O-RING | |
| 8. | 3J-7354 | [2] | SEAL-O-RING | |
| 9. | 3K-0360 | [1] | SEAL-O-RING | |
| 10. | 6V-8397 | [2] | SEAL-O-RING | |
| 11. | 6V-8781 | [1] | TEE | |
| 12. | 9S-8002 | [2] | PLUG(7/16-20-THD) | |
| 13. | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 141-0888J | [1] | KIT-SEAL(RIDE CONTROL) | |
| | | | (INCLUDES SEAL-O-RING & BACKUP RING) |
| | 120-8514L | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | Y | | SEPARATE ILLUSTRATION |
