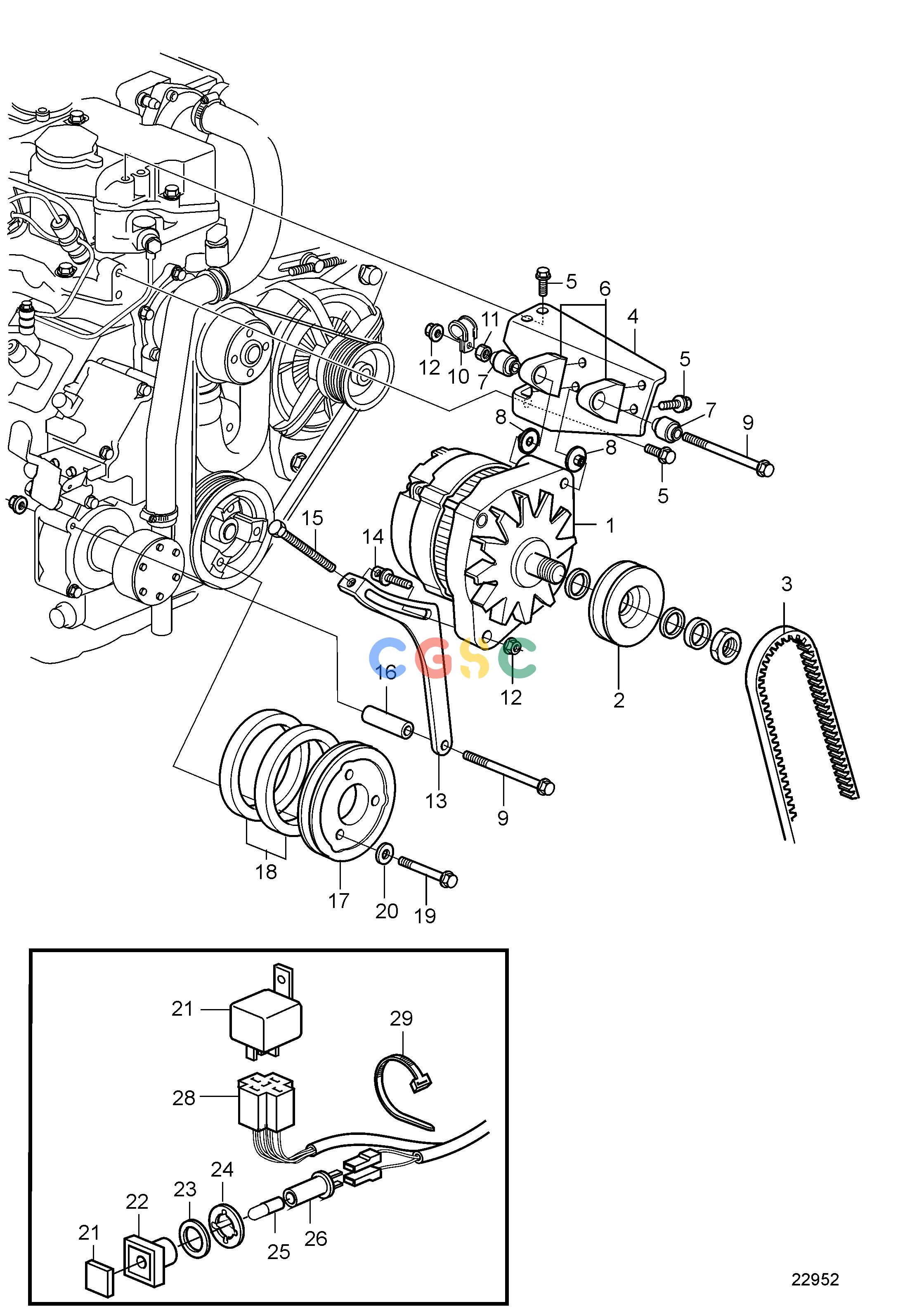

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
965 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873770
|
[1] |
Alternator
|
14V, 60A
|
| 1. |
3803444
|
[1] |
Alternator, exch
|
14V, 60A
|
| 1. |
872927
|
[1] |
Alternator
|
28V, 40A
|
| 1. |
3803619
|
[1] |
Alternator, exch
|
28V, 40A
|
| 2. |
841813
|
[1] |
Pulley
|
|
| 3. |
977525
|
[1] |
V-belt
|
|
| 4. |
3819248
|
[1] |
Mounting plate
|
|
| 5. |
946440
|
[7] |
Flange screw
|
|
| 6. |
3580749
|
[2] |
Anchorage
|
|
| 7. |
859273
|
[2] |
Rubber bushing
|
|
| 8. |
859274
|
[2] |
Washer
|
|
| 9. |
968553
|
[2] |
Flange screw
|
|
| 10. |
949746
|
[1] |
Clamp
|
|
| 11. |
955782
|
[1] |
Hexagon nut
|
|
| 12. |
945408
|
[2] |
Flange nut
|
|
| 13. |
3884026
|
[1] |
Tensioning arm
|
|
| 14. |
861663
|
[1] |
Flange screw
|
|
| 15. |
977820
|
[1] |
Hexagon screw
|
|
| 16. |
823497
|
[1] |
Spacer sleeve
|
|
| 17. |
3581036
|
[1] |
Pulley
|
|
| 18. |
3583572
|
[2] |
Spacer
|
|
| 19. |
965181
|
[3] |
Flange screw
|
|
| 20. |
976944
|
[3] |
Washer
|
|
| 21. |
1324492
|
[1] |
Relay
|
|
| 22. |
838455
|
[1] |
Retainer
|
|
| 23. |
829714
|
[1] |
Sealing ring
|
|
| 24. |
967583
|
[1] |
Retainer
|
|
| 25. |
19923
|
[1] |
Bulb
|
|
| 26. |
808175
|
[1] |
Bulb socket
|
|
| 27. |
838457
|
[1] |
Symbol strip
|
|
| 28. |
838542
|
[1] |
Cable block
|
|
| 29. |
948211
|
[10] |
Cable tie
|
|
