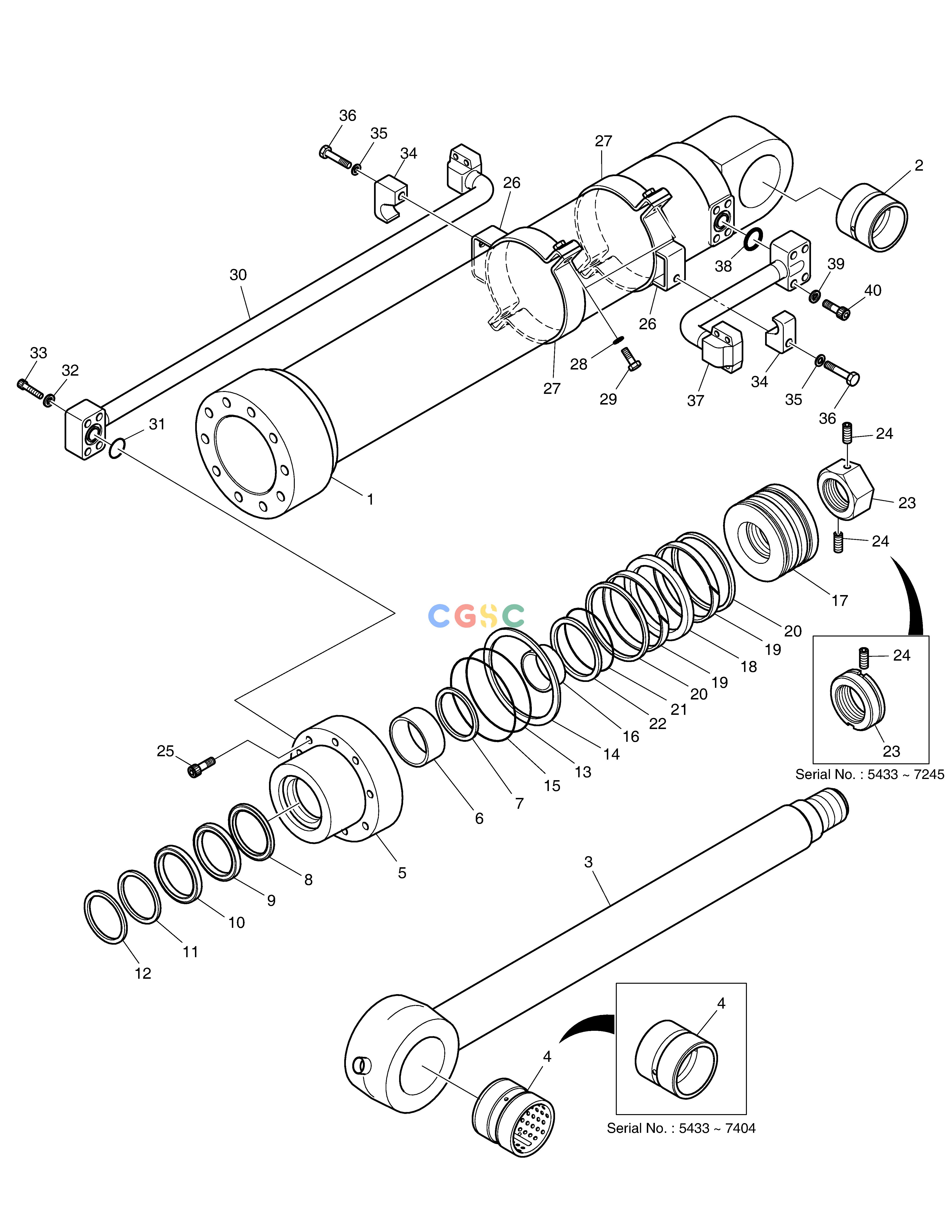

斗山零件查询BUCKET CYLINDER - ARM 3.5m DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001892
|
[1] |
SEAL KIT;BUCKET CYLINDER
|
|
| -. |
400310-00216A
|
[1] |
|
400310-00216B
|
| -. |
400310-00216B
|
[1] |
|
|
| -. |
K1046333
|
[1] |
BUCKET CYLINDER
|
400310-00216
|
| -. |
400310-00216
|
[1] |
|
400310-00216A
|
| 1. |
420406-01076
|
[1] |
|
|
| 1. |
K9007372
|
[1] |
TUBE ASS'Y
|
420406-01076
|
| 10. |
K9001404
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00084
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011151
|
[1] |
O-RING
|
|
| 14. |
1.180-00278
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011201
|
[1] |
O-RING
|
|
| 16. |
K9001406
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001871
|
[1] |
PISTON
|
|
| 18. |
K9001891
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00055
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00067A
|
[1] |
|
|
| 2. |
K1037853A
|
[1] |
BUSH
|
131008-00067A
|
| 20. |
K9001872
|
[2] |
RING;DUST
|
|
| 21. |
180-00276
|
[1] |
O-RING
|
|
| 22. |
K9001410
|
[2] |
RING;BACK UP
|
|
| 23. |
K9001862
|
[1] |
NUT;PISTON
|
120312-00047A
|
| 23. |
120312-00047A
|
[1] |
NUT,PISTON
|
|
| 24. |
1.120-00219
|
[1] |
SCREW;SET
|
|
| 24. |
1.120-00219
|
[2] |
SCREW;SET
|
|
| 25. |
S2222171
|
[10] |
BOLT
|
|
| 26. |
K9001873
|
[2] |
PIPE BAND ASS'Y
|
|
| 27. |
K9001874
|
[2] |
BAND;PIPE
|
|
| 28. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 29. |
S0560563
|
[4] |
BOLT
|
|
| 3. |
400337-00453
|
[1] |
|
400337-00453A
|
| 3. |
400337-00453A
|
[1] |
|
400337-00453B
|
| 3. |
400337-00453B
|
[1] |
|
|
| 3. |
K9007371
|
[1] |
ROD ASS'Y
|
400337-00453
|
| 30. |
K9003470
|
[1] |
PIPE ASS'Y-R
|
|
| 31. |
S8000281
|
[1] |
O-RING
|
|
| 32. |
S5100603
|
[4] |
WASHER
|
|
| 33. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 34. |
K9001413
|
[2] |
CLAMP;PIPE
|
|
| 35. |
S5100603
|
[2] |
WASHER
|
|
| 36. |
S2221873
|
[2] |
BOLT
|
|
| 37. |
K9003471
|
[1] |
PIPE ASS'Y-H
|
|
| 38. |
S8000281
|
[1] |
O-RING
|
|
| 39. |
S5100603
|
[4] |
WASHER
|
|
| 4. |
131008-00067A
|
[1] |
|
131004-00027A
|
| 4. |
131004-00027A
|
[1] |
|
|
| 4. |
K1037853A
|
[1] |
BUSH
|
131008-00067A
|
| 40. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 5. |
K9001870
|
[1] |
COVER;ROD
|
|
| 6. |
110-00097
|
[1] |
DD-BUSH
|
|
| 7. |
K9001401
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001402
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001403
|
[1] |
U-PACKING
|
|
