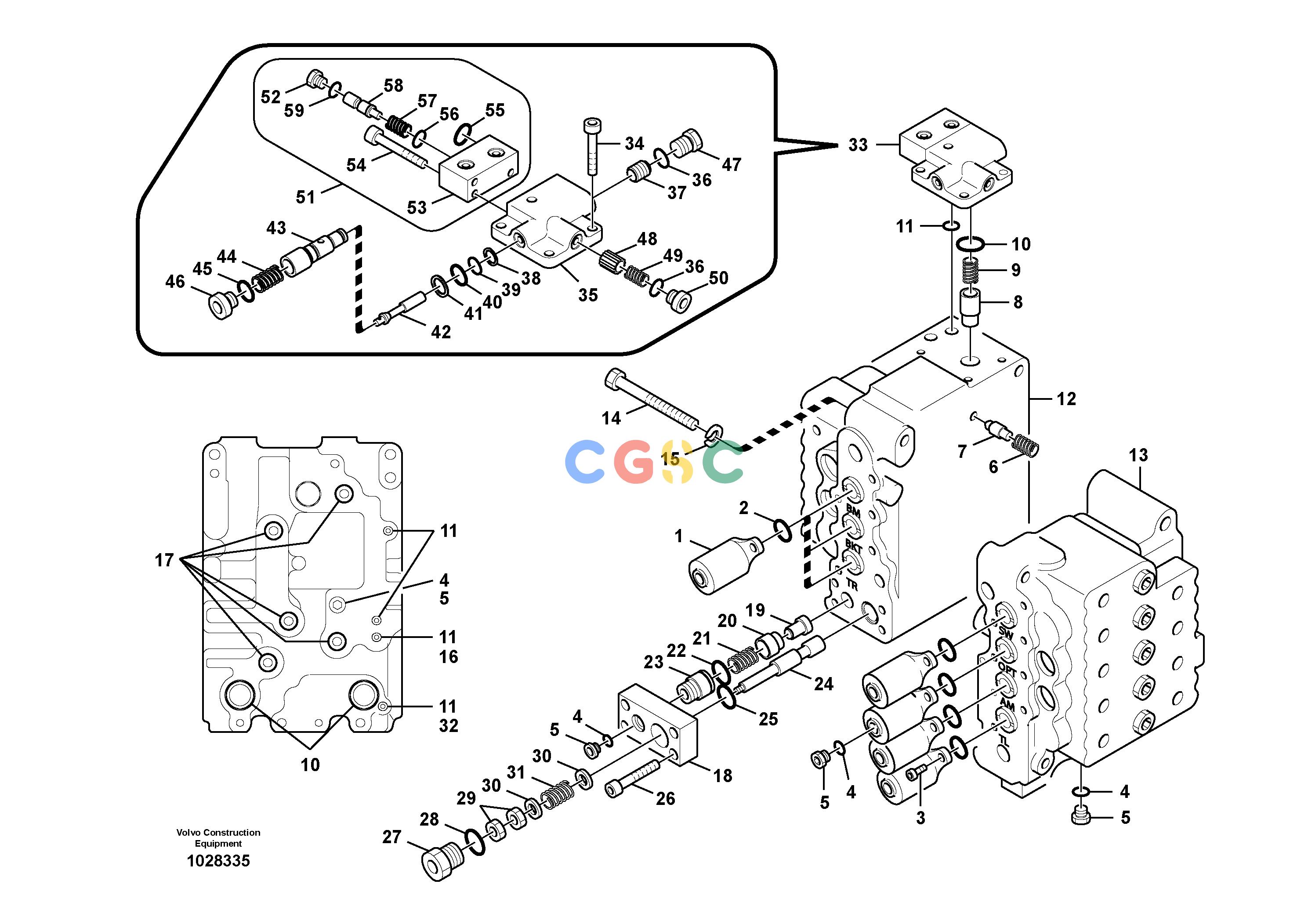

沃尔沃零件查询EC135B Main control valve, relief valve and boom holdingSER NO 20001-200798278027-NoneVOE8278027NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
855 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14550306
|
[1] |
Control valve
|
|
| 1. |
SA8230-10450
|
[7] |
Cover
|
|
| 2. |
VOE990566
|
[7] |
O-ring
|
|
| 3. |
SA8230-22990
|
[14] |
Hex. socket screw
|
|
| 4. |
VOE983502
|
[4] |
O-ring
|
|
| 5. |
SA7273-10751
|
[4] |
Cap
|
|
| 6. |
SA7273-10560
|
[1] |
Spring
|
|
| 7. |
SA7273-10140
|
[1] |
Valve
|
|
| 8. |
SA8230-11300
|
[1] |
Valve
|
|
| 9. |
SA8230-12840
|
[1] |
Spring
|
|
| 10. |
VOE983527
|
[3] |
O-ring
|
|
| 11. |
VOE983497
|
[5] |
O-ring
|
|
| 12. |
VOE14552560
|
[1] |
Housing
|
|
| 13. |
VOE14552478
|
[1] |
Housing
|
|
| 14. |
SA8230-00580
|
[7] |
Bolt
|
|
| 15. |
VOE955923
|
[7] |
Spring washer
|
|
| 16. |
SA8230-32900
|
[1] |
Bushing
|
|
| 17. |
VOE968564
|
[5] |
O-ring
|
|
| 18. |
SA8230-10480
|
[1] |
Cover
|
|
| 19. |
SA8230-32760
|
[1] |
Poppet
|
|
| 20. |
SA8230-11440
|
[1] |
Control sleeve
|
|
| 21. |
SA8230-12870
|
[1] |
Spring
|
|
| 22. |
VOE990606
|
[1] |
O-ring
|
|
| 23. |
SA8230-13330
|
[1] |
Guide
|
|
| 24. |
SA8230-10830
|
[1] |
Control plunger
|
|
| 25. |
VOE990581
|
[1] |
O-ring
|
|
| 26. |
SA8230-23030
|
[4] |
Bolt
|
|
| 27. |
SA8230-11930
|
[1] |
Cap
|
|
| 28. |
VOE983510
|
[1] |
O-ring
|
|
| 29. |
SA8230-00690
|
[2] |
Nut
|
|
| 30. |
SA8230-13320
|
[2] |
Guide
|
|
| 31. |
SA8230-32890
|
[1] |
Spring
|
|
| 32. |
VOE14501630
|
[1] |
Orifice
|
|
| 33. |
VOE14531325
|
[1] |
Valve
|
|
| 34. |
VOE984088
|
[4] |
Hex. socket screw
|
|
| 35. |
VOE14535505
|
[1] |
Cover
|
|
| 36. |
VOE983505
|
[2] |
O-ring
|
|
| 37. |
VOE14521259
|
[1] |
Piston
|
|
| 38. |
VOE14880812
|
[1] |
Back-up ring
|
|
| 39. |
VOE983495
|
[1] |
O-ring
|
|
| 40. |
VOE983497
|
[1] |
O-ring
|
|
| 41. |
VOE14880814
|
[1] |
Back-up ring
|
|
| 42. |
SA7273-10080
|
[1] |
Poppet
|
|
| 43. |
SA8230-35950
|
[1] |
Sleeve
|
|
| 44. |
SA8230-36080
|
[1] |
Spring
|
|
| 45. |
VOE968564
|
[1] |
O-ring
|
|
| 46. |
SA8230-37030
|
[1] |
Cap
|
|
| 47. |
SA7273-10370
|
[1] |
Plug
|
|
| 48. |
SA7273-10090
|
[1] |
Poppet
|
|
| 49. |
SA7273-10490
|
[1] |
Spring
|
|
| 50. |
SA9415-11032
|
[1] |
Plug
|
|
| 51. |
SA8230-35830
|
[1] |
Selector valve
|
|
| 52. |
SA7273-10751
|
[1] |
Cap
|
|
| 53. |
SA8230-35800
|
[1] |
Cover
|
|
| 54. |
SA8230-35670
|
[3] |
Bolt
|
|
| 55. |
VOE983509
|
[1] |
O-ring
|
|
| 56. |
VOE990739
|
[1] |
O-ring
|
|
| 57. |
SA7273-10590
|
[1] |
Spring
|
|
| 58. |
SA8230-35850
|
[1] |
Piston
|
|
| 59. |
VOE983502
|
[1] |
O-ring
|
|
| 100. |
VOE14535506
|
[1] |
Seal
|
|
