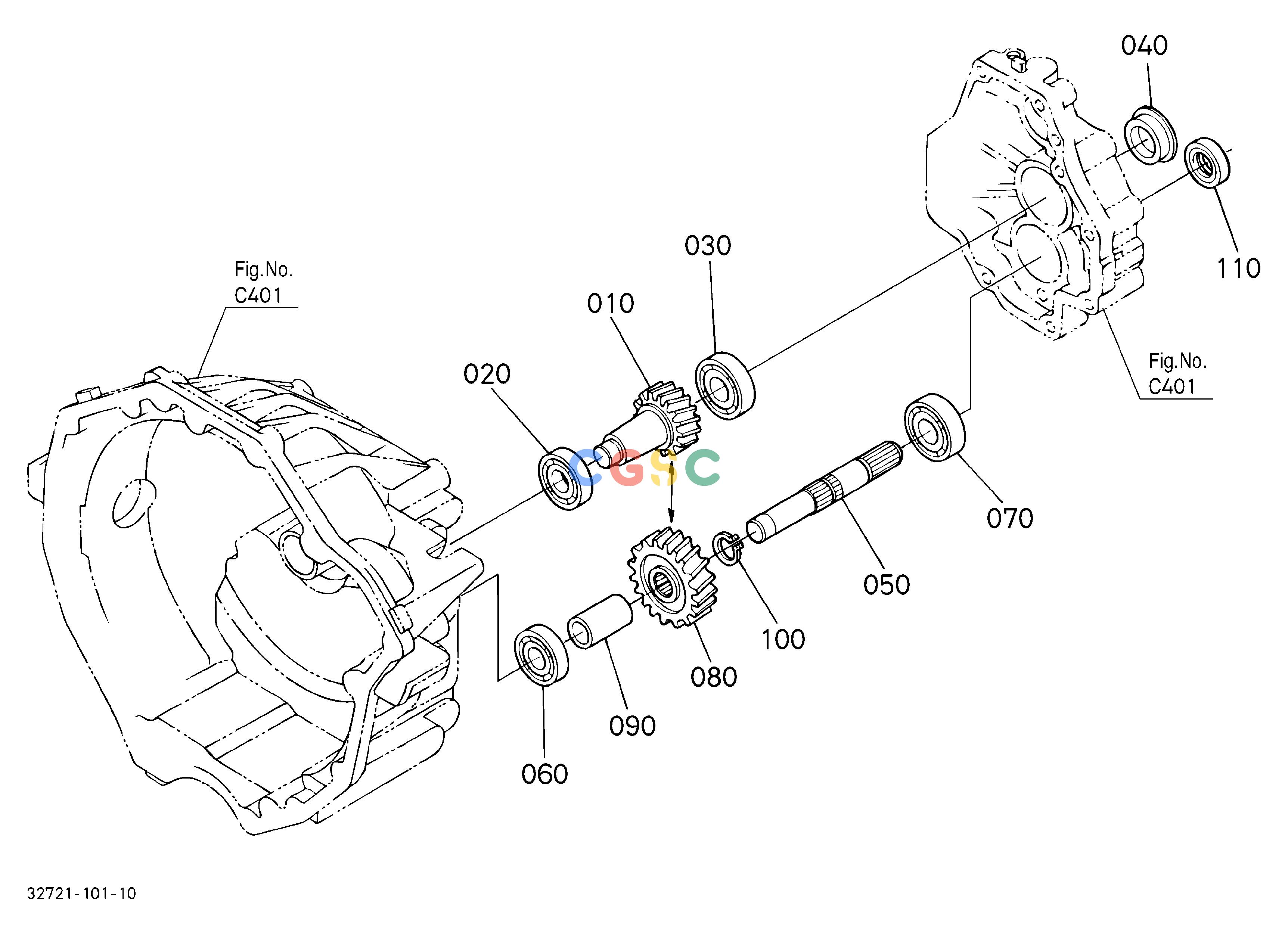

久保田零件查询D10300 FRONT SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05013610
|
[1] |
SHAFT FRONT
|
0.9240(lbs); 0.420
|
| 020. |
0810106203
|
[1] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 030. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 040. |
4105115820
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 040. |
6A10012180
|
[1] |
PLUG
|
0.0484(lbs); 0.022
|
| 050. |
6C04013610
|
[1] |
SHAFT FRONT
|
0.0000(lbs); 0.000
|
| 050. |
6C04013613
|
[1] |
SHAFT FRONT
|
0.6160(lbs); 0.280
|
| 060. |
0810106203
|
[1] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 070. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 080. |
6C05013710
|
[1] |
GEAR
|
0.6820(lbs); 0.310
|
| 090. |
6C04013670
|
[1] |
COLLAR
|
0.0880(lbs); 0.040
|
| 100. |
0461200200
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 110. |
6C04013630
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 110. |
6636339560
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
