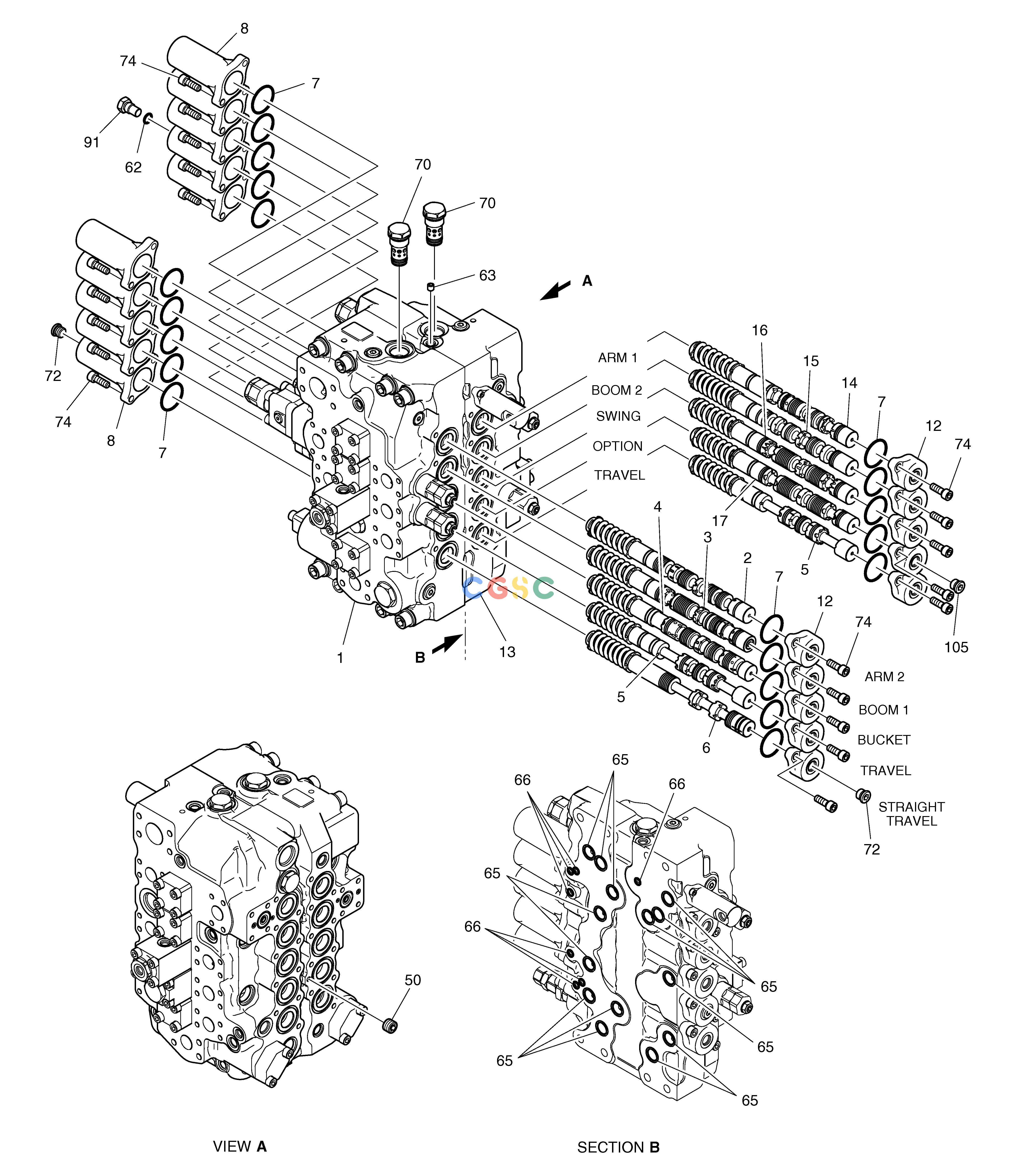

斗山零件查询CONTROL VALVE(2) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
112 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1025391
|
[1] |
VALVE;CONTROL
|
|
| 1. |
423-00096
|
[1] |
HOUSING;VALVE
|
|
| 105. |
181-00701
|
[1] |
PLUG ASS'Y
|
|
| 12. |
430-00035
|
[10] |
CAP
|
|
| 13. |
423-00097
|
[1] |
HOUSING;VALVE
|
|
| 14. |
K9003672
|
[1] |
SPOOL ASS'Y-ARM1
|
|
| 15. |
K9003673
|
[1] |
SPOOL ASS'Y-BOOM2
|
|
| 16. |
K9001809
|
[1] |
SPOOL ASS'Y-SWING
|
|
| 17. |
K9001810
|
[1] |
SPOOL ASS'Y-OPTION
|
|
| 2. |
424-00185
|
[1] |
SPOOL ASS'Y-ARM2
|
|
| 3. |
K9003671
|
[1] |
SPOOL ASS'Y-BOOM1
|
|
| 4. |
424-00199
|
[1] |
SPOOL ASS'Y-BUCKET
|
|
| 5. |
K9001807
|
[2] |
SPOOL ASS'Y-TRAVEL
|
|
| 50. |
K9001199
|
[1] |
PLUG
|
|
| 6. |
424-00115
|
[1] |
SPOOL ASS'Y-T/S
|
|
| 62. |
S8000141
|
[1] |
O-RING
|
|
| 63. |
415-00037
|
[1] |
PLUG;ORIFICE
|
|
| 65. |
180-00403
|
[14] |
. O-RING
|
|
| 66. |
180-00402
|
[7] |
O-RING
|
|
| 7. |
S8010451
|
[20] |
O-RING
|
|
| 70. |
420-00259
|
[2] |
FOOT RELIFE VALVE
|
|
| 72. |
181-00701
|
[2] |
PLUG ASS'Y
|
|
| 74. |
S2212266
|
[40] |
BOLT
|
|
| 8. |
430-00033
|
[10] |
CAP
|
|
| 91. |
181-00646
|
[1] |
PLUG
|
|
