神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-030) - TACHOMETER GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
852 次

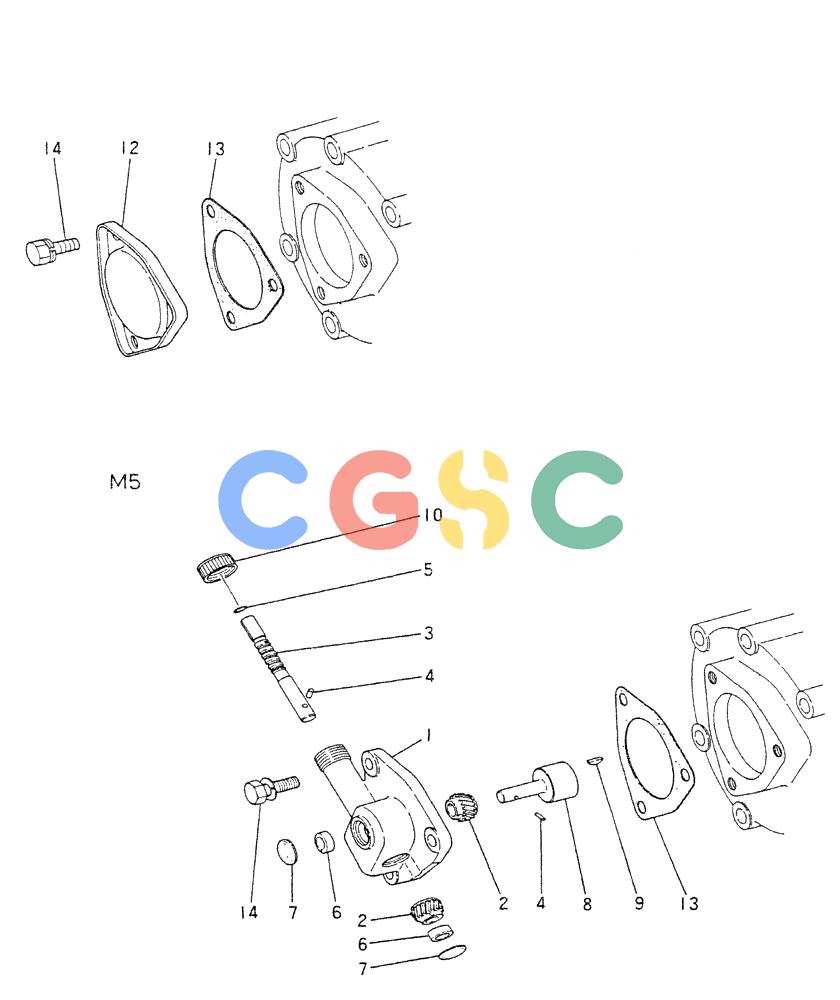

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS0A | [1] | TACHOMETER GEAR(M5) | |
| . . | 6D221CZ-KS04 | [1] | TACHOMETER GEAR(M5) | |
| . . | 6D221CT-KS0B | [1] | TACHOMETER GEAR(M3) | |
| . . | 6D221CT-K309 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221CT-KS04 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221CT-KS03 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221CT-KS01 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221C2-KS06 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221CZ-KS09 | [1] | TACHOMETER GEAR(M1) | |
| . . | 6D221CZ-KS07 | [1] | TACHOMETER GEAR(M1) | |
| 1-8. | VA3122530010 | [1] | TACHOMETER | KOBTACHOMETER DRIVE (FOR M3,M5) |
| 1. | VA3122530100 | [1] | CASE,TACHOMETER DRIVE M22 (FOR M3,M5) | |
| 2. | VAME068007 | [2] | GEAR GEAR Z=14 (FOR M3,M5) | GEAR GEAR Z=14 (FOR M3,M5) |
| 3. | VA3122530300 | [1] | SHAFT (FOR M3,M5) | |
| 4. | VAMF472537 | [2] | PIN SPRING PIN,SPG 3X18 (FOR M3,M5) | PIN SPRING PIN,SPG 3X18 (FOR M3,M5) |
| 5. | VAMH035109 | [1] | O-RING (FOR M3,M5) | |
| 6. | VA3112510402 | [2] | BUSHING (FOR M3,M5) | |
| 7. | VAMF665505 | [2] | PLUG PLUG,EXPANSION 20 (FOR M3,M5) | PLUG PLUG,EXPANSION 20 (FOR M3,M5) |
| 8. | VA3122530200 | [1] | SHAFT (FOR M3,M5) | |
| 9. | VAMS476133 | [1] | WOODRUFF KEY KEY,WOODRUFF 4X16 (FOR M3,M5) | WOODRUFF KEY KEY,WOODRUFF 4X16 (FOR M3,M5) |
| 10. | VAME039271 | [1] | CAP,TACHO DRIVE 22 (FOR M5) | |
| 12. | VA3111204100 | [1] | COVER | KOBCOVER (FOR M1) Superseded by part number: VA3111204010 |
| 13. | VA3111204200 | [1] | GASKET | KOBGASKET Superseded by part number: 132411A1 |
| 14. | VAMF300841 | [2] | SCREW | KOBBOLT,W/WSR 10X20 (FOR M1) Superseded by part number: 132461A1 |
| . . | VAMF300843 | [3] | SCREW | KOBBOLT,W/WSR 10X25 (FOR M3) Superseded by part number: 133250A1 |
| . . | VAMF300847 | [1] | BOLT | KOBBOLT,W/WSR 10X35 (FOR M1,M5) |
