久保田零件查询D21700 RANGE GEAR SHIFT FORK SPEED CHANGEEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 598 次

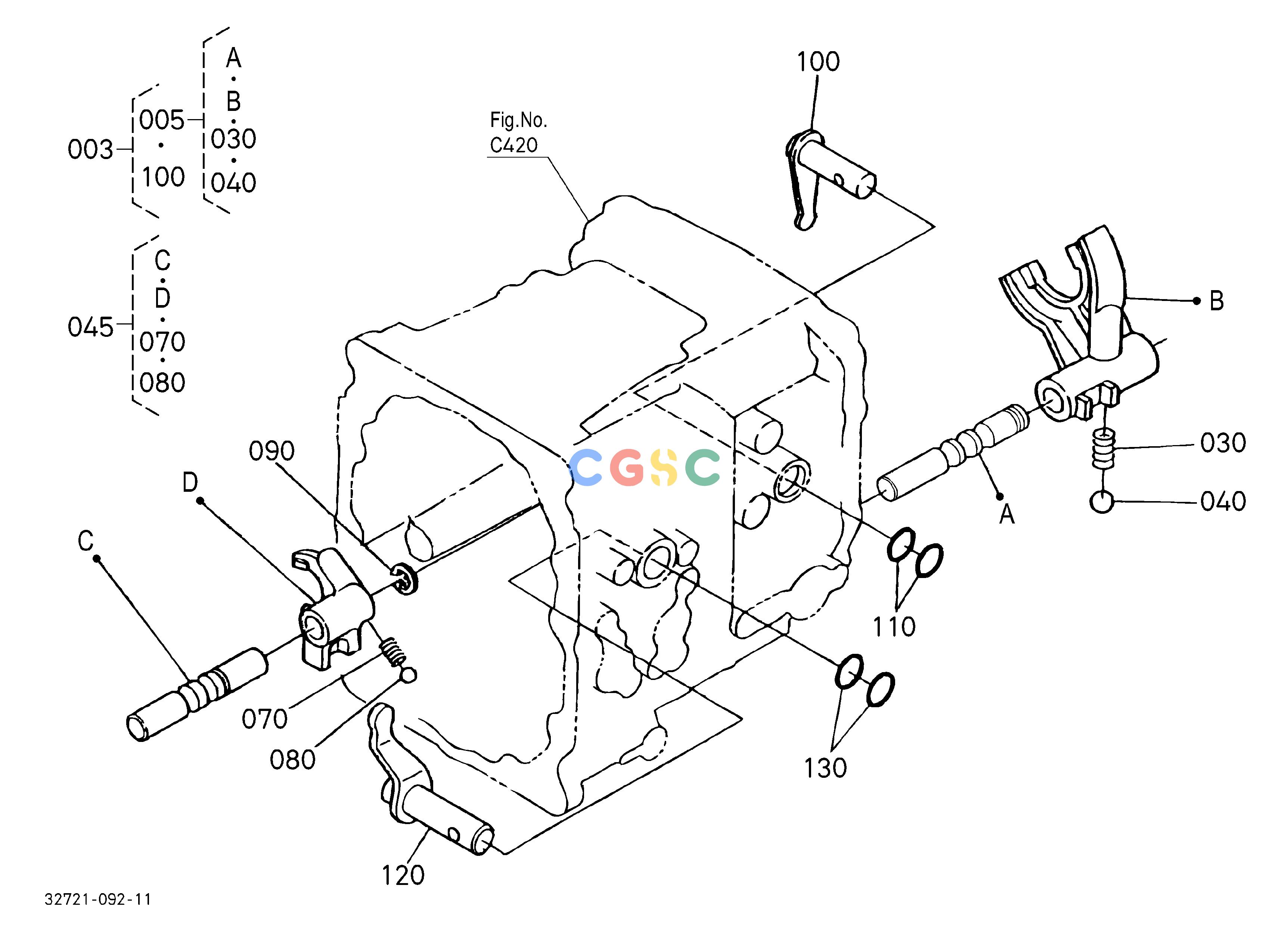

Pos.	Part No	Qty	Parts name	Comments
003.	3272197930	[1]	KIT FORK SHIFT	; =>60971 1.0560(lbs); 0.480
005.	3272118100	[1]	ASSY FORK SHIFT	; <=60970 0.4400(lbs); 0.200
005.	3272118103	[1]	ASSY FORK SHIFT	; =>60971 0.7480(lbs); 0.340
030.	6206118260	[1]	SPRING STOPPER	; <=52695 0.0044(lbs); 0.002
030.	3272118430	[1]	SPRING STOPPER	; =>52696 0.0066(lbs); 0.003
040.	0771501605	[1]	BALL	; <=52695 0.0066(lbs); 0.003
040.	0771503211	[1]	BALL	; =>52696 0.0066(lbs); 0.003
045.	3272118400	[1]	ASSY FORK SHIFT	0.6380(lbs); 0.290
070.	6206118260	[1]	SPRING STOPPER	; <=52695 0.0044(lbs); 0.002
070.	3272118430	[1]	SPRING STOPPER	; =>52696 0.0066(lbs); 0.003
080.	0771501605	[1]	BALL	; <=52695 0.0066(lbs); 0.003
080.	0771503211	[1]	BALL	; =>52696 0.0066(lbs); 0.003
090.	0461350120	[1]	CIR CLIP EXTERNAL	0.0022(lbs); 0.001
100.	6C04018510	[1]	ARM RANGE SHIFT	; <=60970 0.1650(lbs); 0.075
100.	3272118510	[1]	ARM RANGE SHIFT	; =>60971 0.3080(lbs); 0.140
110.	0481100160	[2]	O RING	; <=61394 0.0022(lbs); 0.001
110.	0481600160	[2]	O RING	; =>61395 0.0066(lbs); 0.003
120.	3272118550	[1]	ARM RANGE SHIFT	0.3300(lbs); 0.150
130.	0481100160	[1]	O RING	; <=61394 0.0022(lbs); 0.001
130.	0481600160	[2]	O RING	; =>61395 0.0066(lbs); 0.003
