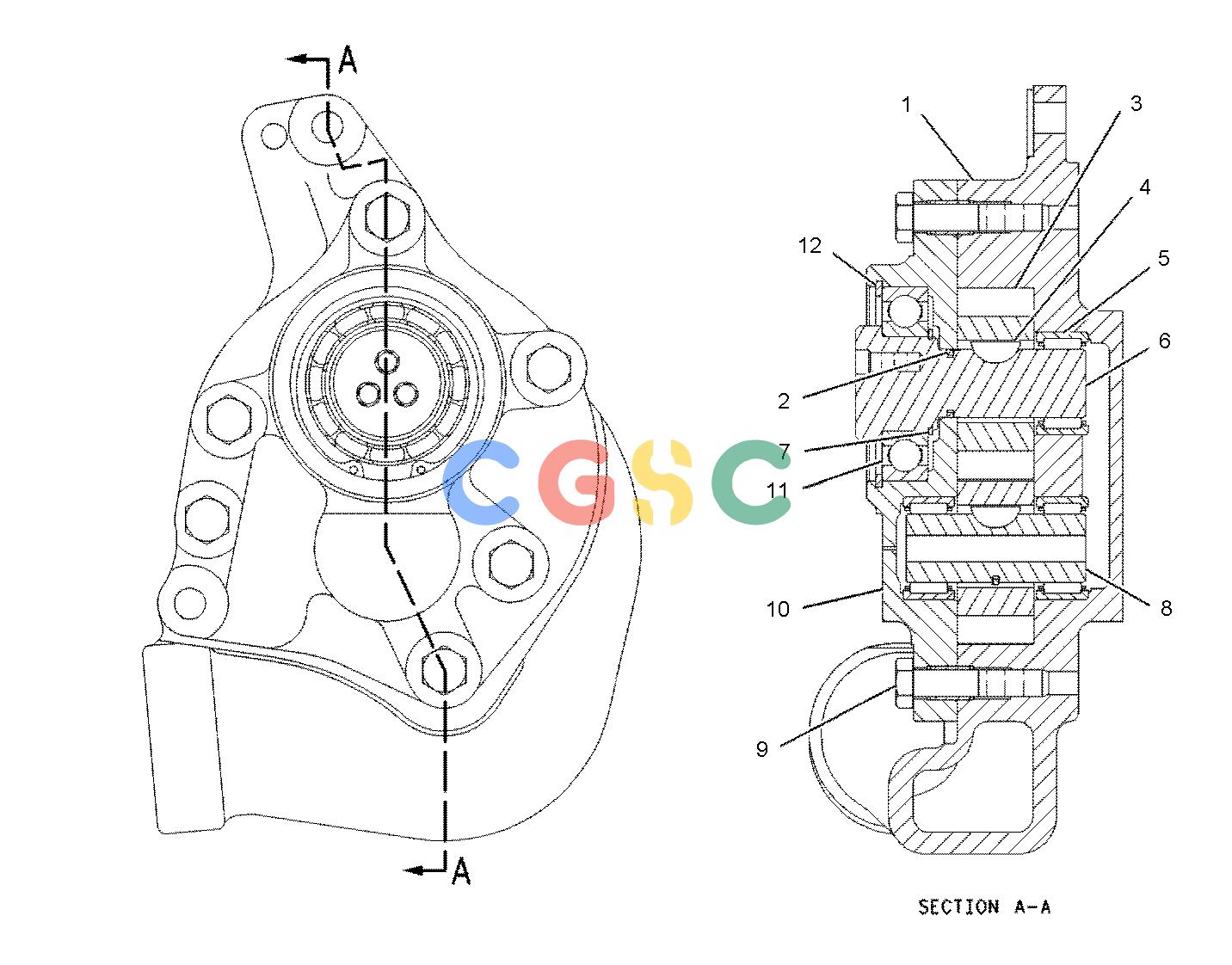

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 142-6240 | [1] | MANIFOLD | |
| 2. | 140-3662 | [1] | RING-SEAL | |
| 3. | 143-5276 | [1] | GEAR(12-TEETH) | |
| 4. | 2B-9373 | [1] | KEY-WOODRUFF | |
| 5. | 142-3350 | [3] | BEARING | |
| 6. | 143-5275 | [1] | SHAFT | |
| 7. | 6V-5200 | [1] | RING-RETAINING | |
| 8. | 143-5279 | [1] | GEAR AS-OIL PUMP(12-TEETH) | |
| 2B-9373 | [1] | KEY-WOODRUFF | ||
| 9. | 6V-4249M | [6] | BOLT(M10X1.5X50-MM) | |
| 10. | 140-3664 | [1] | COVER AS | |
| 8M-8489 | [2] | DOWEL | ||
| 11. | 1B-4109 | [1] | BEARING | |
| 12. | 2H-5549 | [1] | RING-RETAINING | |
| M | METRIC PART | |||
