久保田零件查询F11000 RANGE GEAR SHIFT LEVER ## NOTE:ORDER BY REF.No.020 NEW PART and Fig.No.F111 REF.No.050,070 NEW PARTS. SPEED CHANGEEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 574 次

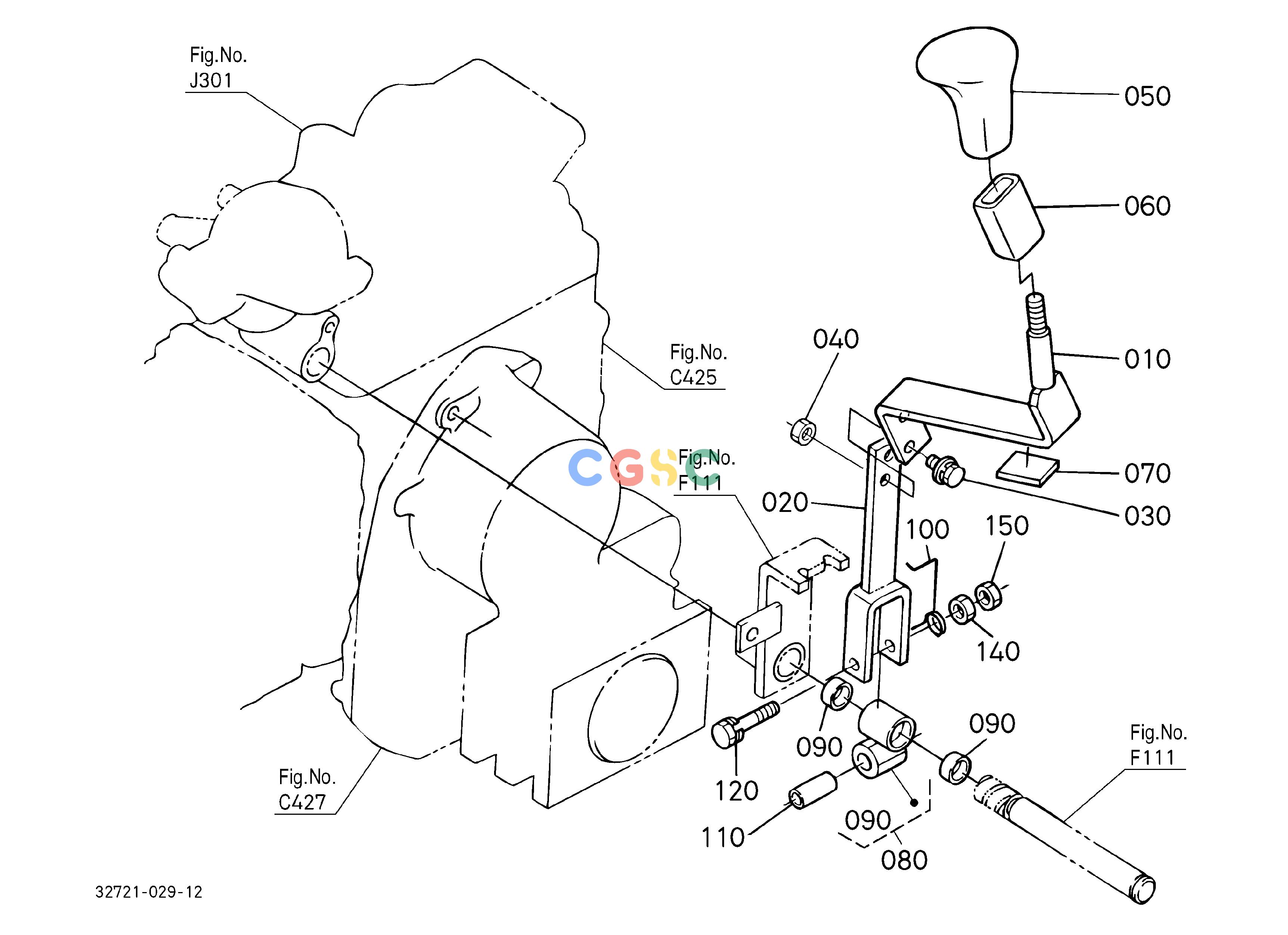

Pos.	Part No	Qty	Parts name	Comments
010.	3272142560	[1]	LEVER SUB UPPER	1.4960(lbs); 0.680
020.	3272142570	[1]	LEVER SUB UNDER	SEE NOTE; <=52611 0.6930(lbs); 0.315
020.	3272142573	[1]	LEVER SUB UNDER	; =>52612 0.8800(lbs); 0.400
030.	0112550825	[2]	BOLT	0.0396(lbs); 0.018
040.	0211250080	[2]	NUT	0.0066(lbs); 0.003
050.	TA04069820	[1]	GRIP LEVER	0.2574(lbs); 0.117
060.	3272142610	[1]	CUSHION	0.0132(lbs); 0.006
070.	6918142520	[1]	CUSHION	; <=50715 0.0110(lbs); 0.005
070.	3272142520	[1]	CUSHION SUB LEVER	; =>50716 0.0110(lbs); 0.005
080.	3272142530	[1]	ASSY BOSS	; <=61236 0.6160(lbs); 0.280
080.	3272142532	[1]	ASSY BOSS	; =>61237 0.4356(lbs); 0.198
090.	0851101810	[2]	BUSH	0.0110(lbs); 0.005
100.	3756042370	[1]	SPRING SUB	0.0330(lbs); 0.015
110.	3272142660	[1]	COLLAR	0.0308(lbs); 0.014
120.	0112350855	[1]	BOLT	0.0440(lbs); 0.020
140.	0215650080	[1]	NUT	0.0088(lbs); 0.004
150.	0211250080	[1]	NUT	0.0066(lbs); 0.003
