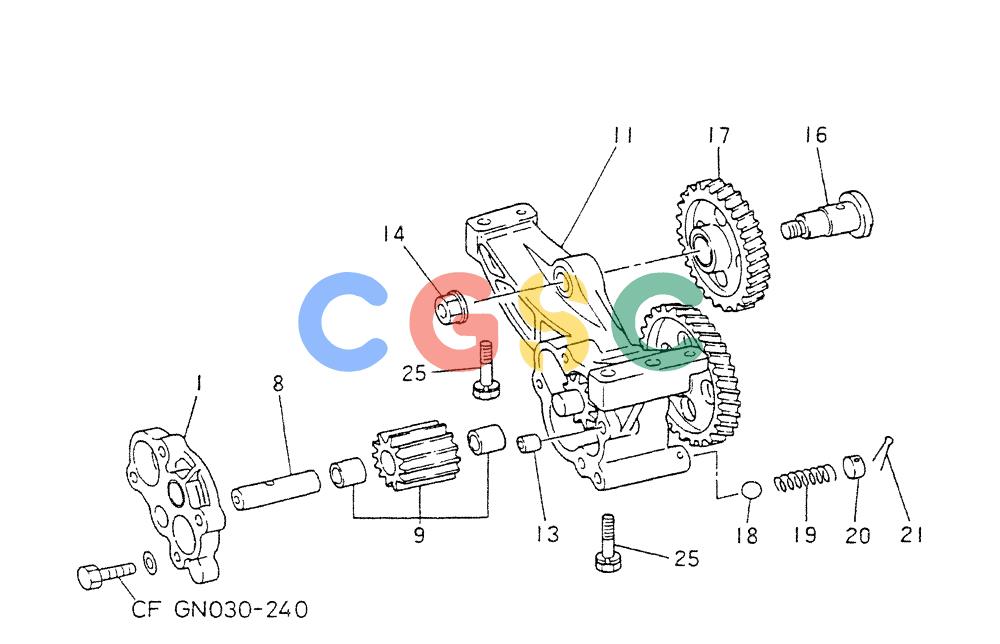

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (02-005) - OIL PUMP & GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
934 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS0B | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| . . | 6D221CT-KS09 | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| . . | 6D2E1CT-KS04 | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| . . | 6D221CT-KS03 | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| . . | 6D221CT-KS01 | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| . . | 6D22Z AIL | [1] | OIL PUMP & GEAR TRAIN (M0) | |
| 1-21. | VAME054157 | [1] | ENGINE OIL PUMP | KOBOIL PUMP ASSY Superseded by part number: 133226A1 |
| 1. | VAME054373 | [1] | COVER ASSY COVER ASSY | COVER ASSY COVER ASSY |
| 8. | VA3123500501 | [1] | SHAFT | KOBSHAFT,OIL PUMP DRIVEN |
| 9. | VA3123500044 | [1] | GEAR SET | KOBDRIVEN GEAR ASSY Z=9 |
| 11. | VAME054363 | [1] | CASE & GEAR ASSY OIL, PUMP CASE & GEAR ASSY Z=53.9 | CASE & GEAR ASSY OIL, PUMP CASE & GEAR ASSY Z=53.9 |
| 13. | VAMS471107 | [1] | BUSHING | KOBBUSHING,KNOCK |
| 14. | VAMH004069 | [1] | NUT | SMNUT,FLANGE |
| 16. | VAME054372 | [1] | SHAFT,IDLER GEAR | |
| 17. | VAME054369 | [1] | IDLER GEAR ASSY Z=47 | |
| 18. | VAMF540020 | [1] | BALL | KOBBALL 5/8 |
| 19. | VA3093615200 | [1] | SPRING | KOBSPRING,VALVE Superseded by part number: 133235A1 |
| 20. | VA3093615300 | [1] | SEAT | KOBSEAT,VALVE |
| 21. | VAMF472086 | [1] | PIN | KOBPIN,SPLIT 4X35 Superseded by part number: 133237A1 |
| 25. | VAMF300850 | [3] | BOLT | KOBBOLT,M/WSR 10X45 |
