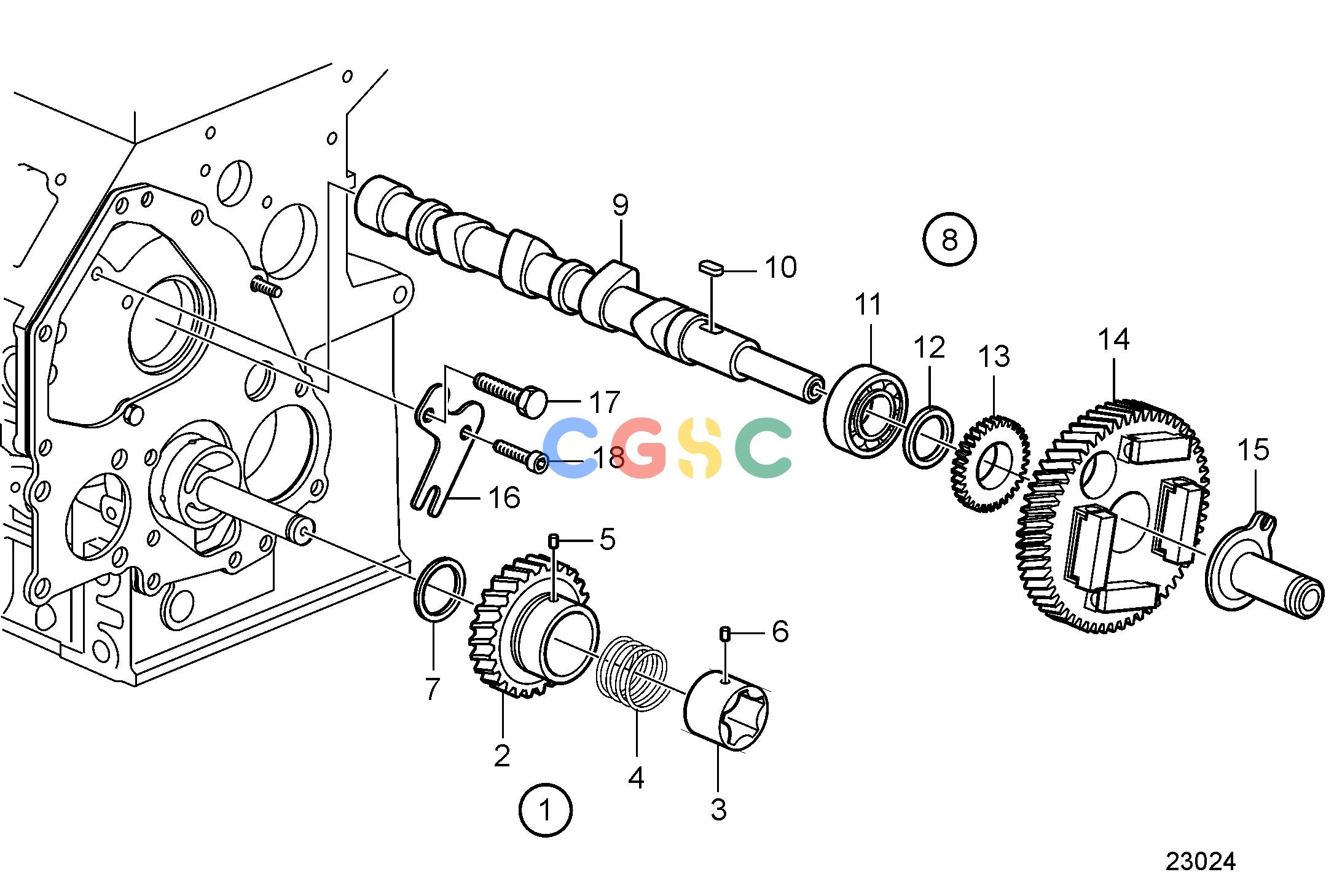

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FEngineCamshaft and GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861987
|
[1] |
Gear
|
Replaced by 21541017
|
| 1. |
21541017
|
[1] |
Oil pump
|
|
| 2. |
|
|
|
|
| 3. |
3583722
|
[1] |
Vane
|
Replaced by 1 pc complete oil pump gear 3580569
|
| 3. |
3580569
|
[1] |
Gear
|
|
| 4. |
861988
|
[1] |
Spring
|
|
| 5. |
3583723
|
[3] |
Locating pin
|
|
| 6. |
3583721
|
[3] |
Bushing
|
|
| 7. |
861986
|
[1] |
Thrust washer
|
|
| 8. |
3809655
|
[1] |
Camshaft
|
|
| 9. |
|
|
|
|
| 10. |
3812129
|
[1] |
Key
|
|
| 11. |
861984
|
[1] |
Bearing
|
|
| 12. |
3812125
|
[3] |
Spacer
|
|
| 13. |
861982
|
[1] |
Gear
|
|
| 14. |
861980
|
[1] |
Gear
|
|
| 15. |
861985
|
[1] |
Sliding sleeve
|
|
| 16. |
861991
|
[1] |
Plate
|
|
| 17. |
861994
|
[1] |
Screw
|
|
| 18. |
861526
|
[1] |
Screw
|
|
