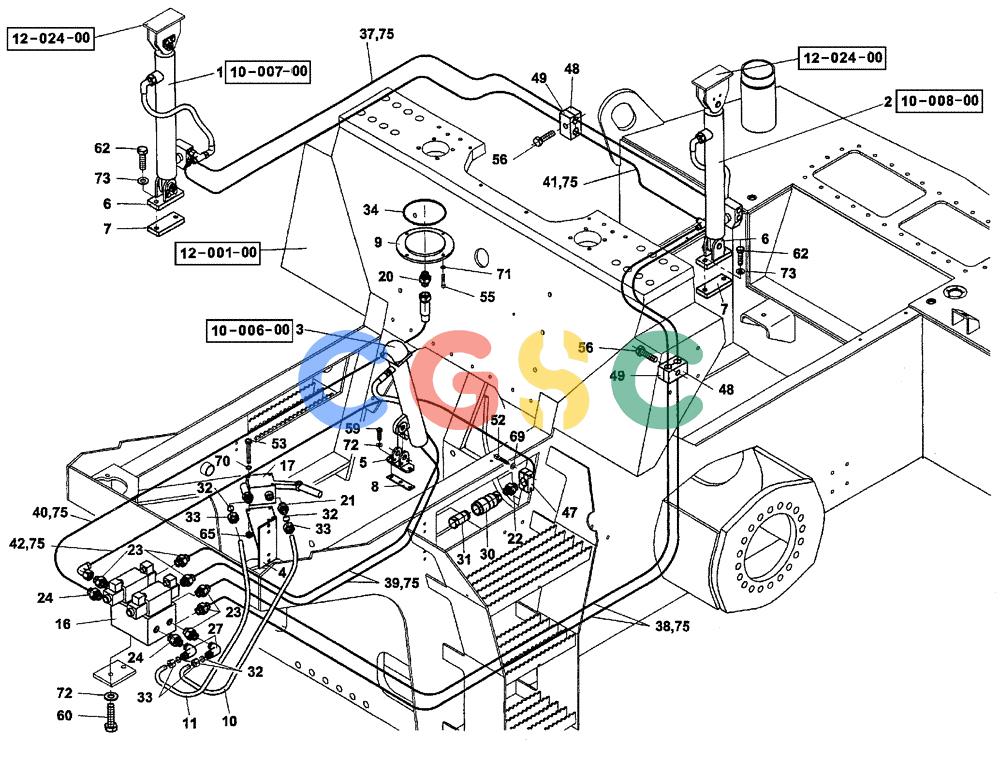

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (10-005-01[01]) - HYDRAULIC CIRCUIT- OPERATOR'S COMPARTMENT TILTING CONTROL AND ENGINE HOOD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103127 | [1] | SERVICE KIT | STA |
| 2. | ND104300 | [1] | CYLINDER | STA |
| 3. | ND103132 | [1] | SERVICE KIT | STA |
| 4. | ND103158 | [1] | SUPPORT | STA |
| 5. | ND103169 | [1] | SUPPORT | STA |
| 6. | ND030720 | [2] | SUPPORT | STA |
| 7. | ND098391 | [2] | NUT | STA |
| 8. | ND104416 | [2] | WASHER | STA |
| 9. | ND105770 | [1] | COVER | STA |
| 10. | ND104433 | [1] | RIGID TUBE | STA400mm |
| 11. | ND104434 | [1] | RIGID TUBE | STA400mm |
| 12. | ND103195 | [1] | FLEXIBLE HOSE | STA |
| 13. | ND103196 | [1] | FLEXIBLE HOSE | STA |
| 16. | ND067803 | [1] | BLOCK | STA |
| 17. | ND067870 | [1] | HYDRAULIC PUMP | STA |
| 20. | ND062200 | [1] | HYD CONNECTOR | STA |
| 21. | ND062198 | [1] | HYD CONNECTOR | STA |
| 22. | ND062220 | [1] | HYD CONNECTOR | STA |
| 23. | ND062233 | [6] | HYD CONNECTOR | STA |
| 24. | ND062234 | [2] | HYD CONNECTOR | STA |
| 27. | ND062414 | [2] | ELBOW | STA |
| 30. | ND062280 | [1] | QUICK MALE COUPLING | STA Superseded by part number: ND112941 |
| 31. | ND062386 | [1] | COVER | STA |
| 32. | ND062038 | [4] | SEAL | STA |
| 33. | ND062045 | [4] | NUT | STA |
| 34. | ND079809 | [1] | RING | STA |
| 37. | ND102876 | [1] | HOSE,750.00 mm | STA |
| 38. | ND102877 | [1] | HOSE,1200.00 mm | STA |
| 39. | ND102879 | [1] | HOSE,350.00 mm | STA |
| 40. | ND061562 | [1] | FLEXIBLE HOSE | STA910mm |
| 41. | ND102875 | [1] | HOSE,750.00 mm | STA |
| 42. | ND102097 | [1] | HOSE | STA800mm |
| 47. | ND064813 | [1] | CLAMP | STA |
| 48. | ND064851 | [2] | SLEEVE | STA |
| 49. | ND064807 | [2] | CLAMP | STA |
| 52. | ND024234 | [2] | BOLT | STAM6 x 30 |
| 53. | ND021179 | [3] | BOLT | STAM6 x 70 |
| 55. | ND024244 | [4] | BOLT | STAM8 x 20 |
| 56. | ND021184 | [2] | BOLT | STAM8 x 35 |
| 59. | ND021302 | [2] | BOLT | STAM10 x 25 |
| 60. | ND021303 | [2] | BOLT | STAM10 x 30 |
| 62. | ND021210 | [4] | BOLT | STAM12 x 50 |
| 65. | ND021847 | [3] | NUT | STAM6 |
| 69. | ND029248 | [2] | WASHER | STAID 6,4 |
| 70. | ND029309 | [3] | SPRING WASHER | STAID 6,1 |
| 71. | ND035940 | [4] | SPRING WASHER | STAID 8 |
| 72. | ND035941 | [4] | WASHER | STAID 10 |
| 73. | ND035942 | [4] | WASHER | STAID 12 |
