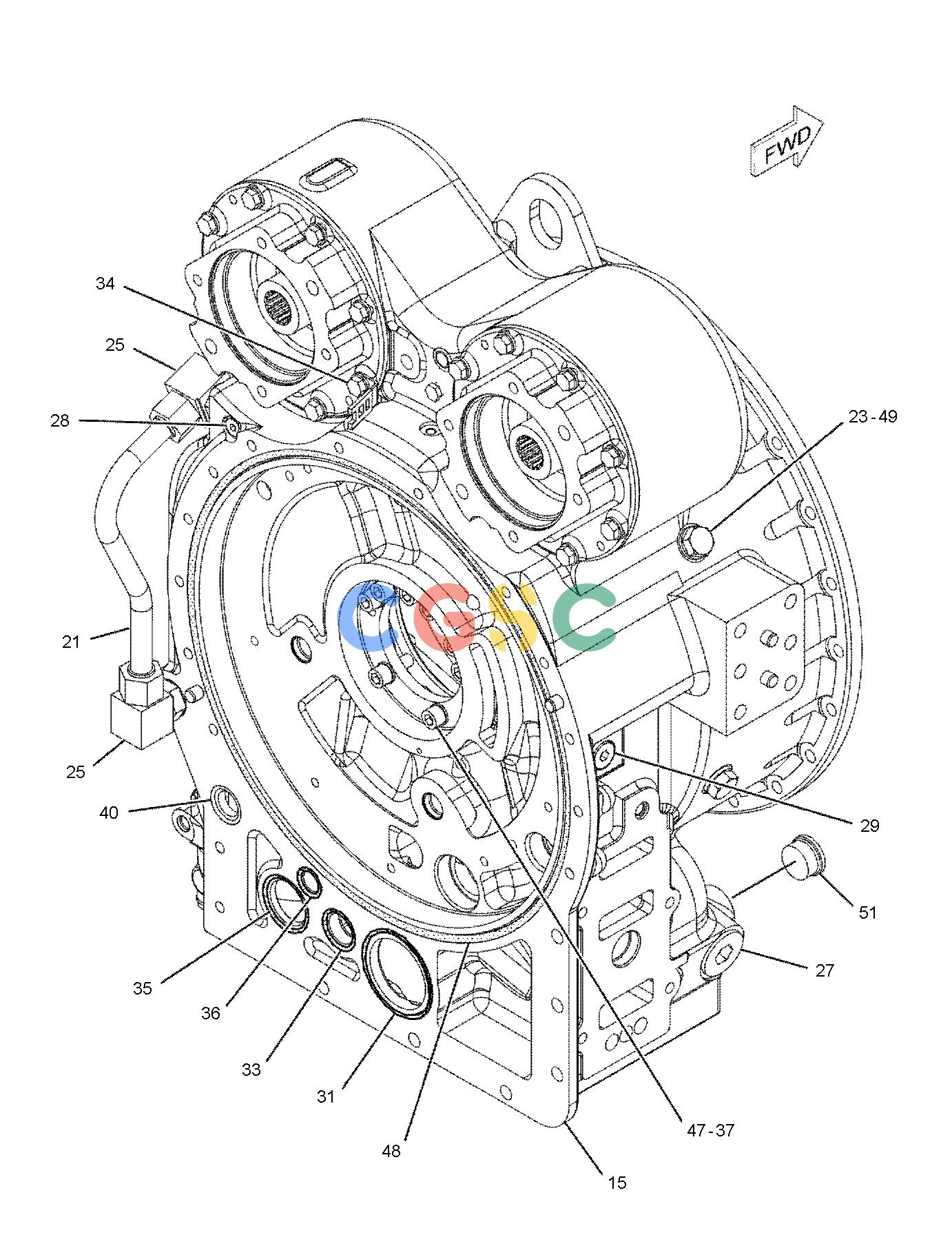

卡特零件查询（725） 250-2293: DRIVE GP-PUMP
广数供应链运营团队, 14 02月, 2025，浏览：
420 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-5448 | [4] | CUP-BEARING | |
| 2. | 7K-5449 | [4] | CONE-BEARING | |
| 3. | 2K-2939 | [2] | SEAL-O-RING | |
| 4. | 2R-0098 | [1] | SEAL-O-RING | |
| 5. | 4L-4986 | [1] | LOCKNUT(7/8-14-THD) | |
| 6. | 7S-3036 | [2] | RING-SEAL | |
| 7. | 8M-7160 | [1] | MAGNET | |
| 8. | 102-4232 | [1] | BEARING AS-ROLLER | |
| 9. | 129-1609 | [1] | SEAL-O-RING | |
| 10. | 135-0332 | [1] | GEAR-IDLER(62-TEETH) | |
| 11. | 135-0333 | [2] | GEAR-PUMP DRIVE(51-TEETH) | |
| 12. | 138-3114 | [2] | ADAPTER-PUMP | |
| 13. | 138-3116 | [1] | SHAFT-IDLER | |
| 14. | 139-1537 | [1] | FILTER ELEMENT AS-OIL(ULTRA HIGH EFFICIENCY) | |
| 15. | 139-9112Y | [1] | HOUSING GP-TORQUE CONVERTER | |
| 16. | 140-2186 | [1] | PLATE | |
| 17. | 140-3133 | [1] | PLATE-SEPARATOR | |
| 18. | 140-7544 | [2] | SHIM PACK(INCLUDES 12-SHIMS) | |
| 19. | 140-9494 | [1] | TUBE AS | |
| 20. | 140-9852 | [1] | COVER-FILTER | |
| 21. | 140-9855 | [1] | TUBE AS | |
| 22. | 165-8318 | [1] | RETAINER | |
| 23. | 191-3519 | [4] | BOLT-SPECIAL | |
| 24. | 135-3198 | [1] | SEAL-LIP TYPE | |
| 25. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 26. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 27. | 183-7262 | [1] | PLUG AS | |
| | 9S-8010 | [1] | PLUG | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| 28. | 162-0177 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 29. | 164-5619 | [1] | PLUG AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 30. | 2D-8009 | [1] | SEAL-O-RING | |
| 31. | 2H-3931 | [1] | SEAL-O-RING | |
| 32. | 2S-2251 | [1] | SEAL-O-RING | |
| 33. | 3H-1461 | [1] | SEAL-O-RING | |
| 34. | 4P-7429 | [1] | CLIP(LADDER) | |
| 35. | 5F-8000 | [1] | SEAL-O-RING | |
| 36. | 5H-2767 | [1] | SEAL-O-RING | |
| 37. | 5P-7213 | [8] | WASHER-HARD(13.5X20.5X2-MM THK) | |
| 38. | 5P-7530 | [1] | SEAL-O-RING | |
| 39. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 6F-6673 | [1] | SEAL-O-RING | |
| 41. | 6V-1820M | [16] | BOLT(M10X1.5X30-MM) | |
| 42. | 6V-3668M | [4] | BOLT(M12X1.75X30-MM) | |
| 43. | 6V-4248M | [6] | BOLT(M10X1.5X25-MM) | |
| 44. | 6V-5839 | [22] | WASHER(11X21X2.5-MM THK) | |
| 45. | 8M-5010 | [1] | SEAL-O-RING | |
| 46. | 8T-0207M | [1] | BOLT(M16X2X100-MM) | |
| 47. | 8T-3957M | [8] | BOLT-SOCKET HEAD(M12X1.75X30-MM) | |
| 48. | 8T-4811 | [1] | SEAL-O-RING | |
| 49. | 9X-8268 | [5] | WASHER(17.5X30X3.5-MM THK) | |
| 50. | 167-6914 | [1] | STUD-TAPERLOCK | |
| 51. | 148-8406 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-9334 | [1] | PLUG(1-5/16-12-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
