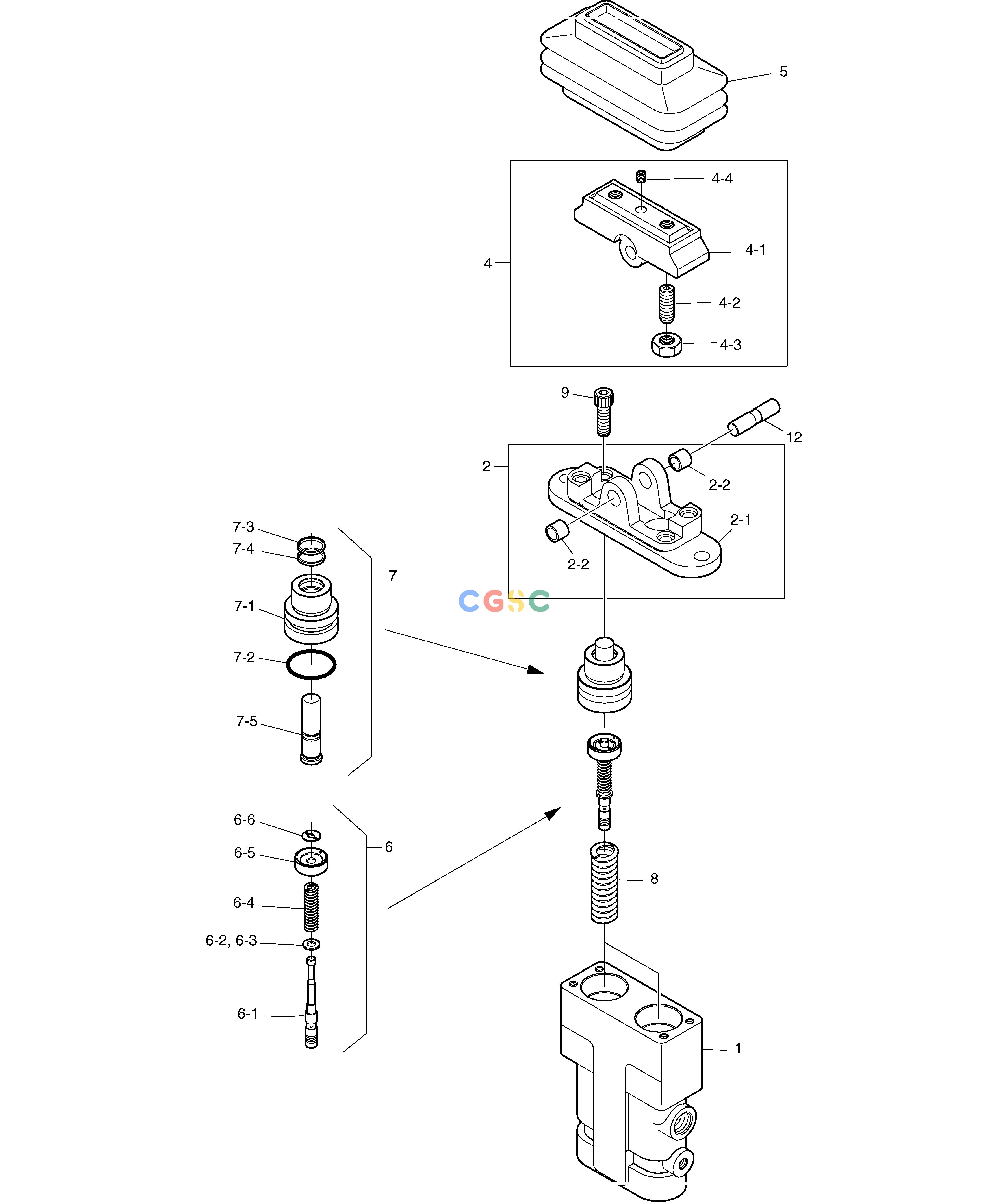

斗山零件查询PEDAL VALVE - TWO WAY DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
746 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017382A
|
[1] |
PEDAL VALVE
|
|
| 1. |
NA00342
|
[1] |
CASING
|
|
| 12. |
354-00003
|
[1] |
SHAFT;CAM
|
|
| 2. |
K9002934
|
[1] |
COVER KIT
|
|
| 2-1. |
NA00392
|
[1] |
COUVERCLE
|
|
| 2-2. |
2110-1184D7
|
[2] |
BUSH
|
|
| 4. |
K9003465
|
[1] |
CAM KIT
|
|
| 4-1. |
NA00299
|
[1] |
. CAM
|
|
| 4-2. |
NA01071
|
[2] |
. SCREW;SET
|
|
| 4-3. |
S4014633
|
[2] |
. NUT
|
|
| 4-4. |
S3523601
|
[1] |
. SCREW;SET M8X12
|
|
| 5. |
160-00008
|
[1] |
BELLOW
|
|
| 6. |
402-00036
|
[2] |
SPOOL ASS`Y
|
|
| 6-1. |
NA01161
|
[1] |
. SPOOL
|
|
| 6-2. |
NA01133
|
[1] |
. SHIM
|
|
| 6-3. |
NA01111
|
[1] |
. SEAT;SPRING
|
|
| 6-4. |
NA01182
|
[1] |
. SPRING
|
|
| 6-5. |
NA01111
|
[1] |
. SEAT;SPRING
|
|
| 6-6. |
NA01233
|
[1] |
. STOPPER
|
|
| 7. |
1.428-00241A
|
[2] |
PLUG ASS`Y
|
|
| 7-1. |
NA00843
|
[1] |
PLUG
|
|
| 7-2. |
NA00643
|
[1] |
. O-RING
|
|
| 7-3. |
NA01082
|
[1] |
. SEAL
|
|
| 7-4. |
NA01097
|
[1] |
. SEAL;ROD
|
|
| 7-5. |
NA01013
|
[1] |
ROD;PUSH
|
|
| 8. |
K9002935
|
[2] |
SPRING
|
|
| 9. |
S2209261
|
[2] |
BOLT
|
|
